Schneider Electric LULC033 TeSys U Modbus Communication Module 24 V DC Motor Starter Module

Name: Schneider Electric LULC033 TeSys U Modbus Communication Module 24 V DC Motor Starter Module
Brand: Schneider Electric
SKU: LULC033
Price: 143.05 USD
Availability: OutOfStock
Rating: 5.0 (10 reviews)

Brand: Schneider Electric

Reference No: LULC033

Catalog No: LULC033

Tariff Code (HS): 853650

Communication: Modbus RTU, RS485, RJ45

Stock: 0

Delivery time: 30 business day(s)

Shipping Origin: Türkiye EXW

$143.05

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

Description

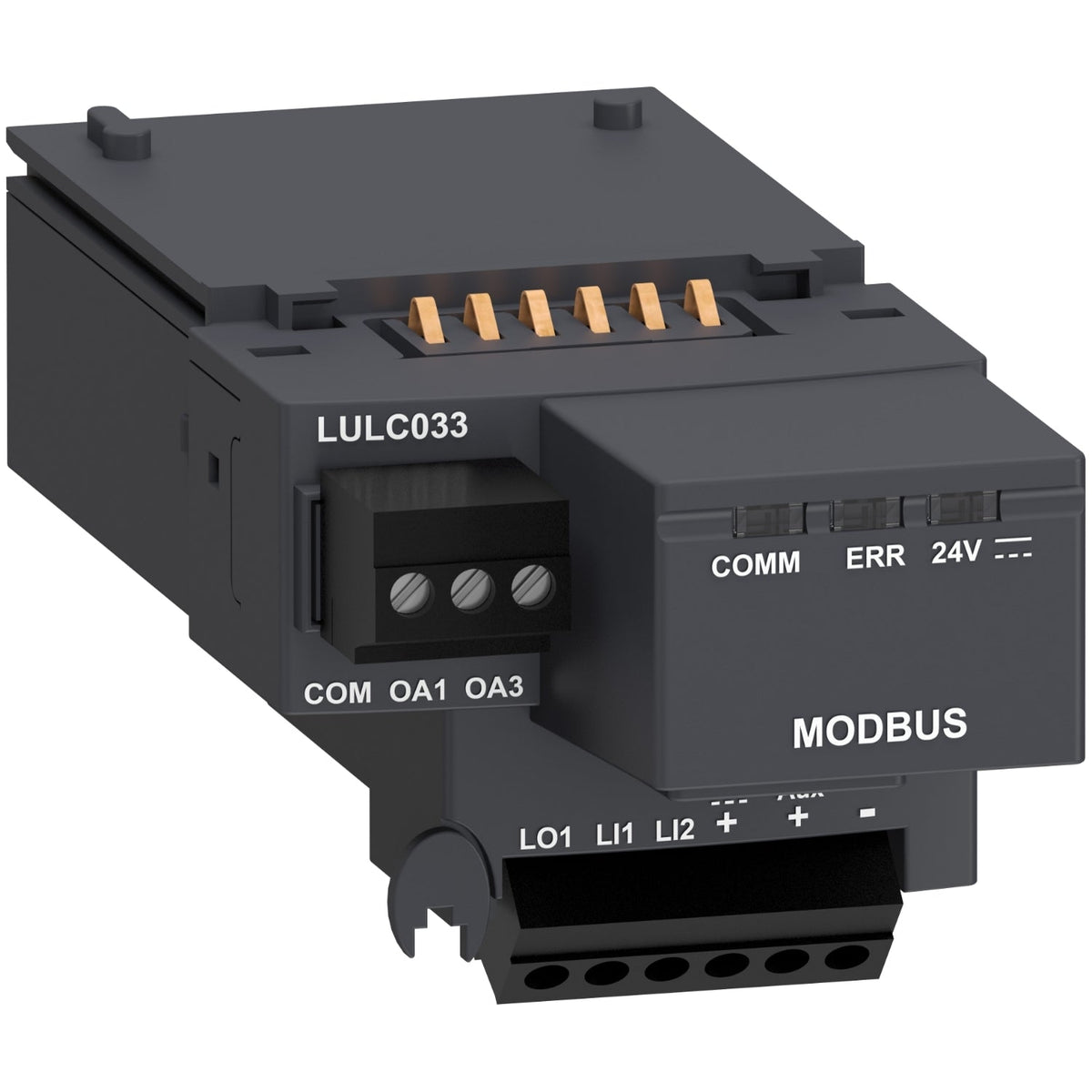

The Schneider Electric LULC033 is a TeSys U Modbus RTU communication module that plugs into LUB120, LUB320, or LUB380 advanced power bases fitted with a 24 V DC (BL-type) control unit. It provides an RJ45 port for the Modbus network, two configurable 24 V DC logic inputs, one 24 V DC logic output, and a local 3-point terminal block for the starter.

Technical Specifications

Reference	LULC033
Brand	Schneider Electric
Range	TeSys U
GTIN	3389119202091
Device short name	LUL
Product or component type	Communication module
Product compatibility	LUCA, LUCB, LUCC, LUCD, LUCL, LUCM control units
Bus type	Modbus
Physical interface	RS485 multidrop
Cable connector type	RJ45, front panel
Communication port protocol	Modbus RTU
Addressing	0-31
Transmission rate	19200 bit/s
Number of inputs	2 (configurable, 24 V DC)
Number of outputs	2 (dedicated to starter-controller coil) + 1
Us rated supply voltage	24 V DC
Output current	<= 500 mA
Protection type	GG fuse, 1 A
Local signalling	3 LEDs, front panel
IP degree of protection	IP20 (IEC 60529)
Ambient air temperature for operation	-25...55 C
Net weight	0.08 kg
Country of origin	FR

Selection Notes

Choose the LULC033 only when the starter-controller runs a 24 V DC (BL-type) control unit, since the module's power stage and logic I/O are matched to that coil voltage; for 24 V DC CANopen networks instead of Modbus, the equivalent slot is filled by the LULC08.

Technical Details

Short Description

TeSys U Modbus RTU communication module, RJ45, 24 V DC, for LUB advanced power bases.

Mounting Type

Plug-in, front side

Protection Type

IP20

Catalog No

LULC033

Delivery Date (Days)

30 days

Model Number

LUL

Tariff Code

853650
