Schneider Electric LUFV2 TeSys U Function Module Motor Load Indication 4-20 mA 24 V DC Motor Starter Module

% $-112.45
Schneider Electric LUFV2 TeSys U function module - 4-20 mA motor load indication
Schneider Electric LUFV2 TeSys U function module - 4-20 mA motor load indication

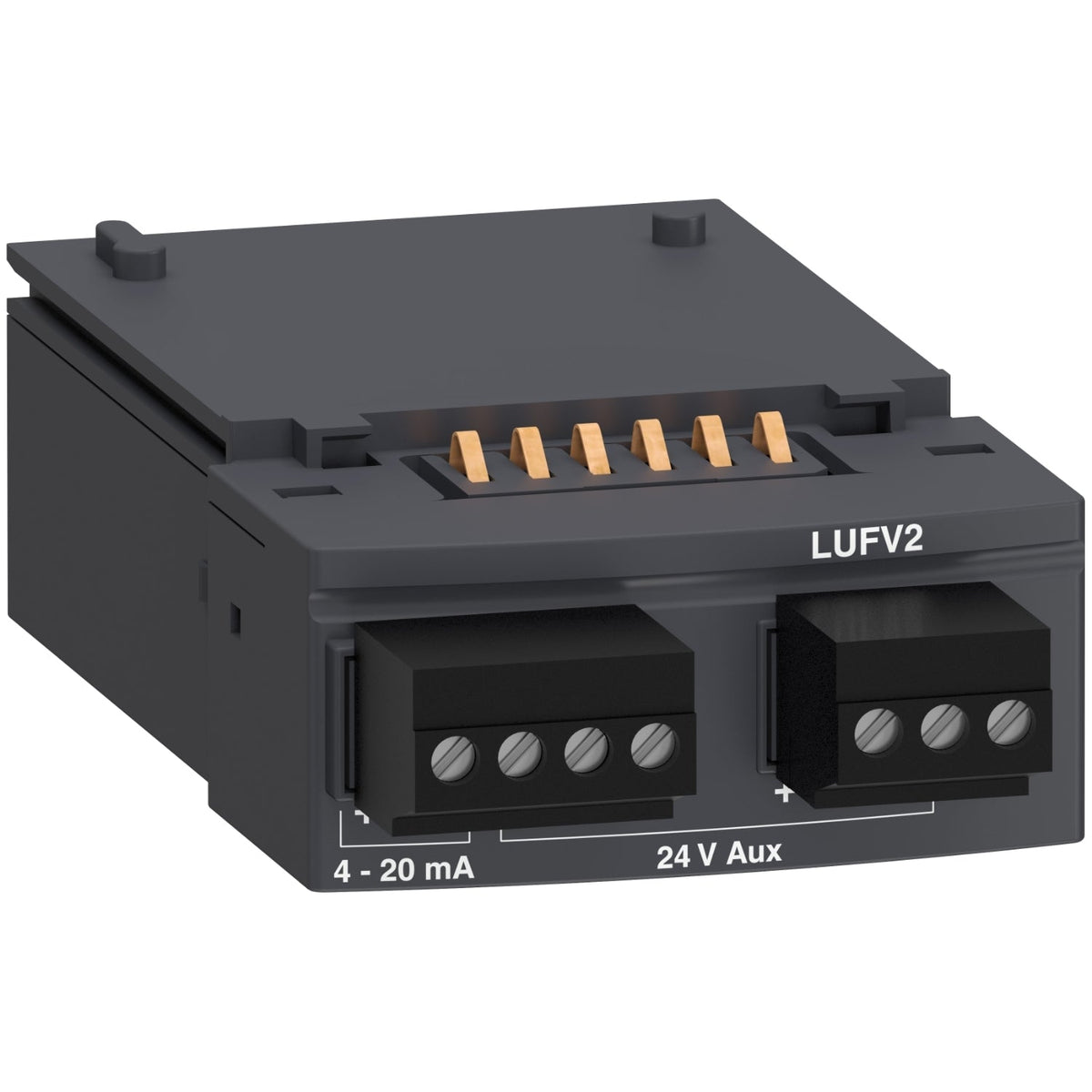

Schneider Electric LUFV2 TeSys U Function Module Motor Load Indication 4-20 mA 24 V DC Motor Starter Module

Brand: Schneider Electric
Reference No: LUFV2
Catalog No: LUFV2
Tariff Code (HS): 853650
Communication: 4-20 mA analogue output
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$112.45

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric LUFV2 is a TeSys U function module that plugs into LUB120, LUB320, or LUB380 advanced power bases to monitor motor load. It outputs a 4-20 mA signal proportional to the average-current-to-Ir ratio, into a 100 ohm typical (500 ohm max) load impedance, and is powered from an external 24 V DC supply.

Technical Specifications

Reference LUFV2
Brand Schneider Electric
Range TeSys U
GTIN 3389110365498
Device short name LUF
Product or component type Function module
Product compatibility LUCB, LUCC, LUCD, LUCM control units
Main function Indication of motor load
Us rated supply voltage 24 V DC
Analogue output current 4-20 mA
Type of output signal I average/Ir ratio 0-2 (LUCB, LUCD) or 0-3 (LUCC)
Load impedance 100 ohm typical, <= 500 ohm
Measurement accuracy +/- 10% with multifunction control unit, +/- 6% with advanced control unit
Connections - terminals Screw clamp, 0.14-1 mm2
Net weight 0.05 kg
Country of origin FR

Selection Notes

The LUFV2 is the module to specify when a PLC or SCADA system needs a continuous analogue picture of motor loading rather than a simple run/fault contact; its 4-20 mA output scales directly with the control unit's current-setting ratio, so the PLC can trend load trend and flag an approaching overload before the thermal protection trips.

Technical Details

Short Description
TeSys U function module, 4-20 mA motor load indication, 24 V DC, for LUB advanced bases.
Mounting Type
Plug-in, front side
Catalog No
LUFV2
Delivery Date (Days)
30 days
Model Number
LUF
Tariff Code
853650
