Schneider Electric LUCA38BL TeSys U Standard Control Unit 9.5-38 A 24 V DC Motor Starter Module

% $-140.01

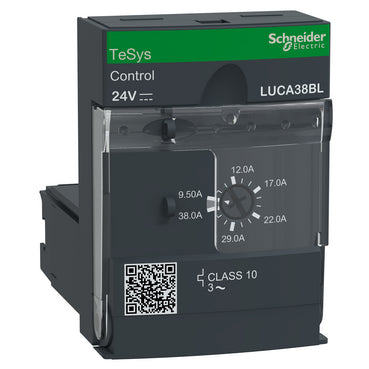

Schneider Electric LUCA38BL TeSys U control unit - 9.5-38A 24V DC motor starter module
Schneider Electric LUCA38BL TeSys U control unit - 9.5-38A 24V DC motor starter module

Schneider Electric LUCA38BL TeSys U Standard Control Unit 9.5-38 A 24 V DC Motor Starter Module

Brand: Schneider Electric
Reference No: LUCA38BL
Series: TeSys Ultra
Tariff Code (HS): 853650
Rated Current: 38 A
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$140.01

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric LUCA38BL is a TeSys U standard control unit providing adjustable thermal-magnetic motor protection from 9.5 to 38 A. Plugged into a LUB38 power base, it forms a complete starter-controller with Class 10 overload tripping, phase-failure sensing, and earth-fault detection for 3-phase motors up to 18.5 kW at 400 V, controlled from a 24 V DC supply.

Technical Specifications

Reference LUCA38BL
Brand Schneider Electric
Range TeSys U
Product or Component Type Standard control unit
Device Application Motor control, motor protection
Rated Motor Current Adjustment Range 9.5-38 A
Thermal Overload Class Class 10
Tripping Threshold 14.2 x Ir +/- 20%
Phase Failure Sensitivity Yes
Max Motor Power 18.5 kW at 400 V, 18.5 kW at 500 V, 22 kW at 690 V
Control Circuit Voltage (Uc) 24 V DC
Rated Operational Voltage (Ue) 690 V AC
Utilisation Category AC-43
Rated Insulation Voltage (Ui) 690 V
Fixing Mode Plug-in (front face)
Dimensions (W x H x D) 45 x 66 x 60 mm
Net Weight 0.135 kg
IP Degree of Protection IP20 (terminals), IP40 (outside connection zone)
Compatible Power Bases LUB38, LUB380

Certifications & Standards

  • CE
  • UL
  • CSA
  • IEC 60947-6-2
  • UL 60947-4-1
  • CSA C22.2 No 60947-4-1

Selection Notes

The LUCA38BL is the only control unit covering 32-38 A, so it fits exclusively on the LUB38 power base rather than the LUB12/LUB32. Remember that the LUB38 base itself carries a lower 25 kA breaking capacity at 440 V than the smaller bases, so the extra current headroom comes with reduced short-circuit margin. It currently ships only with a 24 V DC coil; no 24 V AC or 110-240 V equivalent is listed.

Technical Details

Short Description
TeSys U standard control unit, 9.5-38 A adjustable, Class 10, 24 V DC coil
Rated Current (Ampere)
38 A
Mounting Type
Plug-in (front face)
Protection Type
IP20 (terminals), IP40 (outside connection zone)
Delivery Date (Days)
30 days
Model Number
LUCA
Tariff Code
853650
