Schneider Electric LUA1C20 TeSys U Auxiliary Signalling Contacts 2 NO Auxiliary Contact Block

% $-15.66

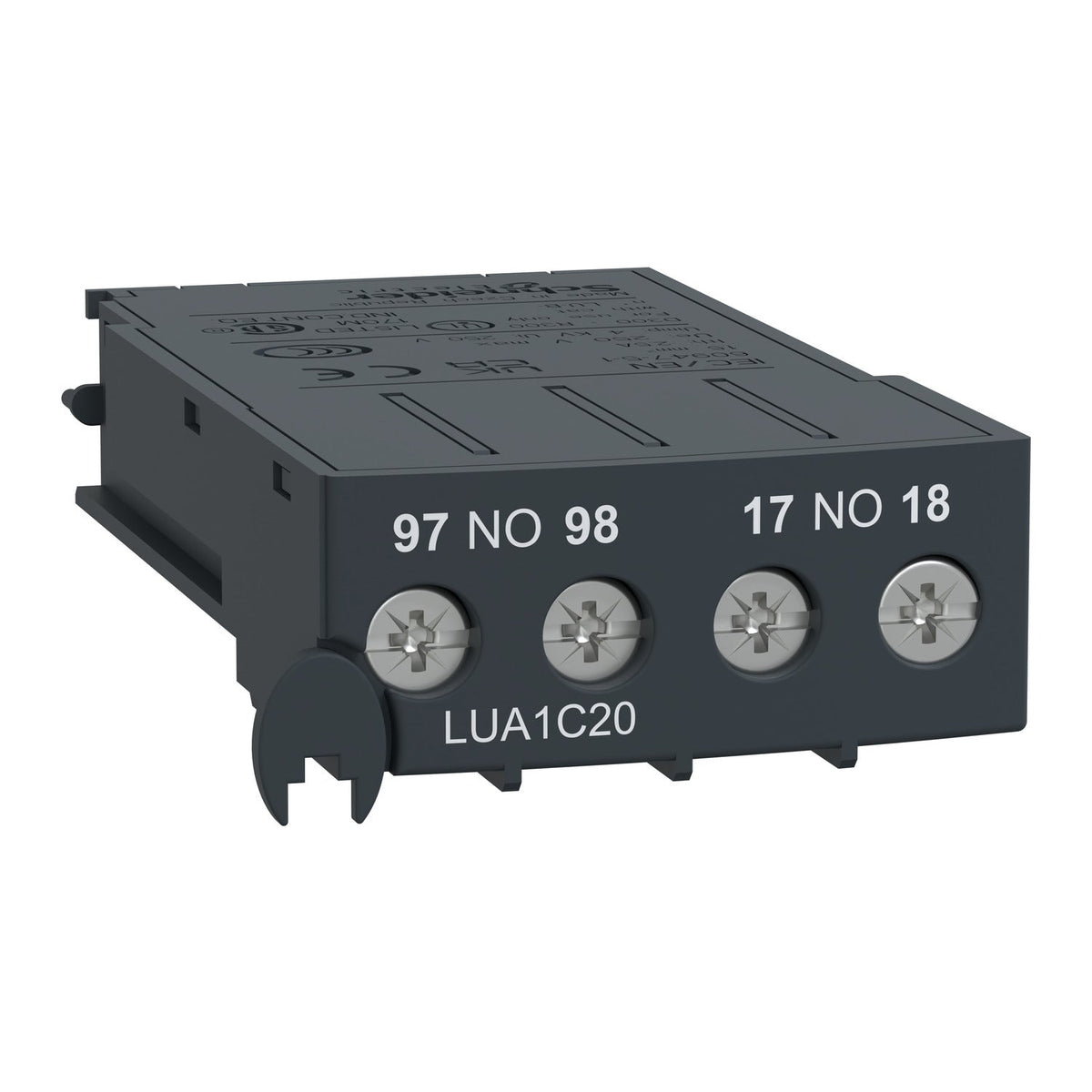

Schneider Electric LUA1C20 TeSys U auxiliary contact block, 2 NO
Schneider Electric LUA1C20 TeSys U auxiliary contact block, 2 NO

Schneider Electric LUA1C20 TeSys U Auxiliary Signalling Contacts 2 NO Auxiliary Contact Block

Brand: Schneider Electric
Reference No: LUA1C20
Catalog No: LUA1C20
Tariff Code (HS): 853650
Rated Current: 2.5 A
Rated Voltage: 250 V AC
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$15.66

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric LUA1C20 is a TeSys U auxiliary signalling contact block with a 2 NO contact composition, rated up to 5 A at 250 V AC/DC. It inserts into the dedicated slot of a TeSys U power base and provides fault signalling (SD contact) and ready-position indication (OF contact), both wired as normally-open.

Technical Specifications

Reference LUA1C20
Brand Schneider Electric
Range TeSys
GTIN 3389110367300
Device Short Name LUA1
Product or Component Type Auxiliary contact
Auxiliary Contact Composition 2 NO
Signalling Function Fault signalling, indicating rotary knob in ready position
Rated Operational Voltage (Ue) ≤ 250 V AC, ≤ 250 V DC
Rated Insulation Voltage (Ui) 250 V
Conventional Free Air Thermal Current (Ith) 2.5 A
Minimum Switching Voltage 17 V
Minimum Switching Current 5 mA
Connections Screw clamp terminals
Net Weight 0.03 kg
Country of Origin Czech Republic

Selection Notes

The 2NO composition reports both the open/closed status (OF contact) and the tripping status (SD contact) as normally-open signals, matching PLC input cards or indicator circuits that expect uniform NO logic - choose the 1NO+1NC composition instead where the trip signal needs to be fail-safe (normally-closed).

Technical Details

Short Description
TeSys U auxiliary signalling contact block, 2 NO, 5 A 250 V AC/DC
Rated Current (Ampere)
2.5 A
Rated Voltage (VAC)
250 V AC
Mounting Type
Insert into power base
Catalog No
LUA1C20
Delivery Date (Days)
30 days
Model Number
LUA1
Tariff Code
853650
