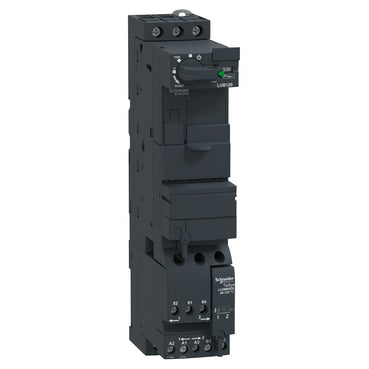

Schneider Electric LU2B12ES TeSys U Reversing Power Base 3P 12 A 48-72 V AC/DC Motor Starter Module

The Schneider Electric LU2B12ES is a TeSys U standard reversing power base, 3-pole, rated 12 A at up to 440 V, that forms a complete reversing starter-controller once fitted with a LUC control unit and the matching 48-72 V AC/DC reverser module.

Technical Specifications

Certifications & Standards

• CE
• UL
• CSA
• CCC
• EAC
• ATEX
• IEC 60947-6-2
• UL 60947-4-1
• CSA C22.2 No 60947-4-1

Selection Notes

The 12 A rating sets the motor size this power base can reverse; pick a LUC control unit from LUC.05ES, LUC.12ES, LUC.1XES, LUC.X6ES to match the thermal/electronic protection class needed, since the power base alone has no overload protection of its own. The 48-72 V AC/DC reverser module must match the control transformer already feeding the panel — the power contacts, rotary handle and mounting are identical across every control-voltage variant of this base, only the coil input changes. The padlockable rotary handle gives a lockout-tagout isolation point that a plain contactor pair wired for reversing does not provide.
