Schneider Electric LTMTIN42FM TeSys Tera Digital 4DI 2DO Expansion Module Motor Starter Module

% $-200.14

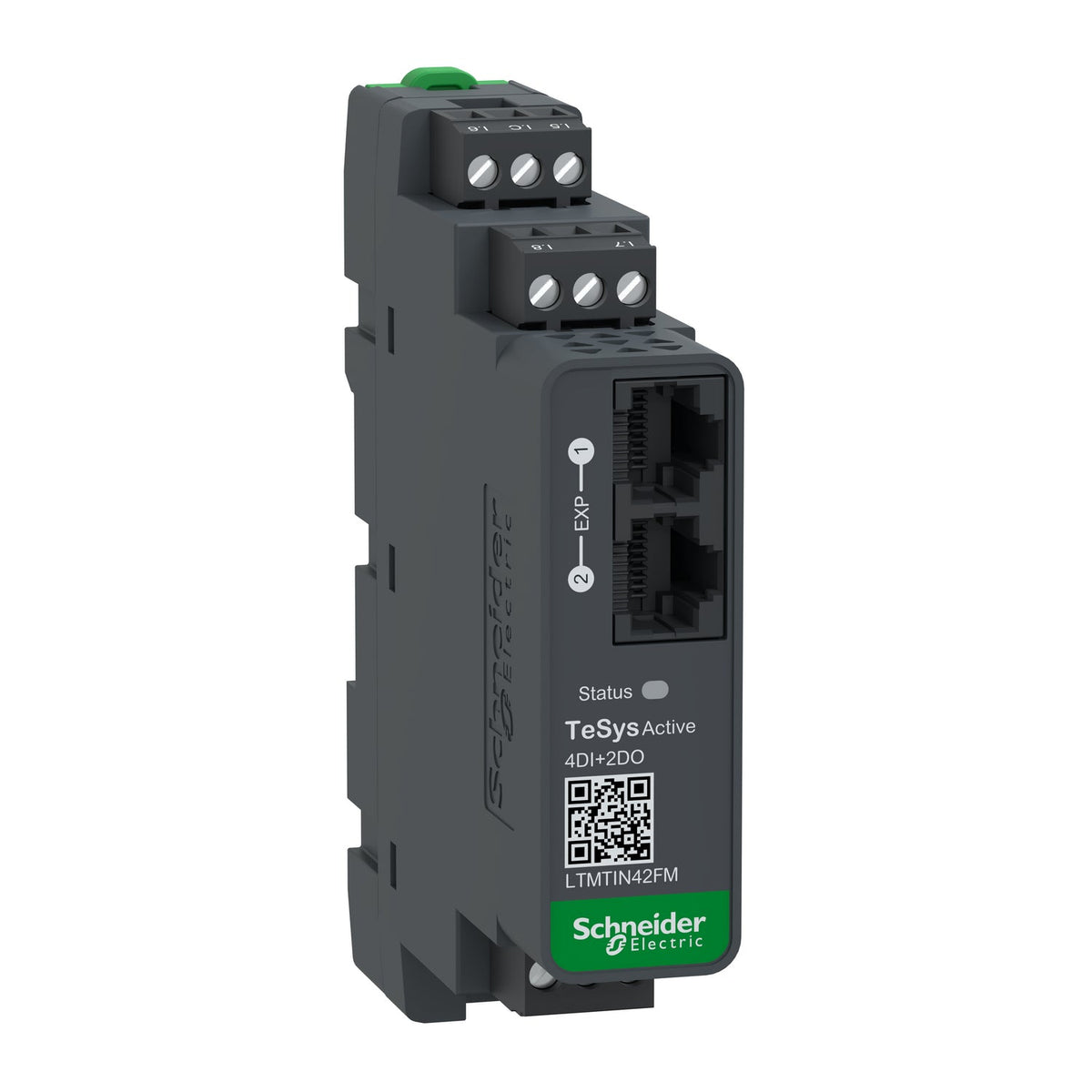

Schneider Electric LTMTIN42FM TeSys Tera digital expansion module, 4DI 2DO
Schneider Electric LTMTIN42FM TeSys Tera digital expansion module, 4DI 2DO

Schneider Electric LTMTIN42FM TeSys Tera Digital 4DI 2DO Expansion Module Motor Starter Module

Brand: Schneider Electric
Reference No: LTMTIN42FM
Catalog No: LTMTIN42FM
Tariff Code (HS): 853650
Rated Voltage: 100-240 V AC/DC
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$200.14

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric LTMTIN42FM is a TeSys Tera digital expansion module adding 4 isolated digital inputs and 2 NO-contact digital outputs to a TeSys Tera main controller, powered 100-240 v ac/dc with 100-240 v ac/dc input logic.

Technical Specifications

Reference LTMTIN42FM
GTIN 3606482185005
Brand Schneider Electric
Range TeSys Tera
Device short name LTMT
Product or component type Extension module
Device application Equipment monitoring and control
Range compatibility TeSys Tera motor controller
Supply 100-240 V AC/DC
Input type Digital input x4
Output type 2 x digital output
Digital input logic level 100-240 V AC/DC
Load current (output) 10 A 250 V AC/DC | 5 A 30 V DC
[Ui] rated insulation voltage 690 V
Overvoltage category III
Pollution degree 3
[Uimp] rated impulse withstand voltage 4 kV
Short-circuit withstand 100 kA
Mounting mode Flush-mounted
Dimensions (H x W x D) 61 x 45 x 120.7 mm
IP degree of protection IP20
Ambient air temperature for operation -20...70 °C

Certifications & Standards

  • IEC
  • UL
  • cUL
  • EN/IEC 60947-4-1
  • UL/CSA 60947-4-1

Selection Notes

The FM variant accepts 100-240 V AC/DC digital inputs; choose the BD sibling instead when the panel's digital I/O field devices run on 24 V DC.

Technical Details

Short Description
TeSys Tera digital expansion module, 4 isolated inputs, 2 NO outputs, 100-240 v ac/dc logic
Rated Voltage (VAC)
100-240 V AC/DC
Mounting Type
Flush-mounted
Protection Type
IP20
Catalog No
LTMTIN42FM
Delivery Date (Days)
30 days
Model Number
TeSys Tera (LTMT)
Tariff Code
853650
