Schneider Electric LTMTCT3T TeSys Tera CT Horizontal 0.3-3 A Sensor Module Automation Component

% $-200.14

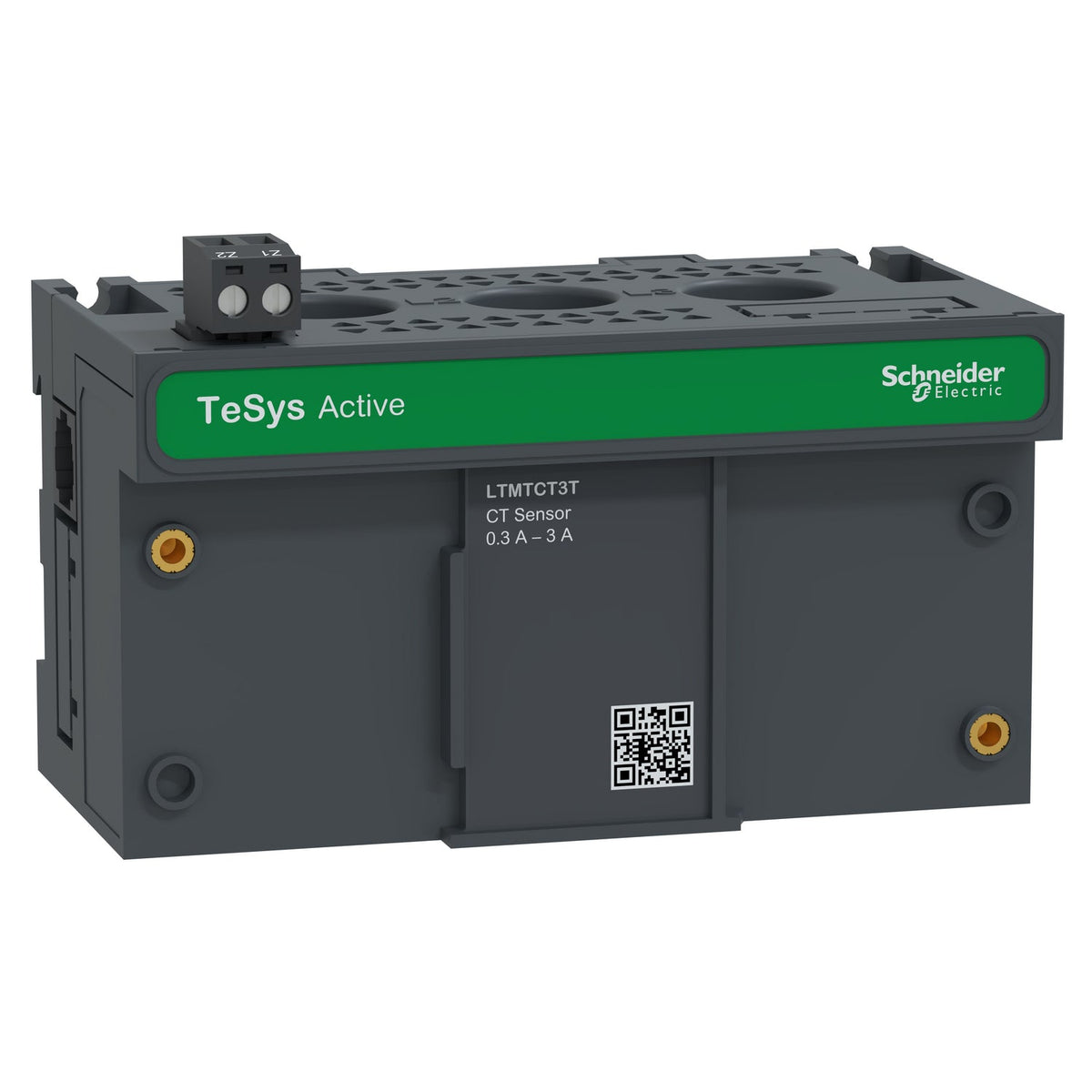

Schneider Electric LTMTCT3T TeSys Tera CT sensor module - 0.3-3 A
Schneider Electric LTMTCT3T TeSys Tera CT sensor module - 0.3-3 A

Schneider Electric LTMTCT3T TeSys Tera CT Horizontal 0.3-3 A Sensor Module Automation Component

Brand: Schneider Electric
Reference No: LTMTCT3T
Catalog No: LTMTCT3T
Tariff Code (HS): 853890
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$200.14

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric LTMTCT3T is a TeSys Tera horizontal-mount sensor module measuring 0.3-3 A current for a TeSys Tera motor management system, with a 100 kA short-circuit withstand rating and an integral input for ground-fault CT.

Technical Specifications

Reference LTMTCT3T
Brand Schneider Electric
Range TeSys Tera
Device short name LTMT
Product or component type Sensor
Device application Motor protection
Range compatibility TeSys Tera motor controller
[In] rated current 0.3-3 A at 60...690 V AC, 45...65 Hz
[Ui] rated insulation voltage 690 V
Overvoltage category III
Pollution degree 3
[Uimp] rated impulse withstand voltage 6 kV (current/voltage measurement circuit)
Short-circuit withstand 100 kA
Measurement accuracy +/- 1% voltage | +/- 1% current
Sensor type Current sensor
Mounting mode Horizontal
Dimensions (H x W x D) 74.7 x 110.3 x 60.5 mm
Ambient air temperature for operation -20...70 °C

Certifications & Standards

  • IEC
  • UL
  • cUL
  • EN/IEC 60947-4-1
  • UL/CSA 60947-4-1

Selection Notes

Match the sensor's 0.3-3 A current range to the motor's full-load current rather than to the frame size of the breaker or contactor ahead of it; choose a CTV-coded module instead if the application also needs phase voltage, undervoltage/overvoltage or power-factor monitoring.

Technical Details

Short Description
TeSys Tera CT sensor module, 0.3-3 A, horizontal mount, 690 V insulation
Mounting Type
Horizontal
Catalog No
LTMTCT3T
Delivery Date (Days)
30 days
Model Number
TeSys Tera (LTMT)
Tariff Code
853890
