Schneider Electric LE1M35N722 TeSys LE Enclosed DOL Starter 3P 12-16 A 7.5 kW 415 V AC Coil IP65 Motor Starter

% $-85.47

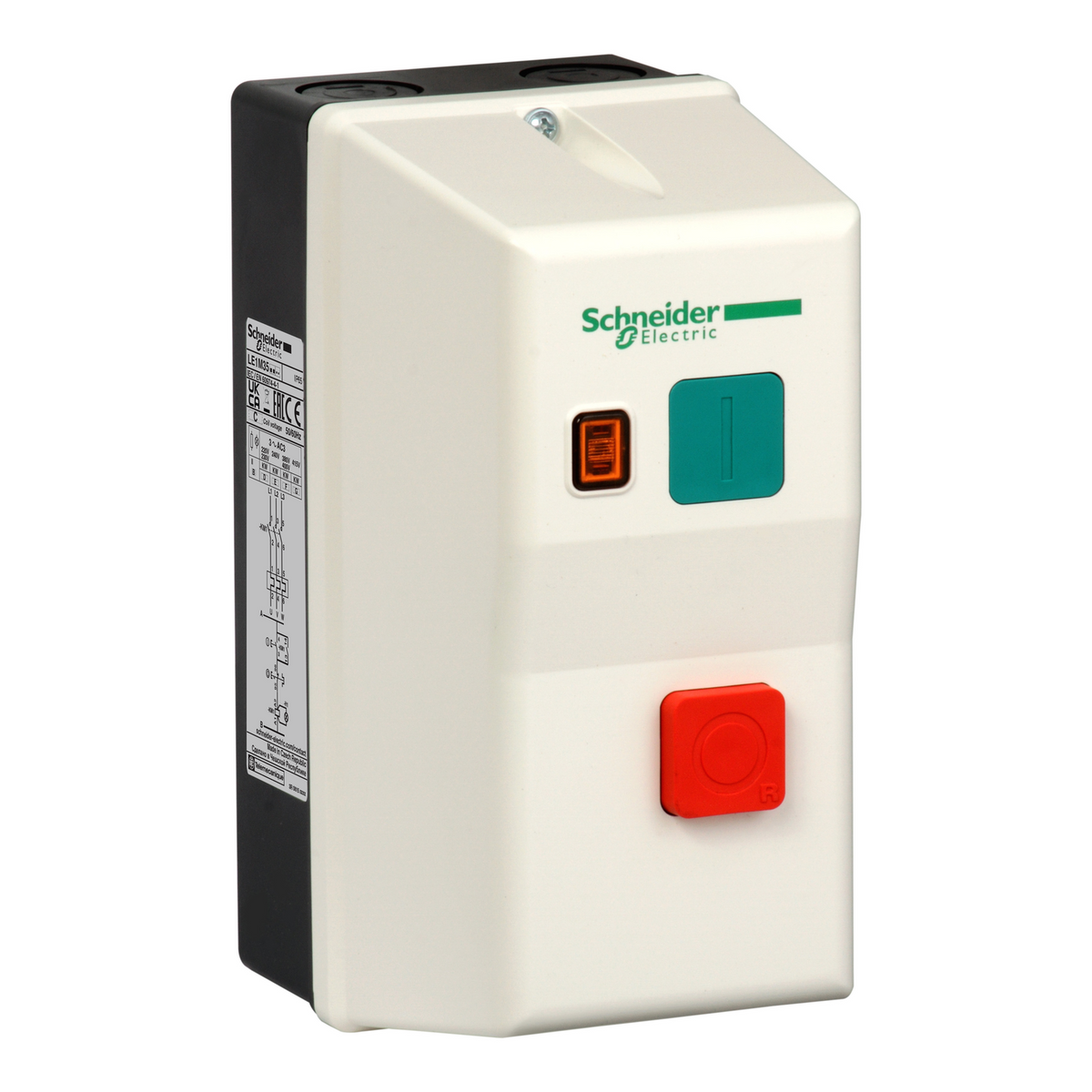

Schneider Electric LE1M35N722 TeSys LE enclosed DOL starter - 12-16 A 415 V AC
Schneider Electric LE1M35N722 TeSys LE enclosed DOL starter - 12-16 A 415 V AC

Schneider Electric LE1M35N722 TeSys LE Enclosed DOL Starter 3P 12-16 A 7.5 kW 415 V AC Coil IP65 Motor Starter

Brand: Schneider Electric
Reference No: LE1M35N722
Catalog No: LE1M35N722
Tariff Code (HS): 853710
Rated Current: 12-16 A
Power: 7.5 kW
Rated Voltage: 415 V AC
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$85.47

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric LE1M35N722 is a TeSys LE enclosed direct-on-line starter with a built-in LC1K contactor and LR2K thermal overload relay, pre-wired for 7.5 kW motors at 400 V with a thermal setting range of 12-16 A and a 415 V AC control circuit. A yellow operating LED gives local run status, and the starter must be paired with external short-circuit protection to achieve type 1 or type 2 coordination.

Technical Specifications

Reference LE1M35N722
Brand Schneider Electric
Range TeSys LE
Device short name LE1M
Product type Enclosed DOL starter
Device composition Contactor LC1K + thermal overload relay LR2K (built-in, pre-wired)
Utilisation category AC-3
Thermal protection adjustment range 12-16 A
[Uc] control circuit voltage 415 V AC 50/60 Hz
Motor power (380/400 V AC) 7.5 kW
Control type Push-button start (green I) / stop-reset (red O)
Local signalling Operating LED (yellow)
Enclosure material ABS (acrylonitrile butadiene-styrene)
IP degree of protection IP65
Dimensions (W x H x D) 78 x 160 x 108 mm
Net weight 0.6 kg
Ambient air temperature for operation -5...40 °C

Certifications & Standards

  • UKCA
  • IEC 60947-4-1

Selection Notes

The 12-16 A setting is the largest in the 415 V AC LE1M35 line here, sized for 7.5 kW motors; drop to the 10-14 A LE1M35N721 for smaller 5.5 kW motors.

Technical Details

Short Description
TeSys LE enclosed DOL starter, 3P, 12-16 A AC-3, 7.5 kW at 400 V, 415 V AC coil, IP65
Rated Current (Ampere)
12-16 A
Rated Voltage (VAC)
415 V AC
Mounting Type
Surface mounting, screw fixing
Protection Type
IP65
Catalog No
LE1M35N722
Power (kW)
7.5 kW
Delivery Date (Days)
30 days
Model Number
TeSys LE (LE1M)
Tariff Code
853710
