Schneider Electric LC1E50B5 Easy TeSys Contactor 3P 3NO AC-3 50 A 24 V AC Coil Contactor

% $-79.28

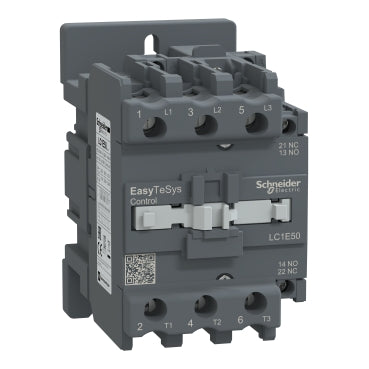

Schneider Electric LC1E50B5 Easy TeSys Contactor – 50 A AC-3
Schneider Electric LC1E50B5 Easy TeSys Contactor – 50 A AC-3

Schneider Electric LC1E50B5 Easy TeSys Contactor 3P 3NO AC-3 50 A 24 V AC Coil Contactor

Brand: Schneider Electric
Reference No: LC1E50B5
Series: Easy TeSys Control
Tariff Code (HS): 85365080
Rated Current: 50 A
Power: 22 kW
Rated Voltage: 24 V AC
Poles: 3P
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$79.28

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric LC1E50B5 is a 3-pole Easy TeSys contactor rated 50 A AC-3 (up to 440 V) for direct-on-line motor control, switching motors up to 22 kW at 400 V. It carries a 24 V AC coil, no built-in auxiliary contact, and screw clamp terminals on both power and control circuits for DIN-rail or plate mounting.

Technical Specifications

Reference LC1E50B5
Brand Schneider Electric
Range Easy TeSys
Device short name LC1E
Poles 3P
Pole contact composition 3 NO
Utilisation category AC-3 / AC-3e / AC-1
Rated operational current (Ie), AC-3 50 A at ≤ 440 V AC
Rated operational current (Ie), AC-1 undefined A at ≤ 440 V AC
Rated operational voltage (Ue) ≤ 690 V AC 25...400 Hz
Motor power at 400 V (AC-3) 22 kW
Control circuit voltage (Uc) 24 V AC 50 Hz
Auxiliary contact composition Without
Conventional free air thermal current (Ith) 70 A
Rated making capacity 650 A at 440 V
Rated breaking capacity 425 A at 440 V
Rated short-time withstand current (Icw) 400 A - 10 s
Associated fuse rating 100 A gG (coordination type 1)
Rated insulation voltage (Ui) 690 V
Rated impulse withstand voltage (Uimp) 6 kV
IP degree of protection IP2X
Mounting plate / DIN rail
Terminal type screw clamp
Maximum operating rate 1200 cyc/h
Permissible ambient air temperature -20...70 °C (Uc) / -5...55 °C (operation)
Operating altitude 3000 m without derating
Dimensions (H x W x D) 127 x 75 x 114 mm
Net weight 0.98 kg

Certifications & Standards

  • CB Scheme
  • CCC
  • CE
  • EAC
  • EN/IEC 60947-4-1
  • EN/IEC 60947-5-1

Selection Notes

At 50 A AC-3 it covers motors up to 22 kW at 400 V; The coil voltage is chosen to match the panel control-circuit supply. The mirror-contact-certified 1 NO + 1 NC auxiliary block confirms power-contact position for safety-circuit feedback without an external contact block.

Technical Details

Short Description
Schneider Electric LC1E50B5 Easy TeSys contactor, 3P 3NO, AC-3 50 A, 24 V AC coil.
Rated Current (Ampere)
50 A
Rated Voltage (VAC)
24 V AC
Mounting Type
DIN rail
Protection Type
IP2X
Number of Poles
3P
Power (kW)
22 kW
Delivery Date (Days)
30 days
Model Number
LC1E
Tariff Code
85365080
