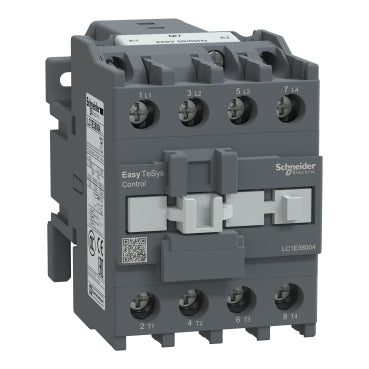

Schneider Electric LC1E38004M7 Easy TeSys contactor 4P 50 A 220 V AC coil - Contactor

Schneider Electric LC1E38004M7 Easy TeSys Contactor 4P 4NO AC-1 50 A 220 V AC Coil Contactor

Name: Schneider Electric LC1E38004M7 Easy TeSys Contactor 4P 4NO AC-1 50 A 220 V AC Coil Contactor
Brand: Schneider Electric
SKU: LC1E38004M7
Price: 63.07 USD
Availability: OutOfStock
Rating: 5.0 (10 reviews)

Brand: Schneider Electric

Reference No: LC1E38004M7

Series: Easy TeSys Control

Tariff Code (HS): 85365080

Rated Current: 50 A

Rated Voltage: 220 V AC

Poles: 3P

Stock: 0

Delivery time: 30 business day(s)

Shipping Origin: Türkiye EXW

$63.07

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

Description

The Schneider Electric LC1E38004M7 is a 4-pole Easy TeSys contactor rated 50 A AC-1 for resistive-load switching at up to 440 V. It carries a 220 V AC 50/60 Hz coil with built-in 4NO auxiliary contacts, power and control connections by screw clamp terminals in a 56 mm wide DIN-rail housing.

Technical Specifications

SKU	LC1E38004M7
Brand	Schneider Electric
Range	Easy TeSys
Poles	4P, 4 NO
Utilisation Category	AC-1 (resistive load)
[Ie] Rated Operational Current	50 A at ≤440 V AC-1
[Ue] Rated Operational Voltage	≤690 V AC 50/60 Hz
[Uc] Control Circuit Voltage	220 V AC 50/60 Hz
[Ith] Conventional Free Air Thermal Current	50 A at 55 °C
Rated Breaking Capacity	304 A at 440 V (IEC 60947)
[Icw] Rated Short-Time Withstand Current	310 A, 10 s at 40 °C
Associated Fuse Rating	63 A gG at ≤690 V, coordination type 1
Auxiliary Contact Composition	Without
Maximum Operating Rate	1800 cycles/hour
Mechanical Durability	8 Mcycles mechanical, 0.35 Mcycles electrical
Mounting Support	Plate or DIN rail
IP Degree of Protection	IP2X (IEC 60529)
Permissible Ambient Operating Temperature	-5...55 °C
Height x Width x Depth	64 x 56 x 93 mm
Net Weight	0.52 kg

Certifications & Standards

CB Scheme
CE
CCC
EAC
EN/IEC 60947-1
EN/IEC 60947-4-1

Selection Notes

Being AC-1 rated, the LC1E38004M7's 50 A figure applies to resistive loads, not motor starting current, and it shares its 56 mm frame and 64x93 mm footprint with the 40 A AC-1 variant despite the higher current. Four normally-open poles switch a full heating-load circuit in one device; where a motor contactor is needed, the 3-pole AC-3 Easy TeSys range is the correct choice instead.

Technical Details

Short Description

Easy TeSys contactor, 4P, 50 A AC-1 resistive load, 220 V AC coil, DIN rail mount.

Rated Current (Ampere)

50 A

Rated Voltage (VAC)

220 V AC

Mounting Type

Plate or DIN rail

Protection Type

IP2X

Number of Poles

Delivery Date (Days)

30 days

Model Number

LC1E Easy TeSys Contactor

Tariff Code

85365080
