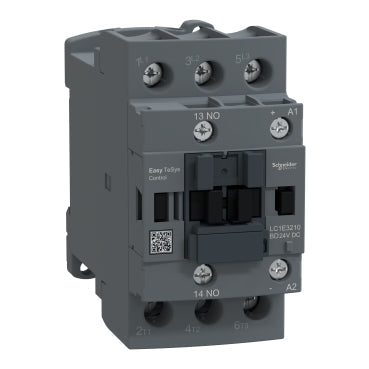

Schneider Electric LC1E3210BD Easy TeSys Control LC1E 32A 3P 400V 15kW Contactor

The Schneider Electric LC1E3210BD is a 3-pole Easy TeSys Control contactor rated 32 A (AC-3) at up to 440 V AC, built for direct-on-line motor control up to 15 kW at 400 V. It carries a 24 V DC coil and one NO auxiliary contact, making it a compact DIN-rail or plate-mount switching device for control panels and motor starter combinations.

Technical Specifications

Certifications & Standards

• CB Scheme
• CCC
• CE
• EAC
• EN/IEC 60947-1
• EN/IEC 60947-4-1
• EN/IEC 60947-5-1
• GB/T 14048.1
• GB/T 14048.4
• GB/T 14048.5

Selection Notes

The 32 A AC-3 rating supports direct-on-line starting of motors up to 15 kW at 400 V AC, while the separate 50 A AC-1 rating applies only to resistive or heating loads, not motor circuits. A 24 V DC coil suits control panels standardized on low-voltage DC control power rather than mains-referenced AC coils. The single NO auxiliary contact provides one spare signal for a motor-running indication, interlock, or PLC feedback point without an add-on auxiliary contact block. The 260 A / 10 s short-time withstand current gives margin to ride through inrush conditions under coordinated fuse protection (63 A gG, type 1).
