Schneider Electric LC1E200B5 Easy TeSys Contactor 3P 3NO AC-3 200 A 100 kW 24 V AC Coil Contactor

% $-371.49

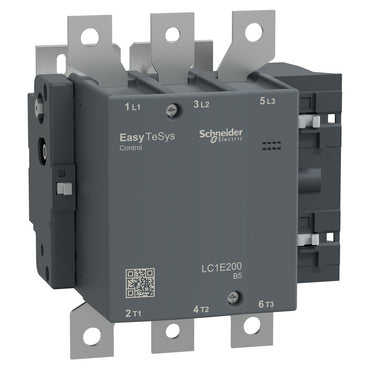

Schneider Electric LC1E200B5 Easy TeSys contactor 3P 200 A 24 V AC coil - Contactor
Schneider Electric LC1E200B5 Easy TeSys contactor 3P 200 A 24 V AC coil - Contactor

Schneider Electric LC1E200B5 Easy TeSys Contactor 3P 3NO AC-3 200 A 100 kW 24 V AC Coil Contactor

Brand: Schneider Electric
Reference No: LC1E200B5
Series: Easy TeSys Control
Tariff Code (HS): 85365080
Rated Current: 200 A
Power: 100 kW
Rated Voltage: 24 V AC
Poles: 3P
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$371.49

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric LC1E200B5 is a 3-pole Easy TeSys contactor rated 200 A AC-3 at up to 440 V, switching motors up to 100 kW at 415/440 V. It carries a 24 V AC 50 Hz coil with no built-in auxiliary contacts, power connections by cable lug or busbar, and control connections by screw clamp terminals in a 168.5 mm wide plate-mounted housing.

Technical Specifications

SKU LC1E200B5
Brand Schneider Electric
Range Easy TeSys
Poles 3P, 3 NO
Utilisation Category AC-3, AC-3e, AC-1
[Ie] Rated Operational Current 200 A at ≤440 V AC-3
[Ue] Rated Operational Voltage ≤690 V AC 50/60 Hz
Motor Power 100 kW at 415/440 V AC
[Uc] Control Circuit Voltage 24 V AC 50 Hz
[Ith] Conventional Free Air Thermal Current 250 A at 40 °C
Rated Breaking Capacity 1600 A at 440 V (IEC 60947)
[Icw] Rated Short-Time Withstand Current 1500 A, 10 s at 40 °C
Associated Fuse Rating 315 A gG at ≤690 V, coordination type 1
Auxiliary Contact Composition Without
Maximum Operating Rate 1200 cycles/hour
Mechanical/Electrical Durability 5 Mcycles mechanical, 0.5 Mcycles AC-3
Mounting Support Plate
IP Degree of Protection IP2X (IEC 60529)
Permissible Ambient Operating Temperature -5...55 °C
Height x Width x Depth 174 x 168.5 x 181 mm
Net Weight 4.6 kg

Certifications & Standards

  • CB Scheme
  • CE
  • CCC
  • EAC
  • EN/IEC 60947-1
  • EN/IEC 60947-4-1

Selection Notes

At 200 A AC-3 for 100 kW motors, the LC1E200B5 connects by cable lug or 3x25 mm busbar rather than screw clamp terminals, reflecting the higher power circuit current at this frame size. It ships without built-in auxiliary contacts, so feedback signalling needs an add-on auxiliary contact block; for motors above 100 kW at 415/440 V, the next frame size up in this contactor family is required.

Technical Details

Short Description
Easy TeSys contactor, 3P, 200 A AC-3, 100 kW at 415/440 V, 24 V AC coil, no built-in auxiliary contacts.
Rated Current (Ampere)
200 A
Rated Voltage (VAC)
24 V AC
Mounting Type
Plate
Protection Type
IP2X
Number of Poles
3P
Power (kW)
100 kW
Delivery Date (Days)
30 days
Model Number
LC1E Easy TeSys Contactor
Tariff Code
85365080
