Schneider Electric LC1E1201B5 Easy TeSys Contactor 3P 3NO AC-3 12 A 5.5 kW 24 V AC Coil Contactor

% $-16.46

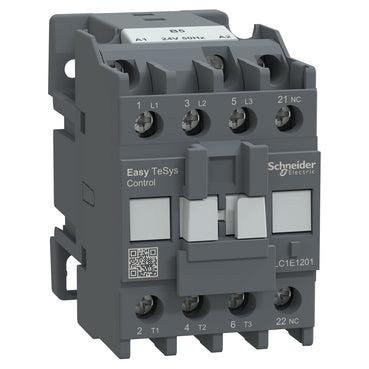

Schneider Electric LC1E1201B5 Easy TeSys contactor 3P 12 A 24 V AC coil - Contactor
Schneider Electric LC1E1201B5 Easy TeSys contactor 3P 12 A 24 V AC coil - Contactor

Schneider Electric LC1E1201B5 Easy TeSys Contactor 3P 3NO AC-3 12 A 5.5 kW 24 V AC Coil Contactor

Brand: Schneider Electric
Reference No: LC1E1201B5
Series: Easy TeSys Control
Tariff Code (HS): 85365080
Rated Current: 12 A
Power: 5.5 kW
Rated Voltage: 24 V AC
Poles: 3P
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$16.46

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric LC1E1201B5 is a 3-pole Easy TeSys contactor rated 12 A AC-3 at up to 440 V, switching motors up to 5.5 kW at 400 V. It carries a 24 V AC 50 Hz coil and one built-in 1NC auxiliary contact, with power and control connections by screw clamp terminals in a 45 mm wide DIN-rail housing.

Technical Specifications

SKU LC1E1201B5
Brand Schneider Electric
Range Easy TeSys
Poles 3P, 3 NO
Utilisation Category AC-3, AC-3e, AC-1
[Ie] Rated Operational Current 12 A at ≤440 V AC-3
[Ue] Rated Operational Voltage ≤690 V AC 50/60 Hz
Motor Power 5.5 kW at 380/400 V AC
[Uc] Control Circuit Voltage 24 V AC 50 Hz
[Ith] Conventional Free Air Thermal Current 25 A at 55 °C
Rated Breaking Capacity 102 A at 440 V (IEC 60947)
[Icw] Rated Short-Time Withstand Current 105 A, 10 s at 40 °C
Associated Fuse Rating 25 A gG at ≤690 V, coordination type 1
Auxiliary Contact Composition 1 NC
Maximum Operating Rate 1800 cycles/hour
Mechanical/Electrical Durability 10 Mcycles mechanical, 1.4 Mcycles AC-3
Mounting Support DIN rail or plate
IP Degree of Protection IP2X (IEC 60529)
Permissible Ambient Operating Temperature -5...55 °C
Height x Width x Depth 74 x 45 x 80 mm
Net Weight 0.3 kg

Certifications & Standards

  • CB Scheme
  • CE
  • CCC
  • EAC
  • EN/IEC 60947-1
  • EN/IEC 60947-4-1

Selection Notes

At 12 A AC-3 and 5.5 kW at 400 V, the LC1E1201B5 is the top current step that still fits the compact 45 mm Easy TeSys frame shared with the 6 A and 9 A units, useful where panel width is tight. The same 25 A gG associated fuse rating as the 9 A variant simplifies spare-parts standardisation across a panel that mixes both current ratings; for motors above 5.5 kW, the wider-frame Easy TeSys contactors are needed instead.

Technical Details

Short Description
Easy TeSys contactor, 3P, 12 A AC-3, 5.5 kW at 400 V, 24 V AC coil, 1NC auxiliary contact.
Rated Current (Ampere)
12 A
Rated Voltage (VAC)
24 V AC
Mounting Type
DIN rail or plate
Protection Type
IP2X
Number of Poles
3P
Power (kW)
5.5 kW
Delivery Date (Days)
30 days
Model Number
LC1E Easy TeSys Contactor
Tariff Code
85365080
