Schneider Electric LC1DT25B7 TeSys Deca Contactor 4P 4NO AC-1 25 A 24 V AC Coil Contactor

% $-35.12

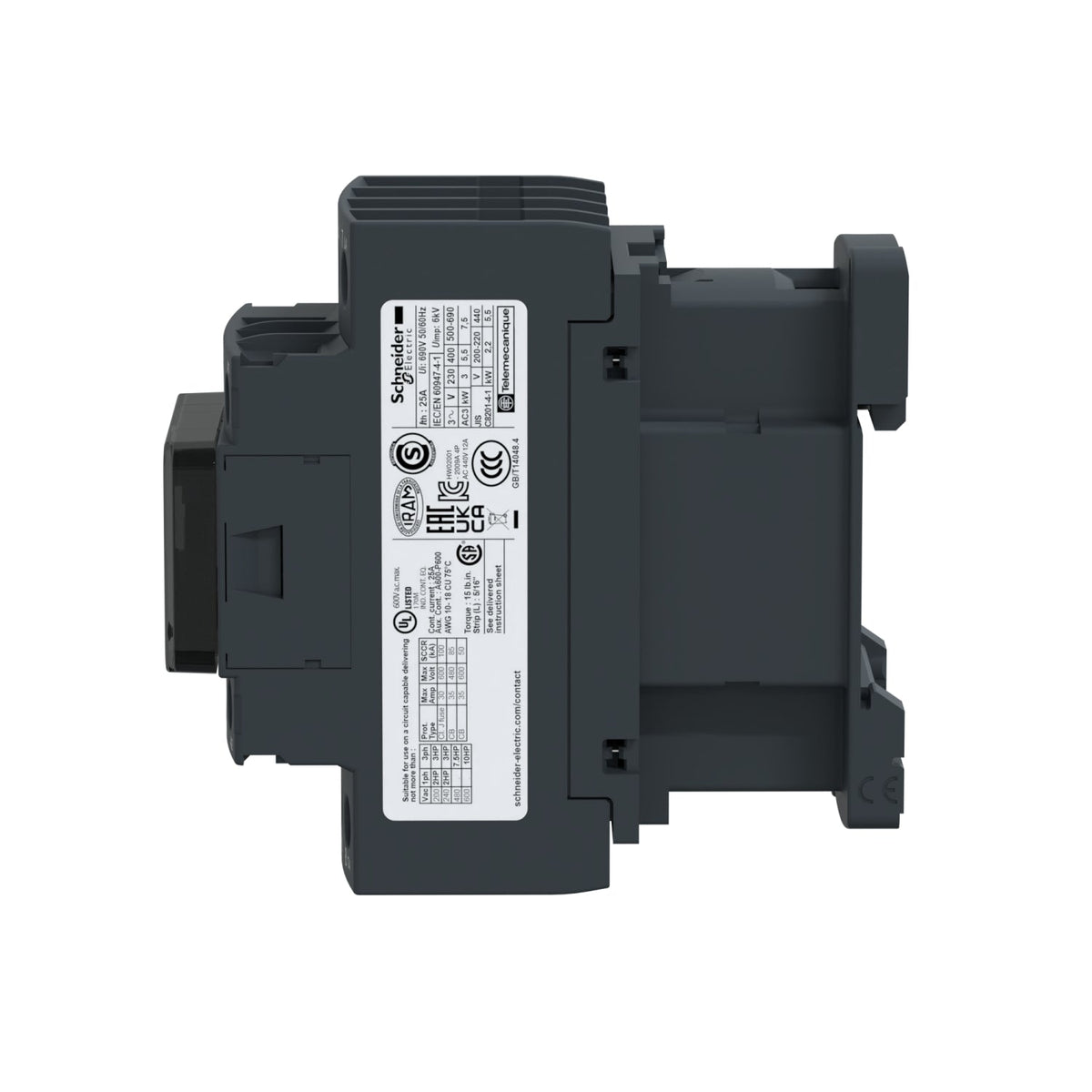

Schneider Electric LC1DT25B7 TeSys Deca 4P contactor - 25A AC-1 24 V AC coil
Schneider Electric LC1DT25B7 TeSys Deca 4P contactor - 25A AC-1 24 V AC coil

Schneider Electric LC1DT25B7 TeSys Deca Contactor 4P 4NO AC-1 25 A 24 V AC Coil Contactor

Brand: Schneider Electric
Reference No: LC1DT25B7
Catalog No: LC1DT25B7
Series: TeSys Deca
Tariff Code (HS): 853650
Rated Current: 25 A
Rated Voltage: 24 V AC
Poles: 3P
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$35.12

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric LC1DT25B7 is a TeSys Deca 4-pole (4NO) contactor rated 25 A AC-1 for non-inductive loads at up to 690 V. It takes a 24 V 50/60 Hz AC coil, a low-voltage control standard on machine panels, and 1NO+1NC mirror-certified auxiliary contacts come built in. Screw clamp terminals serve both the power and control circuits.

Technical Specifications

Reference LC1DT25B7
Brand Schneider Electric
Range TeSys Deca
GTIN 3389110244540
Product Type Contactor
Poles 4P (4NO)
Utilisation Category AC-1
Rated Operational Voltage (Ue) ≤ 690 V AC, 25-400 Hz / ≤ 300 V DC
Rated Operational Current (Ie), AC-1, ≤440V 25 A
Conventional Free-Air Thermal Current (Ith) 25 A at 60 degrees C
Control Circuit Voltage (Uc) 24 V AC, 50/60 Hz
Inrush Power 70 VA
Rated Breaking Capacity at 440 V 250 A, IEC 60947
Rated Short-Time Withstand Current (Icw), 1 s 210 A at 40 degrees C
Rated Insulation Voltage (Ui) 690 V, IEC 60947-4-1
Auxiliary Contact Composition 1 NO + 1 NC, mirror contact
Terminal Type Screw clamp (power and control)
Maximum Operating Rate 3600 cyc/h at 60 degrees C
Mounting DIN rail or screw-fixing plate
IP Degree of Protection IP20, front face
Dimensions (H x W x D) 85 x 45 x 92 mm
Net Weight 365 g

Certifications & Standards

  • IEC 60947-4-1
  • UL
  • CSA
  • CCC
  • DNV

Selection Notes

The LC1DT25B7 switches 25 A AC-1 uniformly across all four poles, making it a fit for resistive heater or lighting banks that need four-pole isolation rather than three-phase motor duty. A 24 V AC coil matches the control-transformer secondary used on most European machine-tool panels. For the same coil voltage at higher resistive current, the 32 A and 40 A LC1DT variants share the same technology.

Technical Details

Short Description
TeSys Deca 4P contactor, 25A AC-1 resistive, 24 V AC coil.
Rated Current (Ampere)
25 A
Rated Voltage (VAC)
24 V AC
Mounting Type
DIN rail or screw fixing
Protection Type
IP20
Catalog No
LC1DT25B7
Number of Poles
3P
Delivery Date (Days)
30 days
Model Number
LC1D
Tariff Code
853650
