Schneider Electric LC1DT200A6KUE TeSys Deca Advanced 4P 4NO AC-1 200 A 100-250 V AC/DC Coil Contactor

% $-515.76

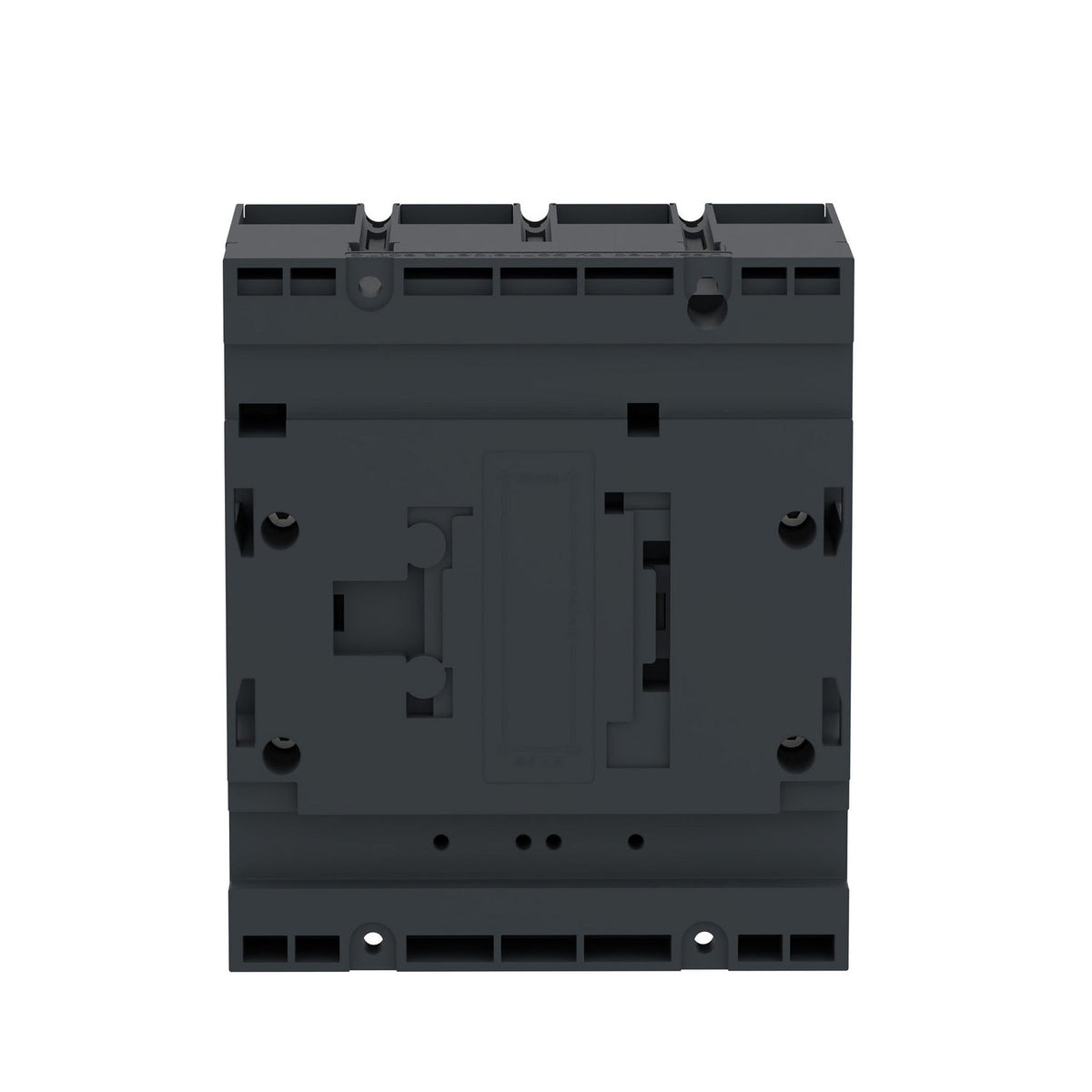

Schneider Electric LC1DT200A6KUE TeSys Deca Advanced 4P contactor - 200A AC-1 100-250 V AC/DC coil
Schneider Electric LC1DT200A6KUE TeSys Deca Advanced 4P contactor - 200A AC-1 100-250 V AC/DC coil

Schneider Electric LC1DT200A6KUE TeSys Deca Advanced 4P 4NO AC-1 200 A 100-250 V AC/DC Coil Contactor

Brand: Schneider Electric
Reference No: LC1DT200A6KUE
Catalog No: LC1DT200A6KUE
Series: TeSys Deca Advanced
Tariff Code (HS): 853650
Rated Current: 200 A
Power: 55 kW
Rated Voltage: 100-250 V AC/DC
Poles: 3P
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$515.76

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric LC1DT200A6KUE is a TeSys Deca Advanced 4-pole (4NO) contactor rated 200 A AC-1 at up to 440 V, carrying a 55 kW AC-3 motor rating at 400 V. Its sealed 100-250 V AC/DC electronic coil spans the widest control band in the family, and the power circuit connects through lugs-ring terminals or busbars.

Technical Specifications

Reference LC1DT200A6KUE
Brand Schneider Electric
Range TeSys Deca Advanced
GTIN 3606487155980
Product Type Contactor
Poles 4P (4NO)
Utilisation Category AC-1, AC-3, AC-3e, AC-4, DC-1, DC-3, DC-5
Rated Operational Voltage (Ue) ≤ 1000 V AC, 16.67-400 Hz / ≤ 300 V DC
Rated Operational Current (Ie), AC-1, ≤440V 200 A
Motor Power, AC-3 at 400 V 55 kW
Control Circuit Voltage (Uc) 100-250 V AC/DC, electronic
Hold-In Power Consumption 4.5 W
Rated Breaking Capacity at 440 V 1100 A, IEC 60947
Rated Short-Time Withstand Current (Icw), 1 s 1800 A at 40 degrees C
Rated Insulation Voltage (Ui) 1000 V, IEC 60947-4-1
Auxiliary Contact Composition 1 NO + 1 NC, mirror contact
Terminal Type Lugs-ring terminals or bars (power), screw clamp (control)
Maximum Operating Rate 2400 cyc/h at 60 degrees C
Mounting Screw-fixing plate
IP Degree of Protection IP20, front face
Dimensions (H x W x D) 152 x 134 x 155 mm
Net Weight 2600 g

Certifications & Standards

  • IEC 60947-4-1
  • cULus
  • CCC
  • CE
  • UKCA

Selection Notes

A single LC1DT200A6KUE reference covers 110 V, 230 V AC or common DC control rails at 200 A AC-1 and 55 kW AC-3 at 400 V, matching the EHE sibling electrically but running a wider 100-250 V coil band. Lugs-ring or busbar power terminations suit the switchgear panels this frame size targets. Where the control circuit is fixed at 48-130 V, the EHE variant uses the identical body and ratings.

Technical Details

Short Description
TeSys Deca Advanced 4P contactor, 200A AC-1, 55kW at 400V AC-3, 100-250 V AC/DC coil.
Rated Current (Ampere)
200 A
Rated Voltage (VAC)
100-250 V AC/DC
Mounting Type
Screw-fixing plate
Protection Type
IP20
Catalog No
LC1DT200A6KUE
Number of Poles
3P
Power (kW)
55 kW
Delivery Date (Days)
30 days
Model Number
LC1D
Tariff Code
853650
