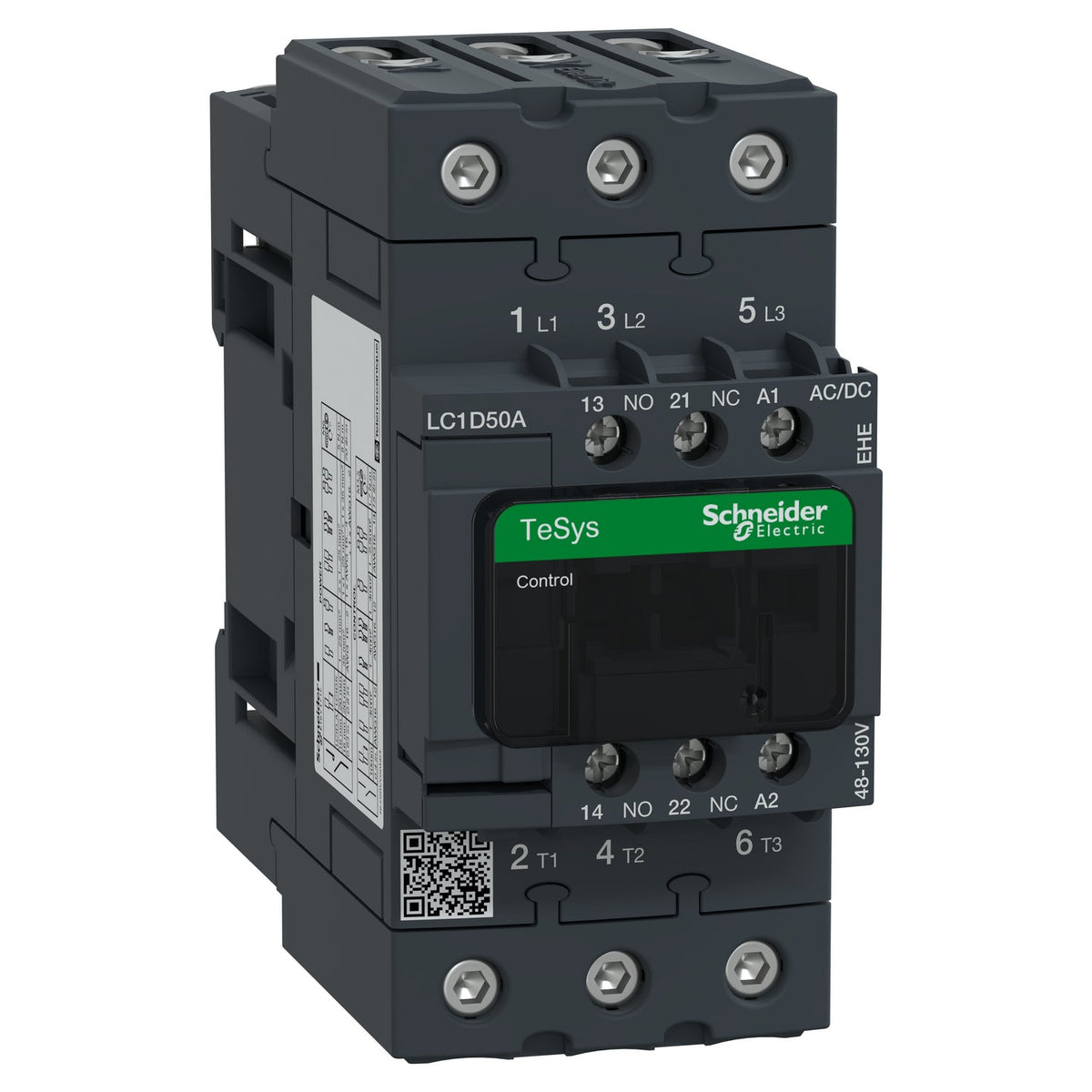

Schneider Electric LC1D50AEHE TeSys Deca Advanced Contactor 3P 3NO AC-3 50 A 48-130 V AC/DC Coil Contactor

% $-162.52
Schneider Electric LC1D50AEHE TeSys Deca Advanced 3P contactor - 50A AC-3 48-130 V AC/DC coil
Schneider Electric LC1D50AEHE TeSys Deca Advanced 3P contactor - 50A AC-3 48-130 V AC/DC coil

Schneider Electric LC1D50AEHE TeSys Deca Advanced Contactor 3P 3NO AC-3 50 A 48-130 V AC/DC Coil Contactor

Brand: Schneider Electric
Reference No: LC1D50AEHE
Catalog No: LC1D50AEHE
Series: TeSys Deca Advanced
Tariff Code (HS): 853650
Rated Current: 50 A
Power: 22 kW
Rated Voltage: 48-130 V AC/DC
Poles: 3P
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$162.52

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

Rated 50 A AC-3 at up to 440 V, the Schneider Electric LC1D50AEHE is a TeSys Deca Advanced 3-pole (3NO) contactor sized for 22 kW motors at 400 V. Its sealed 48-130 V AC/DC electronic coil spans a mid control-voltage band on one part number, and EverLink BTR screw connectors on the power circuit keep conductor terminations tight through thermal cycling.

Technical Specifications

Reference LC1D50AEHE
Brand Schneider Electric
Range TeSys Deca Advanced
GTIN 3606480988240
Product Type Contactor
Poles 3P (3NO)
Utilisation Category AC-1, AC-3, AC-3e, AC-4
Rated Operational Voltage (Ue) ≤ 690 V AC, 25-400 Hz
Rated Operational Current (Ie), AC-3, ≤440V 50 A
Rated Operational Current (Ie), AC-1, ≤440V 80 A
Motor Power, AC-3 at 400 V 22 kW
Control Circuit Voltage (Uc) 48-130 V AC/DC, electronic
Hold-In Power Consumption 0.9 W
Rated Breaking Capacity at 440 V 900 A, IEC 60947
Rated Short-Time Withstand Current (Icw), 1 s 810 A at 40 degrees C
Rated Insulation Voltage (Ui) 690 V, IEC 60947-4-1
Auxiliary Contact Composition 1 NO + 1 NC, mirror contact
Terminal Type EverLink BTR screw connectors (power), screw clamp (control)
Maximum Operating Rate 3600 cyc/h at 60 degrees C
Mounting DIN rail or screw-fixing plate
IP Degree of Protection IP20, front face
Dimensions (H x W x D) 122 x 55 x 120 mm
Net Weight 997 g

Certifications & Standards

  • IEC 60947-4-1
  • UL
  • CSA
  • CCC
  • UKCA

Selection Notes

The 48-130 V AC/DC coil makes the LC1D50AEHE a fit for 110 V AC or 125 V DC control circuits common on older retrofit panels, without the lower band of the BNE or the higher band of the KUE sibling. It delivers the same 50 A AC-3, 22 kW at 400 V rating and 900 A breaking capacity as those variants, differing only in coil voltage. Choose BNE for 24-60 V or KUE for 100-250 V control circuits instead.

Technical Details

Short Description
TeSys Deca Advanced 3P contactor, 50A AC-3, 22kW at 400V, 48-130 V AC/DC coil.
Rated Current (Ampere)
50 A
Rated Voltage (VAC)
48-130 V AC/DC
Mounting Type
DIN rail or screw fixing
Protection Type
IP20
Catalog No
LC1D50AEHE
Number of Poles
3P
Power (kW)
22 kW
Delivery Date (Days)
30 days
Model Number
LC1D
Tariff Code
853650
