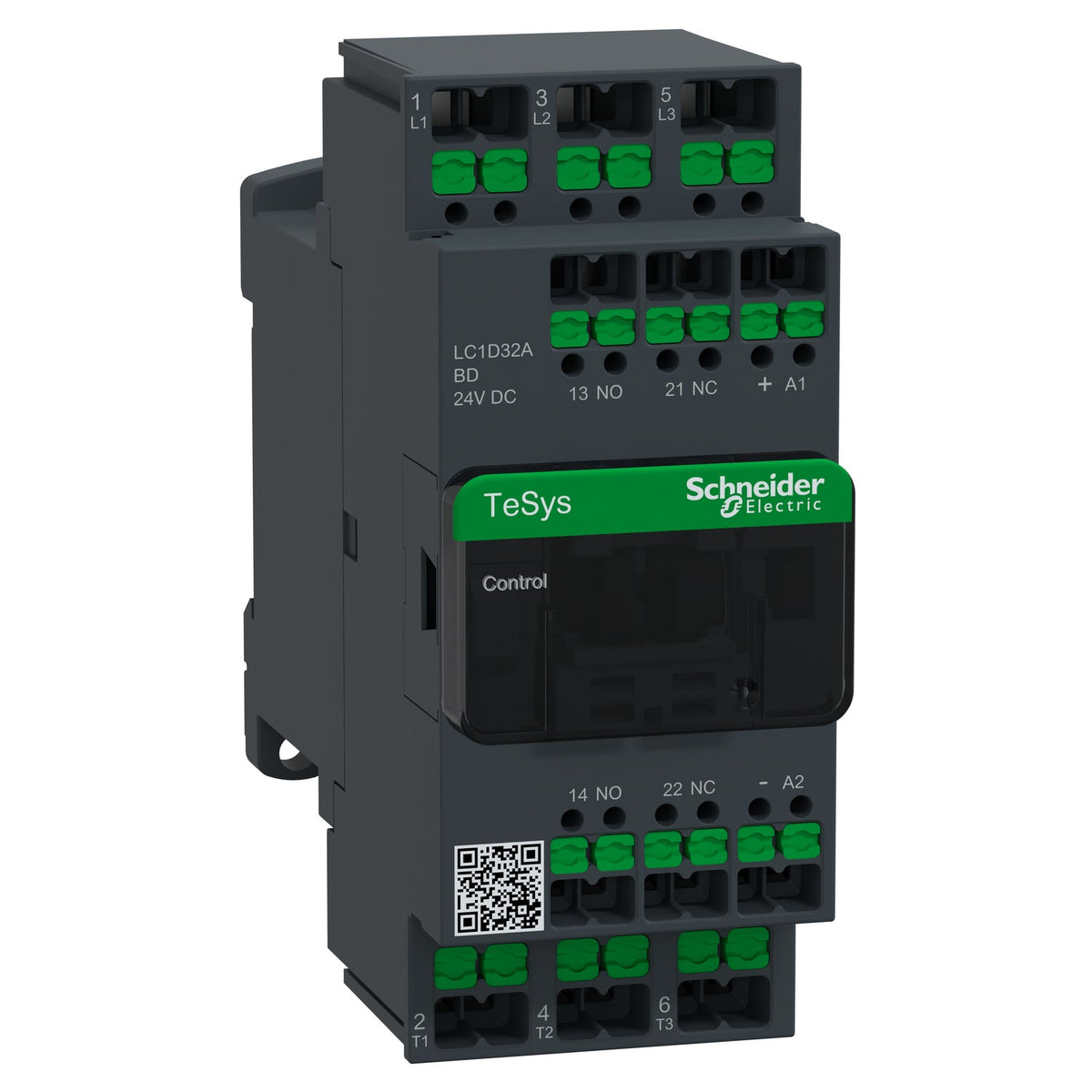

Schneider Electric LC1D32ABD TeSys Deca Contactor 3P 3NO AC-3 32 A ≤440V 24 V DC Coil Snap-In Contactor

The Schneider Electric LC1D32ABD is a TeSys Deca 3-pole (3NO) contactor rated 32 A AC-3 at up to 440 V, switching 15 kW motors at 400 V with a 24 V DC coil. Built-in 1NO+1NC mirror-certified auxiliary contacts and snap-in power and control terminals cut panel wiring time. It switches up to 3600 operations per hour and is rated for ambient temperatures to 60 degrees Celsius.

Technical Specifications

Certifications & Standards

• CE
• UKCA
• cULus
• CCC
• IEC 60947-4-1
• UL 60947-4-1

Selection Notes

Size the LC1D32ABD to motors up to 15 kW at 400 V where the full 32 A AC-3 rating applies continuously; the 40 A AC-1 figure only covers resistive loads, not motor starting current, so do not use it to size a motor branch. The 24 V DC coil draws a steady 5.4 W holding power and wires directly to PLC outputs or a DC control rail without an interposing relay; for motors above 15 kW at 400 V, the next current rating in the same TeSys Deca family keeps the identical 45 mm frame width and mounting pattern.
