Schneider Electric LC1D25D7 TeSys Deca Contactor 3P 3NO AC-3 25 A 42 V AC Coil Contactor

% $-44.95
Schneider Electric LC1D25D7 TeSys Deca 3P contactor - 25A AC-3 42 V AC coil
Schneider Electric LC1D25D7 TeSys Deca 3P contactor - 25A AC-3 42 V AC coil

Schneider Electric LC1D25D7 TeSys Deca Contactor 3P 3NO AC-3 25 A 42 V AC Coil Contactor

Brand: Schneider Electric
Reference No: LC1D25D7
Catalog No: LC1D25D7
Series: TeSys Deca
Tariff Code (HS): 853650
Rated Current: 25 A
Power: 11 kW
Rated Voltage: 42 V AC
Poles: 3P
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$44.95

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric LC1D25D7 is a TeSys Deca 3-pole (3NO) contactor rated 25 A AC-3 at up to 440 V, built for 11 kW motors at 400 V. A 42 V 50/60 Hz AC coil keeps control-circuit voltage within SELV-adjacent limits common on machine-tool panels, and built-in 1NO+1NC mirror-certified auxiliary contacts report contactor state back to the control system.

Technical Specifications

Reference LC1D25D7
Brand Schneider Electric
Range TeSys Deca
GTIN 3389110349672
Product Type Contactor
Poles 3P (3NO)
Utilisation Category AC-1, AC-3, AC-3e, AC-4
Rated Operational Voltage (Ue) ≤ 690 V AC, 25-400 Hz / ≤ 300 V DC
Rated Operational Current (Ie), AC-3, ≤440V 25 A
Rated Operational Current (Ie), AC-1, ≤440V 40 A
Motor Power, AC-3 at 400 V 11 kW
Control Circuit Voltage (Uc) 42 V AC, 50/60 Hz
Inrush Power 70 VA
Rated Breaking Capacity at 440 V 450 A, IEC 60947
Rated Short-Time Withstand Current (Icw), 1 s 380 A at 40 degrees C
Rated Insulation Voltage (Ui) 690 V, IEC 60947-4-1
Auxiliary Contact Composition 1 NO + 1 NC, mirror contact
Terminal Type Screw clamp (power and control)
Maximum Operating Rate 3600 cyc/h at 60 degrees C

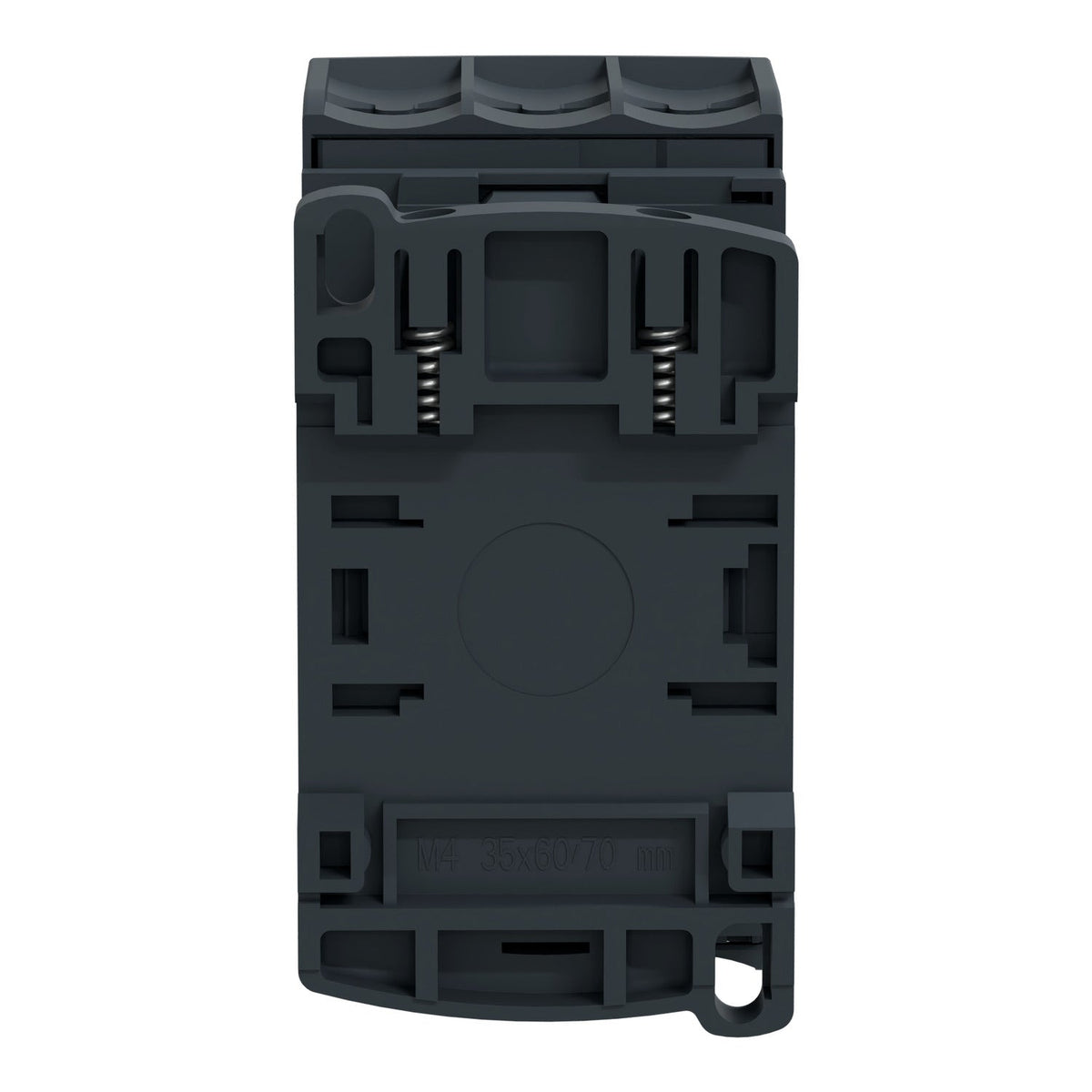

Mounting DIN rail or screw-fixing plate
IP Degree of Protection IP20, front face
Dimensions (H x W x D) 85 x 45 x 92 mm
Net Weight 370 g

Certifications & Standards

  • IEC 60947-4-1
  • UL
  • CSA
  • CCC
  • Marine

Selection Notes

The 42 V AC coil on the LC1D25D7 is sized for reduced-voltage control transformers often required on machine panels for touch-safety reasons, rather than running the coil straight off mains voltage. At 25 A AC-3 it handles 11 kW motors at 400 V with 450 A breaking capacity at 440 V. The 12 A LC1D ED/V7 variants share the same frame for lighter motor duty on the same 42 V control circuit.

Technical Details

Short Description
TeSys Deca 3P contactor, 25A AC-3, 11kW at 400V, 42 V AC coil.
Rated Current (Ampere)
25 A
Rated Voltage (VAC)
42 V AC
Mounting Type
DIN rail or screw fixing
Protection Type
IP20
Catalog No
LC1D25D7
Number of Poles
3P
Power (kW)
11 kW
Delivery Date (Days)
30 days
Model Number
LC1D
Tariff Code
853650
