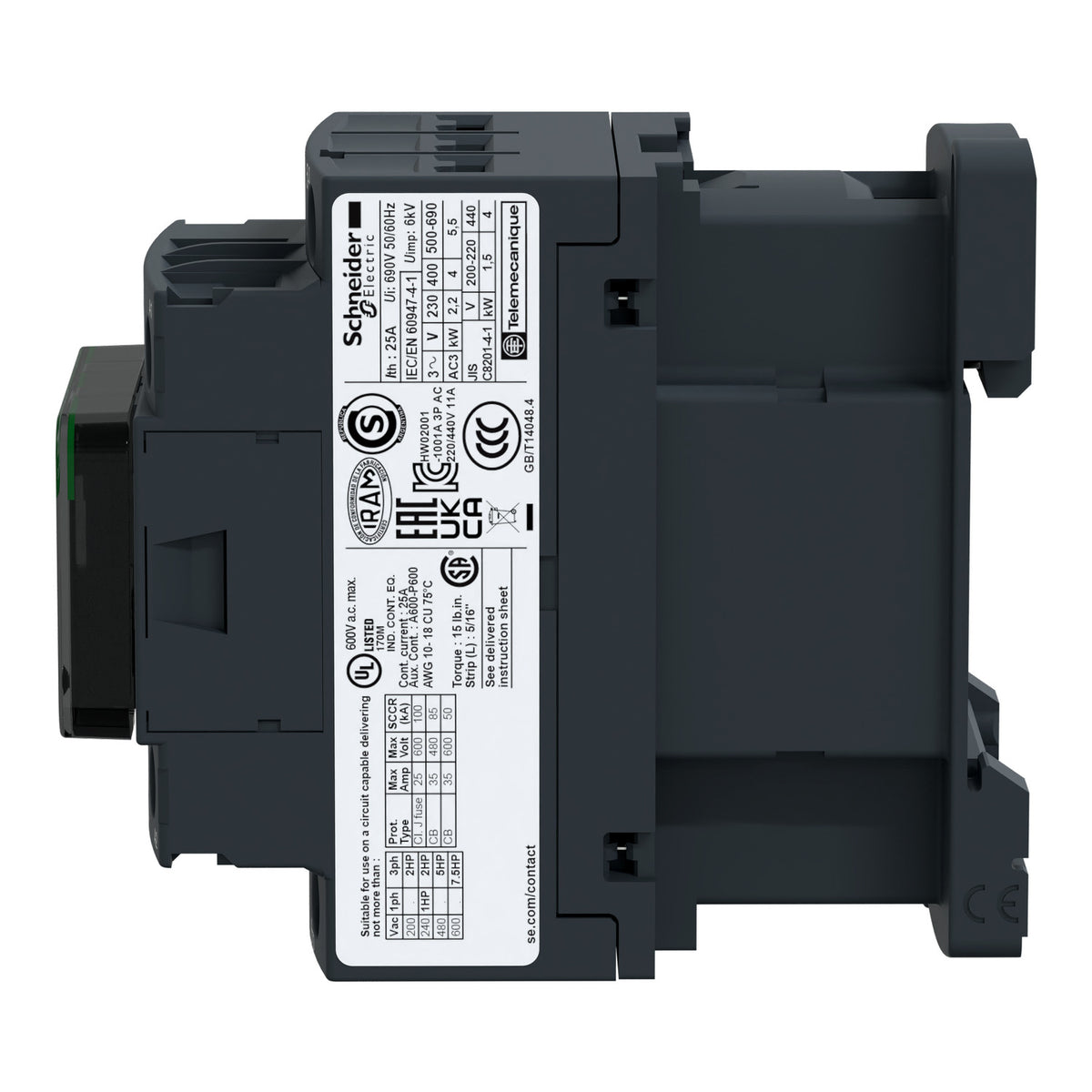

Schneider Electric LC1D18ED TeSys Deca Contactor – 18 A AC-3

Schneider Electric LC1D18ED TeSys Deca Contactor 3P 3NO AC-3 18 A 48 V DC Coil Contactor

Name: Schneider Electric LC1D18ED TeSys Deca Contactor 3P 3NO AC-3 18 A 48 V DC Coil Contactor
Brand: Schneider Electric
SKU: LC1D18ED
Price: 50.13 USD
Availability: OutOfStock
Rating: 5.0 (10 reviews)

Brand: Schneider Electric

Reference No: LC1D18ED

Series: TeSys Deca

Tariff Code (HS): 85365080

Rated Current: 18 A

Power: 7.5 kW

Poles: 3P

Stock: 0

Delivery time: 30 business day(s)

Shipping Origin: Türkiye EXW

$50.13

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

Description

The Schneider Electric LC1D18ED is a 3-pole TeSys Deca contactor rated 18 A AC-3 (up to 440 V) for direct-on-line motor control, switching motors up to 7.5 kW at 400 V. It carries a 48 V DC coil, a mechanically-linked 1 NO + 1 NC auxiliary contact with mirror-contact certification, and screw-clamp terminals on both power and control circuits for DIN-rail mounting.

Technical Specifications

Reference	LC1D18ED
Brand	Schneider Electric
Range	TeSys Deca
GTIN	3389110354812
Poles	3P
Pole contact composition	3 NO
Utilisation category	AC-3 / AC-3e / AC-1
Rated operational current (Ie), AC-3	18 A at ≤ 440 V AC
Rated operational current (Ie), AC-1	32 A at ≤ 440 V AC
Rated operational voltage (Ue)	≤ 690 V AC 25...400 Hz
Motor power at 400 V (AC-3)	7.5 kW
Control circuit voltage (Uc)	48 V DC
Auxiliary contact composition	1 NO + 1 NC (mirror contact)
Rated making capacity	300 A at 440 V
Rated breaking capacity	300 A at 440 V
Rated short-time withstand current (Icw)	240 A - 1 s
IP degree of protection	IP20 (front face)
Mounting / terminals	plate / rail; screw clamp terminals
Maximum operating rate	3600 cyc/h
Operating altitude	3000 m without derating
Dimensions (H x W x D)	77 x 45 x 95 mm
Net weight	0.49 kg

Certifications & Standards

IEC 60947-4-1
UL
CSA
CCC
EAC

Selection Notes

At 18 A AC-3 it covers motors up to 7.5 kW at 400 V; The 48 V DC coil suits battery-backed or DC control circuits commonly found in rail and marine panels. The mirror-contact-certified 1 NO + 1 NC auxiliary block confirms power-contact position for safety-circuit feedback without an external contact block.

Technical Details

Short Description

Schneider Electric LC1D18ED TeSys Deca contactor, 3P 3NO, AC-3 18 A, 48 V DC coil.

Rated Current (Ampere)

18 A

Mounting Type

DIN rail

Protection Type

IP20 (front face)

Number of Poles

Power (kW)

7.5 kW

Delivery Date (Days)

30 days

Model Number

LC1D

Tariff Code

85365080
