Schneider Electric LC1D12V7 TeSys Deca Contactor 3P 3NO AC-3 12 A 400 V AC Coil Contactor

% $-27.89

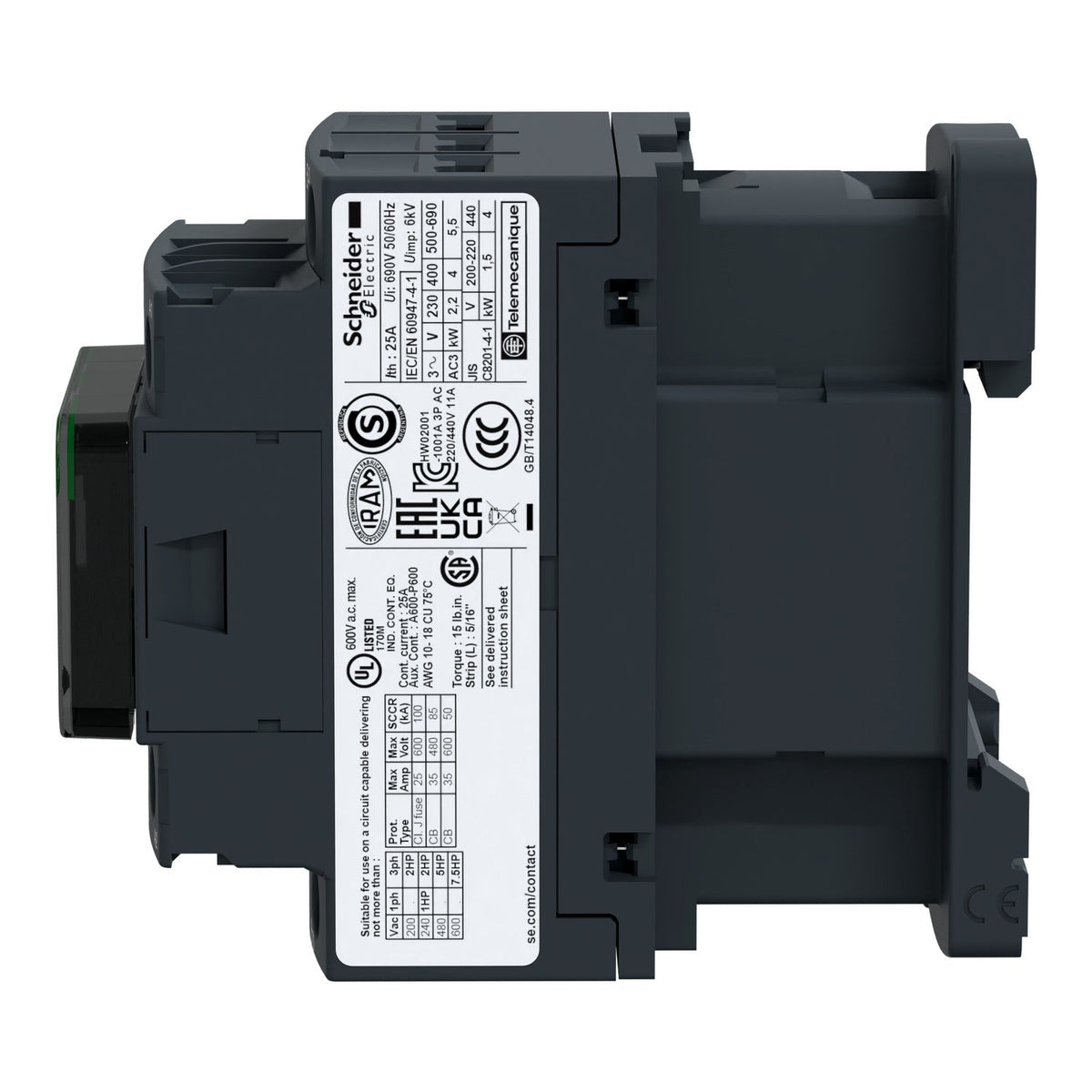

Schneider Electric LC1D12V7 TeSys Deca 3P contactor - 12A AC-3 400 V AC coil
Schneider Electric LC1D12V7 TeSys Deca 3P contactor - 12A AC-3 400 V AC coil

Schneider Electric LC1D12V7 TeSys Deca Contactor 3P 3NO AC-3 12 A 400 V AC Coil Contactor

Brand: Schneider Electric
Reference No: LC1D12V7
Catalog No: LC1D12V7
Series: TeSys Deca
Tariff Code (HS): 853650
Rated Current: 12 A
Power: 5.5 kW
Rated Voltage: 400 V AC
Poles: 3P
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$27.89

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

Rated 12 A AC-3 at up to 440 V, the Schneider Electric LC1D12V7 is a TeSys Deca 3-pole (3NO) contactor that switches 5.5 kW motors at 400 V. It takes a 400 V 50/60 Hz AC coil, which lets it connect directly to a three-phase supply line without a separate control transformer, and ships with 1NO+1NC mirror-certified auxiliary contacts.

Technical Specifications

Reference LC1D12V7
Brand Schneider Electric
Range TeSys Deca
Product Type Contactor
Poles 3P (3NO)
Utilisation Category AC-1, AC-3, AC-3e, AC-4
Rated Operational Voltage (Ue) ≤ 690 V AC, 25-400 Hz / ≤ 300 V DC
Rated Operational Current (Ie), AC-3, ≤440V 12 A
Rated Operational Current (Ie), AC-1, ≤440V 25 A
Motor Power, AC-3 at 400 V 5.5 kW
Control Circuit Voltage (Uc) 400 V AC, 50/60 Hz
Inrush Power 70 VA
Rated Breaking Capacity at 440 V 250 A, IEC 60947
Rated Short-Time Withstand Current (Icw), 1 s 210 A at 40 degrees C
Rated Insulation Voltage (Ui) 690 V, IEC 60947-4-1
Auxiliary Contact Composition 1 NO + 1 NC, mirror contact
Terminal Type Screw clamp (power and control)
Maximum Operating Rate 3600 cyc/h at 60 degrees C
Mounting DIN rail or screw-fixing plate
IP Degree of Protection IP20, front face
Dimensions (H x W x D) 77 x 45 x 86 mm
Net Weight 325 g

Certifications & Standards

  • IEC 60947-4-1
  • UL
  • CSA
  • CCC
  • Marine

Selection Notes

The 400 V AC coil on the LC1D12V7 suits panels that run their control circuit straight off a three-phase 400 V feeder, avoiding a step-down control transformer entirely. Inrush draws 70 VA at pickup before settling to a lower holding value, so size any shared control transformer for the inrush figure if several contactors close together. For lower control voltages in the same frame, the 24 V and 230 V AC LC1D coil variants apply.

Technical Details

Short Description
TeSys Deca 3P contactor, 12A AC-3, 5.5kW at 400V, 400 V AC coil.
Rated Current (Ampere)
12 A
Rated Voltage (VAC)
400 V AC
Mounting Type
DIN rail or screw fixing
Protection Type
IP20
Catalog No
LC1D12V7
Number of Poles
3P
Power (kW)
5.5 kW
Delivery Date (Days)
30 days
Model Number
LC1D
Tariff Code
853650
