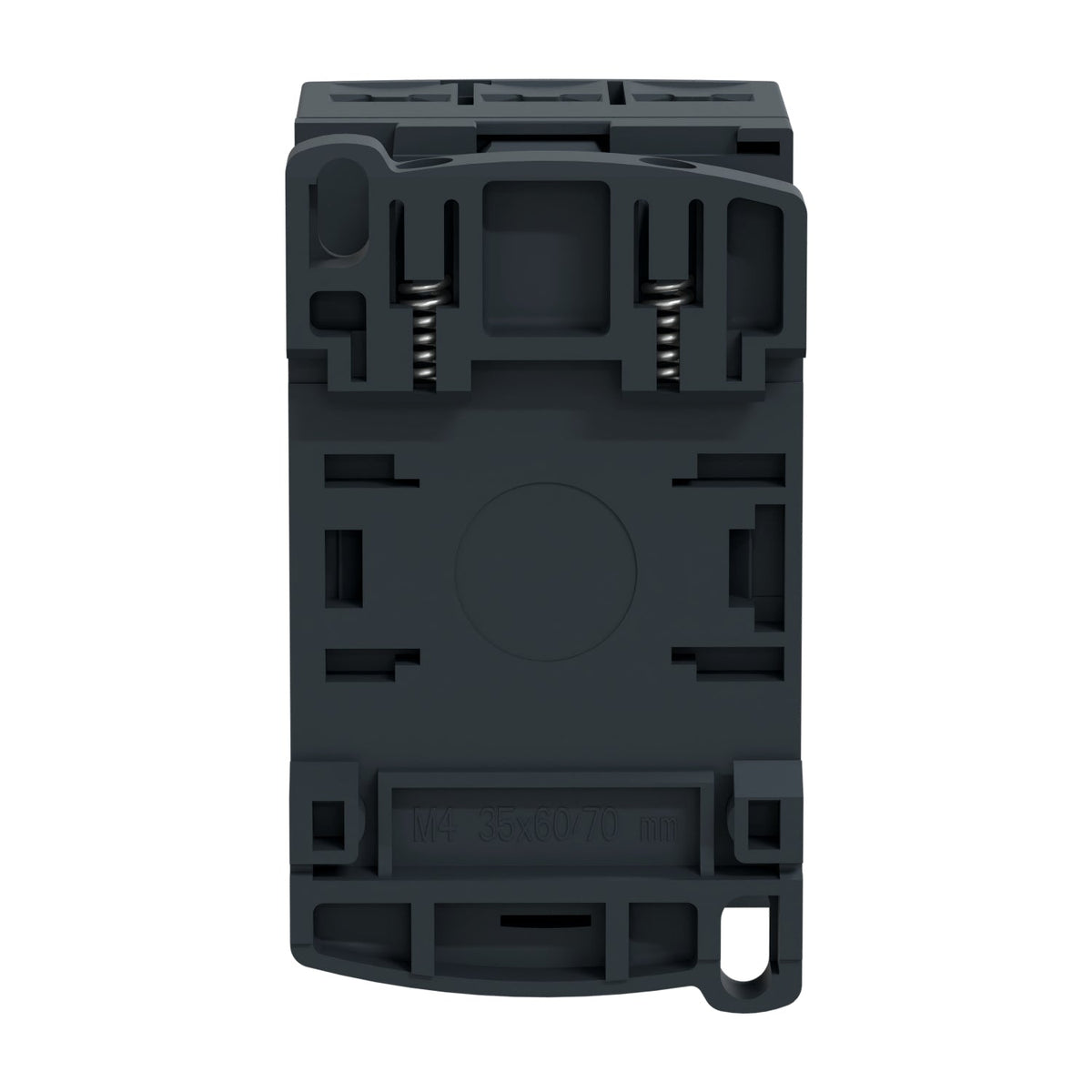

Schneider Electric LC1D12BNE TeSys Deca Advanced Contactor 3P 3NO AC-3 12 A 24-60 V AC/DC Coil Contactor

The Schneider Electric LC1D12BNE is a 3-pole TeSys Deca Advanced contactor rated 12 A AC-3 at up to 440 V, switching motors up to 5.5 kW at 400 V and 440 V. It uses a wide-band 24-60 V AC/DC electronic coil for direct PLC output connection and includes 1 built-in normally-open and 1 mirror-certified normally-closed auxiliary contact, with screw clamp terminals in a compact 45 mm housing.

Technical Specifications

Certifications & Standards

• CCC
• CSA
• EAC
• UL
• DNV-GL
• EN/IEC 60947-4-1

Selection Notes

The LC1D12BNE's 24-60 V AC/DC electronic coil accepts a direct PLC output without an interposing relay, and the built-in mirror NC contact lets this coil size be used in safety-related circuits. Up to a 480 V 35 A circuit breaker it reaches 85 kA SCCR, or up to 100 kA with a 600 V 30 A Class J/CC fuse. For a lower 9 A motor rating in the same coil family, use the LC1D09BNE; for the same 12 A rating with a wider 100-250 V coil instead, use the LC1D12KUE.
