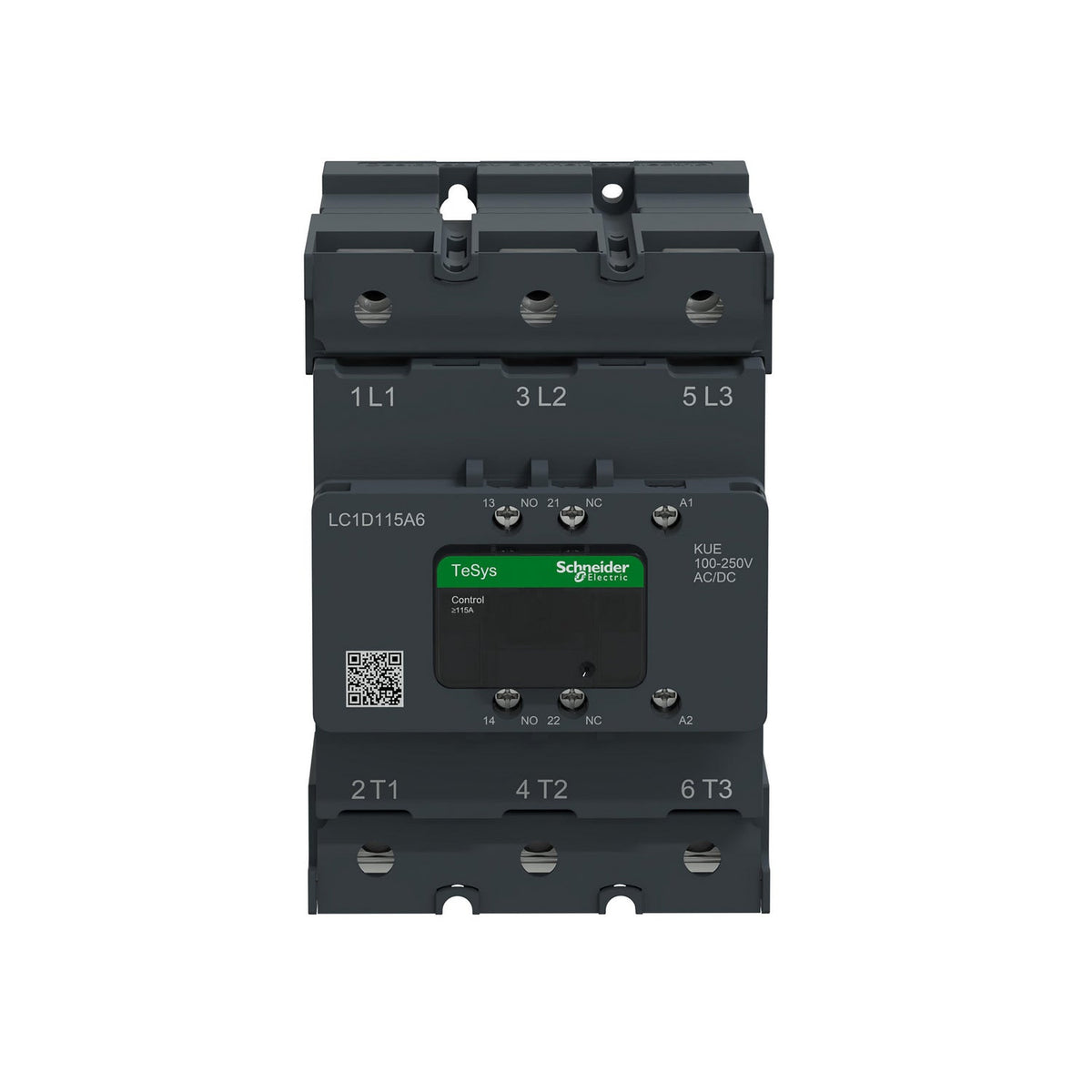

Schneider Electric LC1D115A6KUE TeSys Deca Advanced Contactor 3P 3NO AC-3 115 A 100-250 V AC/DC Coil Contactor

The Schneider Electric LC1D115A6KUE is a 3-pole TeSys Deca Advanced contactor rated 115 A AC-3 at up to 440 V, switching motors up to 55 kW at 400 V and 59 kW at 415 V. It uses a 100-250 V AC/DC wide-band electronic coil and connects via lugs-ring terminals or busbars, with 1 built-in normally-open and 1 mirror-certified normally-closed auxiliary contact.

Technical Specifications

Certifications & Standards

• CB Scheme
• cULus
• CE
• UKCA
• EN/IEC 60947-4-1
• EN/IEC 60947-5-1

Selection Notes

The LC1D115A6KUE connects via lugs-ring terminals or busbars rather than cable lugs, suiting panels built around busbar or ring-lug power distribution - an LRD43 overload relay can mount directly below it. Its AC-4 and 1000 V utilisation categories extend beyond pure AC-3 motor starting into heavier-duty switching. For the same 115 A frame with EverLink cable connectors instead of busbars, use the LC1D115AKUE; for a 150 A rating in the EverLink connection style, use the LC1D150AKUE.
