Schneider Electric LAG8N113 TeSys Giga 1NO+1NC Side Mount Push-In Auxiliary Contact Block

% $-18.05

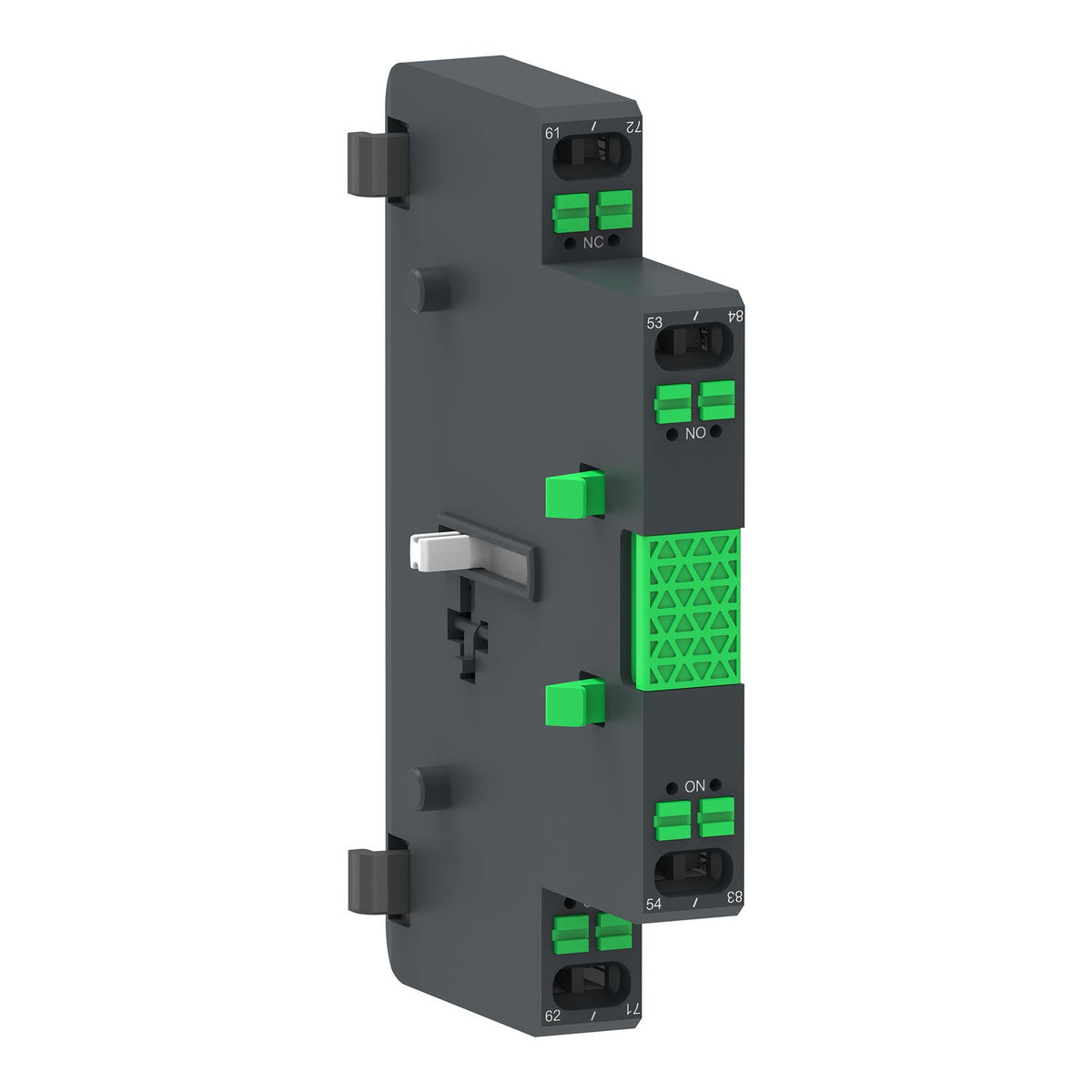

Schneider Electric LAG8N113 TeSys Giga auxiliary contact block 1NO+1NC side mount
Schneider Electric LAG8N113 TeSys Giga auxiliary contact block 1NO+1NC side mount

Schneider Electric LAG8N113 TeSys Giga 1NO+1NC Side Mount Push-In Auxiliary Contact Block

Brand: Schneider Electric
Reference No: LAG8N113
Catalog No: LAG8N113
Series: TeSys G
Tariff Code (HS): 853650
Rated Current: 10 A
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$18.05

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric LAG8N113 is a side-mounted auxiliary contact block for TeSys Giga LC1G contactors, providing 1 normally-open and 1 normally-closed instantaneous contact rated up to 10 A at 600 V AC. It connects via screw clamp terminals and is rated down to 17 V / 1 mA for low-energy PLC control applications. It provides IP20 protection and operates from -25°C to 60°C without derating up to 3000 m altitude.

Technical Specifications

Reference LAG8N113
Brand Schneider Electric
Range TeSys
Range of Product TeSys G
Device Short Name LAG8N
Product or Component Type Auxiliary contact block
Range Compatibility TeSys G LC1G
Mounting Location Side
Pole Contact Composition 1 NO + 1 NC
[Ue] Rated Operational Voltage 600 V AC 25-400 Hz
[Ith] Conventional Free Air Thermal Current 10 A (at 60°C)
[Ui] Rated Insulation Voltage 600 V (IEC 60947-5-1)
IP Degree of Protection IP20
Ambient Air Temperature (Operation) -25°C to 60°C
Net Weight 0.05 kg
Units per Package 64

Certifications & Standards

  • CB Scheme
  • CCC
  • cULus
  • CE
  • UKCA
  • EN/IEC 60947-5-1

Selection Notes

Specify the LAG8N113 where a TeSys Giga contactor needs one extra NO and one NC signalling point with standard screw clamp terminals. For the same contact composition with L1/R1 push-in terminals instead, use the LAG8N113P variant.

Technical Details

Short Description
1NO+1NC auxiliary contact block, side mount, 10 A Ith, 600 V AC, for TeSys Giga LC1G contactors.
Rated Current (Ampere)
10 A
Mounting Type
Side
Protection Type
IP20
Catalog No
LAG8N113
Delivery Date (Days)
30 days
Model Number
LAG8N
Tariff Code
853650
