Schneider Electric LAD9150SD19 TeSys Deca Advanced Star-Delta Power Connection Set 3P for Contactor Accessory

% $-435.81

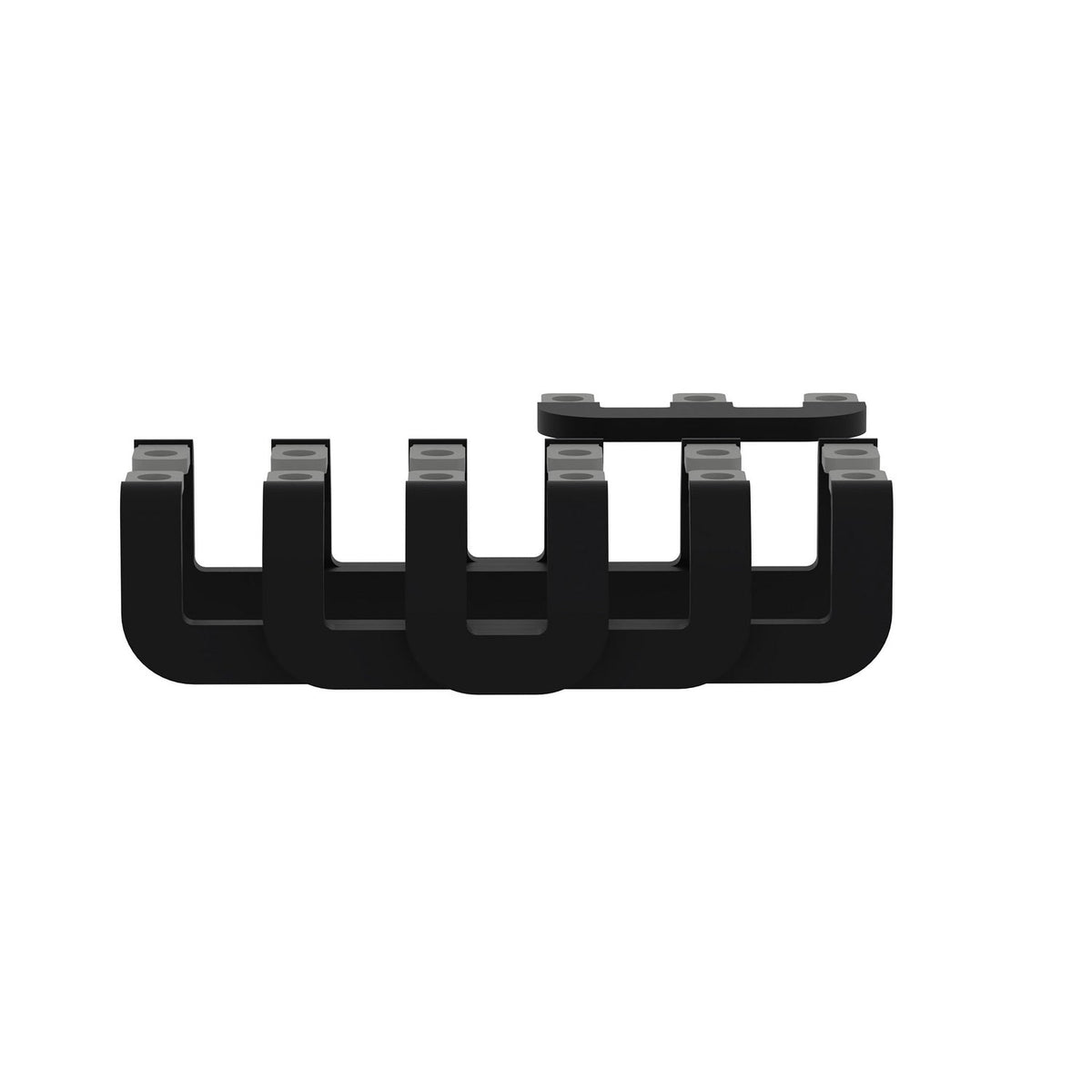

Schneider Electric LAD9150SD19 TeSys Deca star-delta power connection set for LC1D115A6-150A6
Schneider Electric LAD9150SD19 TeSys Deca star-delta power connection set for LC1D115A6-150A6

Schneider Electric LAD9150SD19 TeSys Deca Advanced Star-Delta Power Connection Set 3P for Contactor Accessory

Brand: Schneider Electric
Reference No: LAD9150SD19
Catalog No: LAD9150SD19
Series: TeSys Deca
Tariff Code (HS): 853690
Poles: 3P
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$435.81

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric LAD9150SD19 is a star-delta busbar set for building a star-delta starter entirely from 115 A to 150 A TeSys Deca Advanced contactors. It supplies line-delta bars and star bars that attach directly to the LC1D115A6-150A6 contactor power connectors to form the star-delta assembly. It operates from -40°C to 70°C at altitudes up to 3000 m without derating.

Technical Specifications

Reference LAD9150SD19
Brand Schneider Electric
Range TeSys Deca
Device Short Name LAD9
Product or Component Type Set of connections (star-delta bars)
Poles 3P
Electrical Circuit Type Star-delta
Product Compatibility LC1D115, LC1D150
Quantity per Set 1
Net Weight 0.74 kg
Ambient Air Temperature (Storage) -60°C to 80°C
Units per Package 6
GTIN 3606487159452

Certifications & Standards

  • EN/IEC 60947-4-1
  • UL 60947-4-1
  • CSA C22.2 No 60947-4-1
  • GB/T 14048.4

Selection Notes

Specify the LAD9150SD19 when all three contactors in the star-delta starter are the same 115-150 A frame. If the star contactor is a smaller 40-65 A TeSys Deca unit instead, use the mixed-frame LAD9150SD17 kit.

Technical Details

Short Description
Star-delta power connection set (line-delta and star bars) for LC1D115A6-150A6 TeSys Deca Advanced contactors.
Catalog No
LAD9150SD19
Number of Poles
3P
Delivery Date (Days)
30 days
Model Number
LAD9
Tariff Code
853690
