Schneider Electric LA9G970 TeSys Giga Mechanical Interlock IP20 for LC1G115-500 Contactor Accessory

% $-31.31

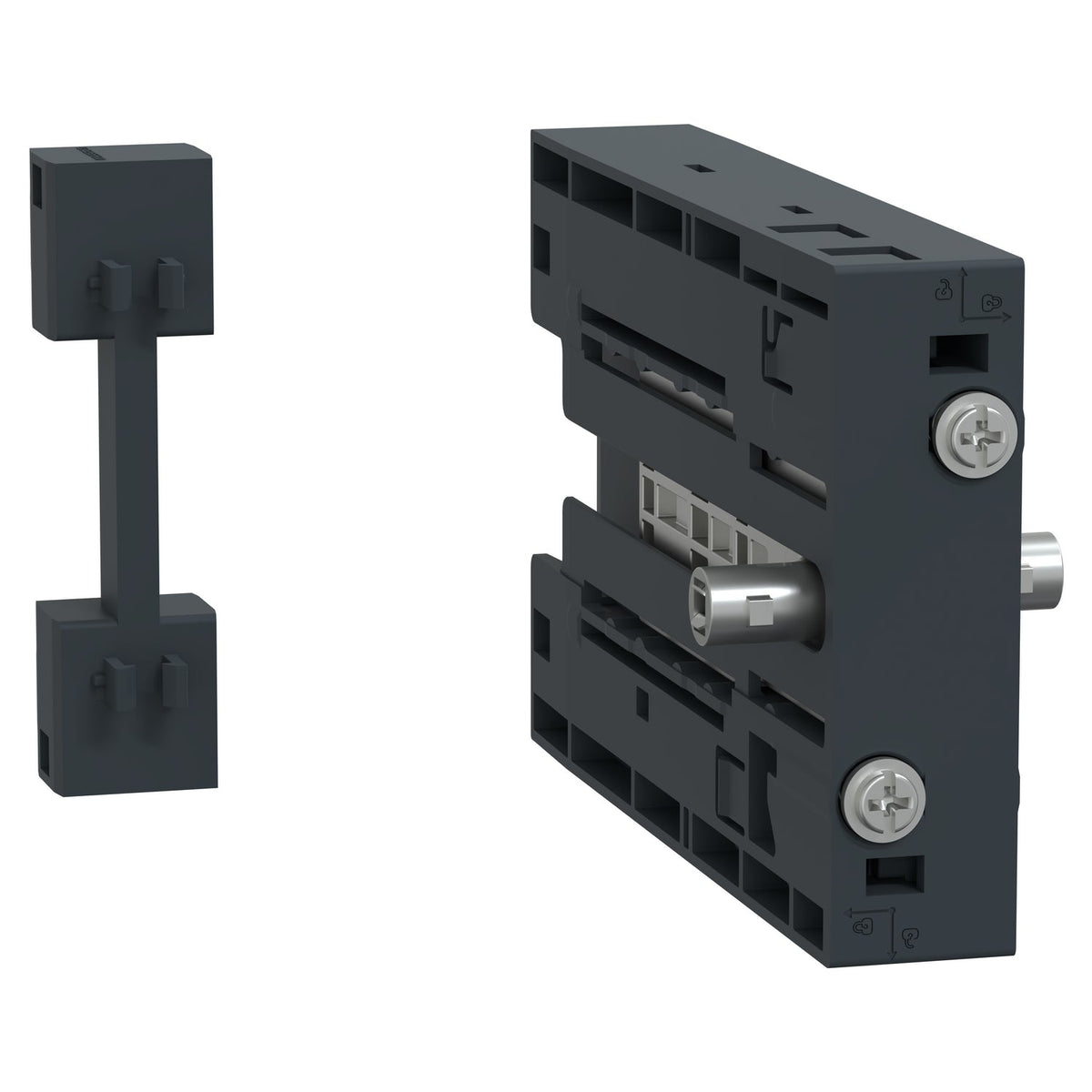

Schneider Electric LA9G970 TeSys Giga mechanical interlock IP20
Schneider Electric LA9G970 TeSys Giga mechanical interlock IP20

Schneider Electric LA9G970 TeSys Giga Mechanical Interlock IP20 for LC1G115-500 Contactor Accessory

Brand: Schneider Electric
Reference No: LA9G970
Catalog No: LA9G970
Tariff Code (HS): 853690
Poles: 3P
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$31.31

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric LA9G970 is a TeSys Giga mechanical interlock for LC1G115-500 contactors sharing an identical frame, built for reversing and changeover assemblies without electrical interlocking. It provides IP20 protection and operates across -25 to 60 °C up to 3000 m altitude without derating.

Technical Specifications

SKU LA9G970
GTIN 3606481916068
Brand Schneider Electric
Range TeSys Giga
Device short name LA9G
Product type Mechanical interlock
Accessory category Interlocking accessory
Interlocking type Mechanical
Range compatibility TeSys Giga
Product compatibility LC1G115-500, LC1G205-475
Poles 3P, 4P
Electrical circuit type Reversing, star-delta, changeover
Dimensions H x W x D 50 x 80 x 120 mm
Net weight 0.25 kg
IP degree of protection IP20
Pollution degree 3
Operating altitude 3000 m without derating
Ambient temperature, operation -25 to 60 °C
Country of origin China

Certifications & Standards

  • EN/IEC 60947-4-1
  • UL 60947-4-1
  • CSA C22.2 No 60947-4-1
  • GB/T 14048.4

Selection Notes

The LA9G970 interlocks two same-frame LC1G contactors spanning the full 115-500 A range, covering reversing, star-delta, and changeover circuits in one part. Where the two contactors being interlocked are different frame sizes within the family (115-225 paired with 265-500), the LA9G971 interlock is the correct part instead.

Technical Details

Short Description
TeSys Giga mechanical interlock, IP20, for LC1G115-500 contactors in an identical frame.
Mounting Type
Between paired contactors
Protection Type
IP20
Catalog No
LA9G970
Number of Poles
3P
Delivery Date (Days)
30 days
Model Number
LA9G970
Tariff Code
853690
