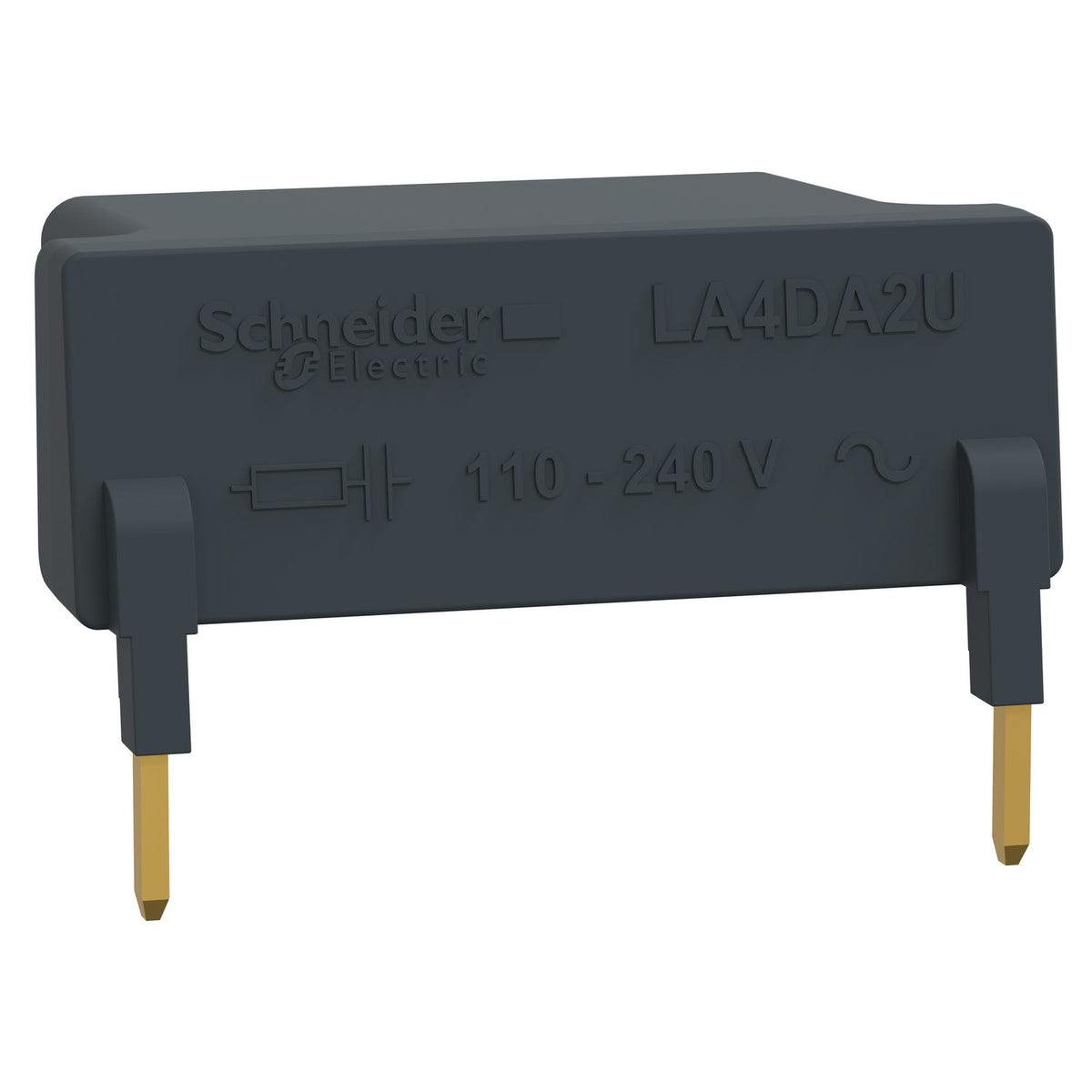

Schneider Electric LA4DA2U TeSys Deca RC Suppressor Module 110-240 V AC for LC1D80-D150 Contactor Accessory

Name: Schneider Electric LA4DA2U TeSys Deca RC Suppressor Module 110-240 V AC for LC1D80-D150 Contactor Accessory
Brand: Schneider Electric
SKU: LA4DA2U
Price: 14.36 USD
Availability: OutOfStock
Rating: 5.0 (10 reviews)

Brand: Schneider Electric

Reference No: LA4DA2U

Catalog No: LA4DA2U

Tariff Code (HS): 853690

Rated Voltage: 110-240 V AC

Poles: 3P

Stock: 0

Delivery time: 30 business day(s)

Shipping Origin: Türkiye EXW

$14.36

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

Description

The Schneider Electric LA4DA2U is a TeSys Deca RC suppressor module for 110-240 V AC control circuits, fitted on top of LC1D80-D150 3-pole and LC1D40-D115 4-pole contactors. It limits the coil-switching transient voltage to 3 Uc maximum, protecting nearby electronics from the switching spike.

Technical Specifications

SKU	LA4DA2U
GTIN	3389110233063
Brand	Schneider Electric
Range	TeSys Deca
Device short name	LA4D
Product type	Suppressor module
Product compatibility	3P LC1D80-D150, 4P LC1D40-D115
Suppressor technology	RC circuit
Control circuit voltage Uc	110-240 V AC, 50/60 Hz
Maximum peak voltage	3 Uc
Mounting	Top of contactor, by screws
IP degree of protection	IP2X
Net weight	0.018 kg
Ambient temperature, operation	-25 to 55 °C
Country of origin	France

Certifications & Standards

UL
CSA
IEC 60947-5-1
EN 60947-5-1
UL 60947-5-1
CSA C22.2 No 60947-5-1
GB/T 14048.5

Selection Notes

Choose the LA4DA2U for 110-240 V AC coil circuits; for 24-48 V AC coils on the same LC1D80-D150/LC1D40-D115 contactor range, use the LA4DA2E instead. The RC design is suited to AC coils where suppression without added turn-off delay matters.

Technical Details

Short Description

TeSys Deca RC suppressor module, 110-240 V AC coil, for LC1D80-D150 (3P) / LC1D40-D115 (4P) contactors.

Rated Voltage (VAC)

110-240 V AC

Mounting Type

Top of contactor, by screws

Protection Type

IP2X

Catalog No

LA4DA2U

Number of Poles

Delivery Date (Days)

30 days

Model Number

LA4DA2U

Tariff Code

853690
