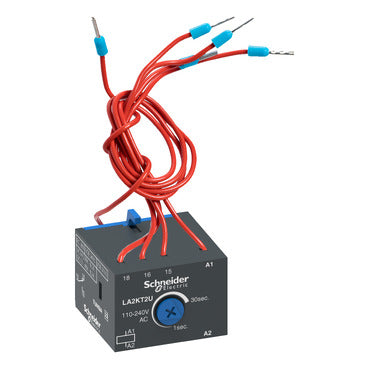

Schneider Electric LA2KT2U TeSys K Time Delay Auxiliary Contact Block 1 C/O

Schneider Electric LA2KT2U TeSys K Time Delay 1 C/O On-Delay 1-30 s 110-240 V AC Auxiliary Contact Block

Name: Schneider Electric LA2KT2U TeSys K Time Delay 1 C/O On-Delay 1-30 s 110-240 V AC Auxiliary Contact Block
Brand: Schneider Electric
SKU: LA2KT2U
Price: 93.58 USD
Availability: OutOfStock
Rating: 5.0 (10 reviews)

Brand: Schneider Electric

Reference No: LA2KT2U

Tariff Code (HS): 85365080

Rated Current: 2 A

Rated Voltage: 110-240 V

Poles: 3P

Stock: 0

Delivery time: 30 business day(s)

Shipping Origin: Türkiye EXW

$93.58

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

Description

The Schneider Electric LA2KT2U is a TeSys K electronic time delay auxiliary contact block that fits contactors and control relays in the LC1K, LP1K and CA.K ranges with 110-240 V AC/DC coils. It adds one 1 C/O contact rated up to 2 A at 240 V AC, with an on-delay setting range of 1-30 seconds.

Technical Specifications

Reference	LA2KT2U
Brand	Schneider Electric
Device Short Name	LA1
Range Compatibility	TeSys K LC1K, CA2K, CA3K, CA4K
Mounting Location	Front
Pole Contact Composition	1 C/O
Contacts Operation	Time delay, on-delay
Time Delay Range	1-30 s
Rated Operational Voltage Ue (Control Circuit)	110-240 V AC
Rated Operational Voltage Ue (Signalling Circuit)	240 V AC
Ith (Signalling Circuit)	2 A
Compatible Coil Codes	F7-U7, FD-UD (110-240 V AC/DC coils)
Insulation Resistance	> 10 MOhm
Connections	Slip-on terminals, attached wires
IP Degree of Protection	IP20
Ambient Air Temperature for Operation	-10...60 C
Net Weight	0.04 kg

Certifications & Standards

CE
UKCA
EN/IEC 60947-5-1

Selection Notes

The on-delay setting range of 1-30 s makes this block suited to sequencing a second contactor after a first one has closed, such as a star-delta changeover or a staggered motor start. It only fits contactors wound for 110-240 V AC/DC coils (codes F7-U7, FD-UD); for contactors on 24-48 V AC/DC coils, the LA2KT2E variant is the matching part.

Technical Details

Short Description

Schneider Electric LA2KT2U TeSys K time delay auxiliary contact block, 1 C/O, on-delay 1-30 s, 110-240 V AC coil.

Rated Current (Ampere)

2 A

Rated Voltage (VAC)

110-240 V

Mounting Type

Front, clip-on

Protection Type

IP20

Number of Poles

Delivery Date (Days)

30 days

Model Number

LA2KT2U

Tariff Code

85365080
