Schneider Electric K63F003UP Harmony K K63 63A 3P 60° Cam Changeover Switch

% $-231.18

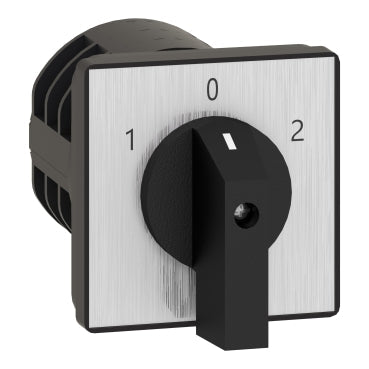

Schneider Electric K63F003UP Harmony K63 cam changeover switch - 63A 3P 60°
Schneider Electric K63F003UP Harmony K63 cam changeover switch - 63A 3P 60°

Schneider Electric K63F003UP Harmony K K63 63A 3P 60° Cam Changeover Switch

Brand: Schneider Electric
Reference No: K63F003UP
Series: Harmony K
Tariff Code (HS): 853650
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$231.18

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric K63F003UP is a Harmony K63 cam changeover switch with three poles, a 60-degree switching angle, and a 63 A conventional free air thermal current (Ith). Front-mounted with a 64 x 64 mm plate and screw-clamp terminals rated to 16 mm², it withstands a 10,000 A short-circuit current behind an 80 A gG fuse within an IP40 enclosure.

Technical Specifications

Reference K63F003UP
Brand Schneider Electric
GTIN 3389110083378
Range of product Harmony K
Component name K63
Cam switch function Changeover switch
Poles description 3P
Switching positions Right: 0 deg - 60 deg | Left: 0 deg - 300 deg
Switching angle 60 degrees
[Ith] conventional free air thermal current 63 A
[Ui] rated insulation voltage 690 V, pollution degree 3, IEC 60947-1
[Uimp] rated impulse withstand voltage 6 kV, EN/IEC 947-1
Short-circuit current 10000 A
Short-circuit protection 80 A cartridge fuse, type gG
IP degree of protection IP40, IEC 60529
Mounting Front, 4-hole fixing, 64 x 64 mm front plate
Electrical connection Screw clamp terminals, 2 x 10 mm² flexible / 2 x 16 mm² solid
Tightening torque 2.5 N·m
Overall dimensions (W x H x D) 64 x 64 x 132 mm
Net weight 0.59 kg
Ambient air temperature, operation -25...55 °C
Ambient air temperature, storage -40...70 °C

Certifications & Standards

  • cULus
  • IEC 60947-3

Selection Notes

The K63 body steps up to 63 A Ith with a 60-degree switching angle and a larger 64 x 64 mm front plate, sized for direct three-phase motor switching or changeover duty well beyond the 20 A K2 range. Screw-clamp terminals accept conductors up to 16 mm² solid, and the 10 kA short-circuit rating is backed by an 80 A gG cartridge fuse upstream. Choose the K1 or K2 body instead for control-circuit or light three-phase switching where 12-20 A is sufficient.

Technical Details

Short Description
Harmony K63 cam changeover switch, 3-pole, 63 A Ith, 60 degree switching angle, IP40, screw mounting.
Mounting Type
Front mounting, 4-hole fixing
Protection Type
IP40
Delivery Date (Days)
30 days
Model Number
K63
Tariff Code
853650
