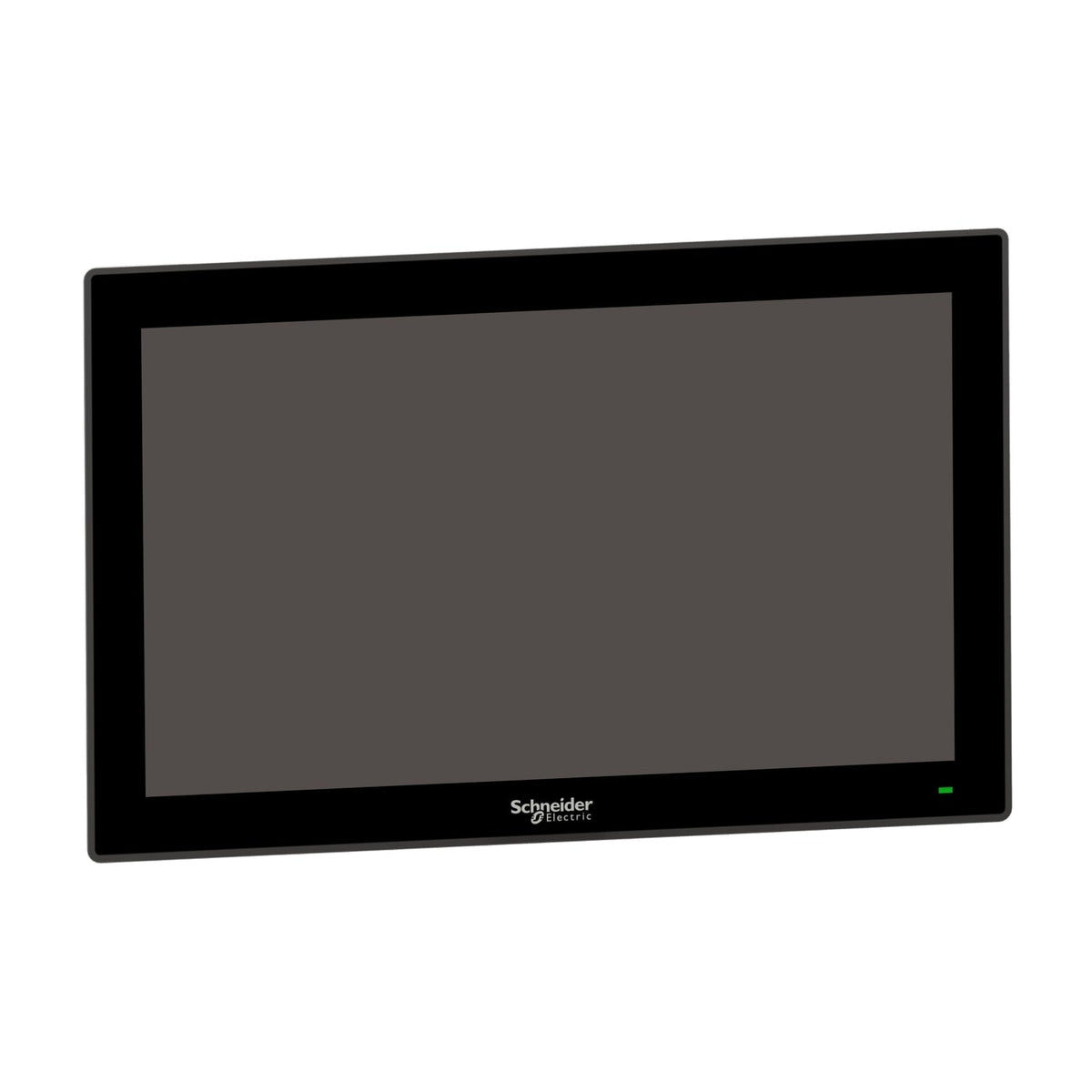

Schneider Electric HMIPSPS952D1X01 Harmony EP5 Performance Panel PC 18.5-inch Core i5 8GB HMI Operator Panel

The Schneider Electric HMIPSPS952D1X01 is a Harmony EP5 Performance-class panel PC with an 18.5-inch wide FWXGA touchscreen, an Intel Core i5 processor, 8 GB RAM, and a 128 GB mSATA SSD running Windows 10. It operates from a 12-24 V DC supply, draws 1.9 A, and carries an IP65 front-panel rating for panel-mount installation.

Technical Specifications

Certifications & Standards

• IEC 61000-4-2
• IEC 61000-4-3
• IEC 61000-6-4
• IEC 61000-6-5

Selection Notes

Choose the Performance-class HMIPSPS952D1X01 over the Optimized-class 15-inch panel PC in the same range when the application runs more than one Windows client at once or needs the larger 18.5-inch 16:9 screen for multi-pane SCADA layouts — the Core i5 CPU and 8 GB RAM give it roughly double the Optimized model's memory headroom. Both panel PCs share the same 12-24 V DC supply, 1.9 A draw, and IP65 front-panel rating, so the choice comes down to processing load and screen size rather than environmental rating.

Applications

Used as a Windows-based operator panel PC running multiple SCADA or MES client applications side by side, or displaying larger multi-pane dashboards on machines and lines where the smaller Optimized-class panel's single-application capacity is not enough, such as line-level supervisory stations alongside individual machine HMIs.
