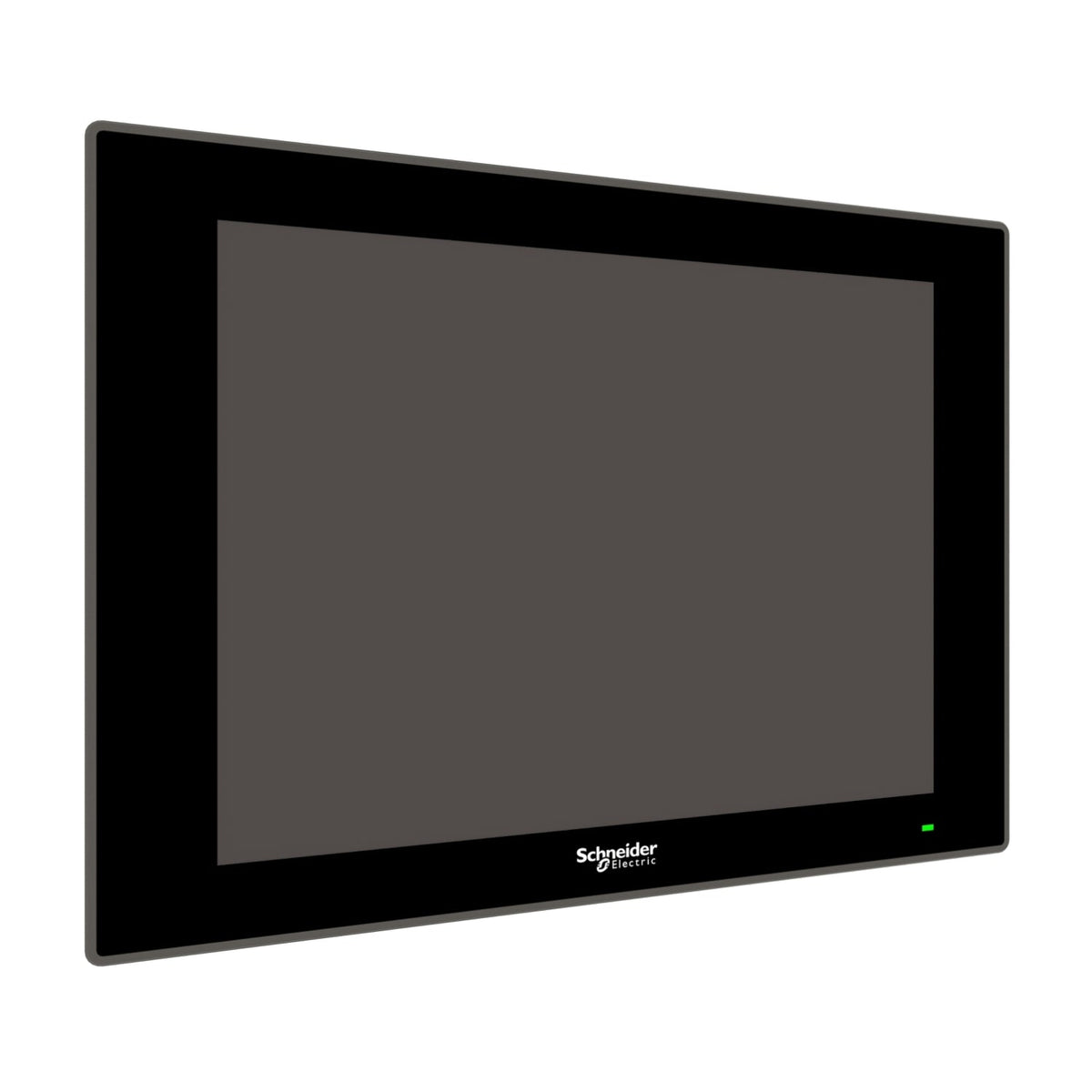

Schneider Electric HMIPSOS742D1W01 Harmony EP5 Optimized Panel PC 15-inch 4:3 Celeron 4GB HMI Operator Panel

The Schneider Electric HMIPSOS742D1W01 is a Harmony EP5 Optimized-class panel PC built around a 15-inch 4:3 XGA touchscreen, an Intel Celeron processor, 4 GB RAM, and a 128 GB mSATA SSD running Windows 10. It runs from a 12-24 V DC supply, draws 1.9 A, and carries an IP65 front-panel rating for direct panel mounting in a machine enclosure.

Technical Specifications

Certifications & Standards

• IEC 61000-4-2
• IEC 61000-4-3
• IEC 61000-6-4
• IEC 61000-6-5

Selection Notes

Pick the Optimized-class HMIPSOS742D1W01 over the Performance-class 18.5-inch panel PC in the same range when the application only needs a single HMI/SCADA client or a lightweight visualization task on a 15-inch 4:3 screen — the Celeron CPU and 4 GB RAM are sized for that load, not for running several Windows applications side by side. Its fanless, passively-cooled design keeps the panel sealed for IP65 front-panel service without a ventilation opening.

Applications

Used as a Windows-based operator panel PC in machine enclosures running EcoStruxure Machine SCADA Expert or third-party HMI/SCADA clients, on machines where a 15-inch 4:3 screen fits the existing panel cut-out, such as retrofits of older 4:3 operator stations in packaging, water treatment, and general machine-building applications.
