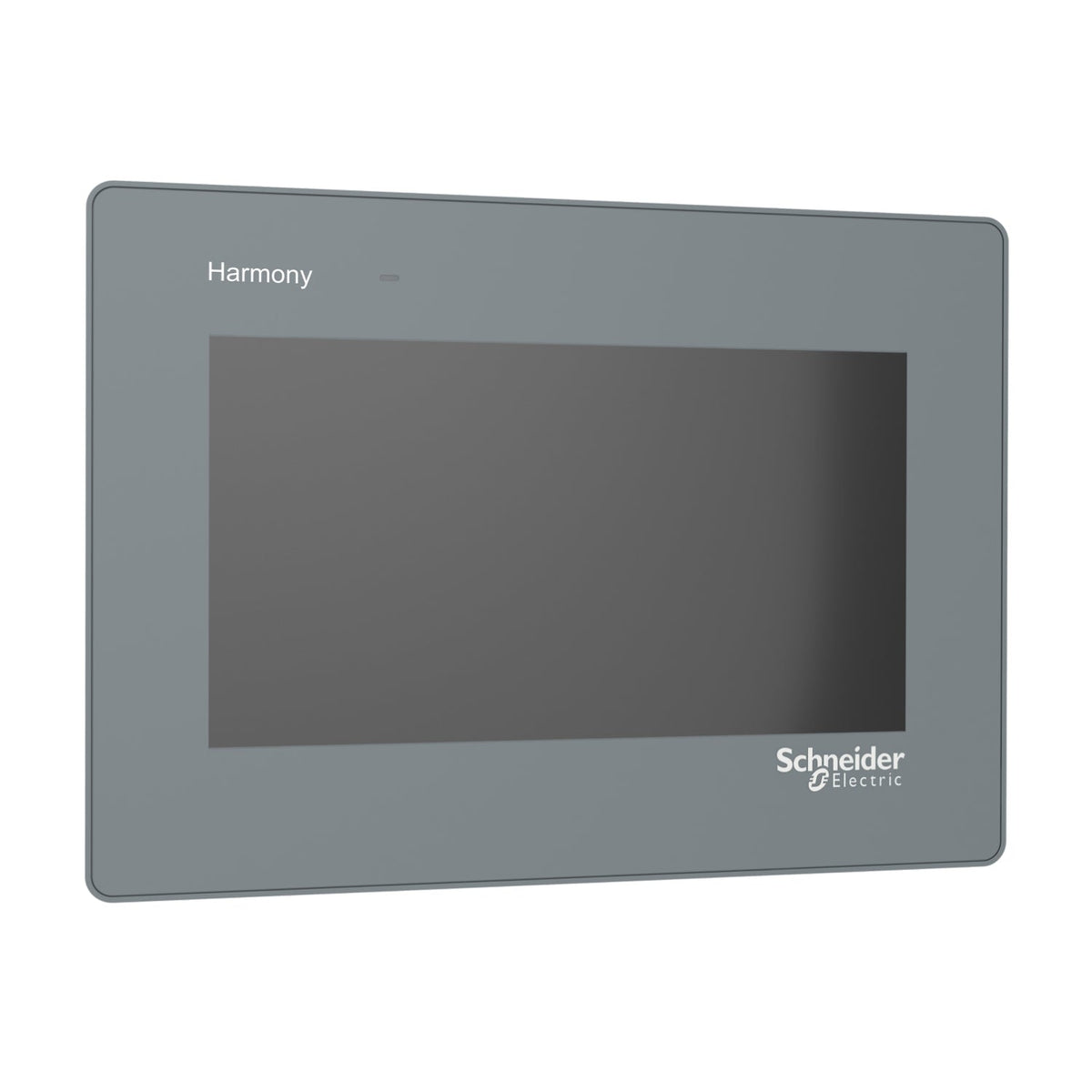

Schneider Electric HMIET6400 Easy Harmony ET6 7-inch Wide Touch Panel 800x480 16M Colors HMI Operator Panel

The Schneider Electric HMIET6400 is a 7-inch touch panel in the Easy Harmony ET6 range, built around a 800 x 480 (WVGA) color TFT display with 16 million colors and single-touch resistive sensing. It runs on 24 V DC, connects via COM1, COM2, Ethernet, USB host/device, and is configured with Vijeo Designer Basic software for machine-level operator interfaces.

Technical Specifications

Certifications & Standards

• CE
• UL
• IEC 61000-6-4
• IEC 61000-6-2
• IEC 61131-2
• UL 61010-2-201
• CSA C22.2 No 61010-1-201

Selection Notes

The HMIET6400 is the 7-inch member of the Easy Harmony ET6 line; pick it over the smaller or larger variants in the range when the panel cut-out and viewing distance call for a 7-inch screen specifically. Its WVGA resolution and 16M-color display, combined with COM1, COM2, Ethernet, USB host/device, suit OEM machine HMIs that need Modbus or Uni-TE supervision without a separate gateway.

Applications

Typical use cases include packaging lines, HVAC skids, pump stations, and general machine tool interfaces where the panel is flush-mounted into an enclosure door and wired directly to the controller over serial or Ethernet.
