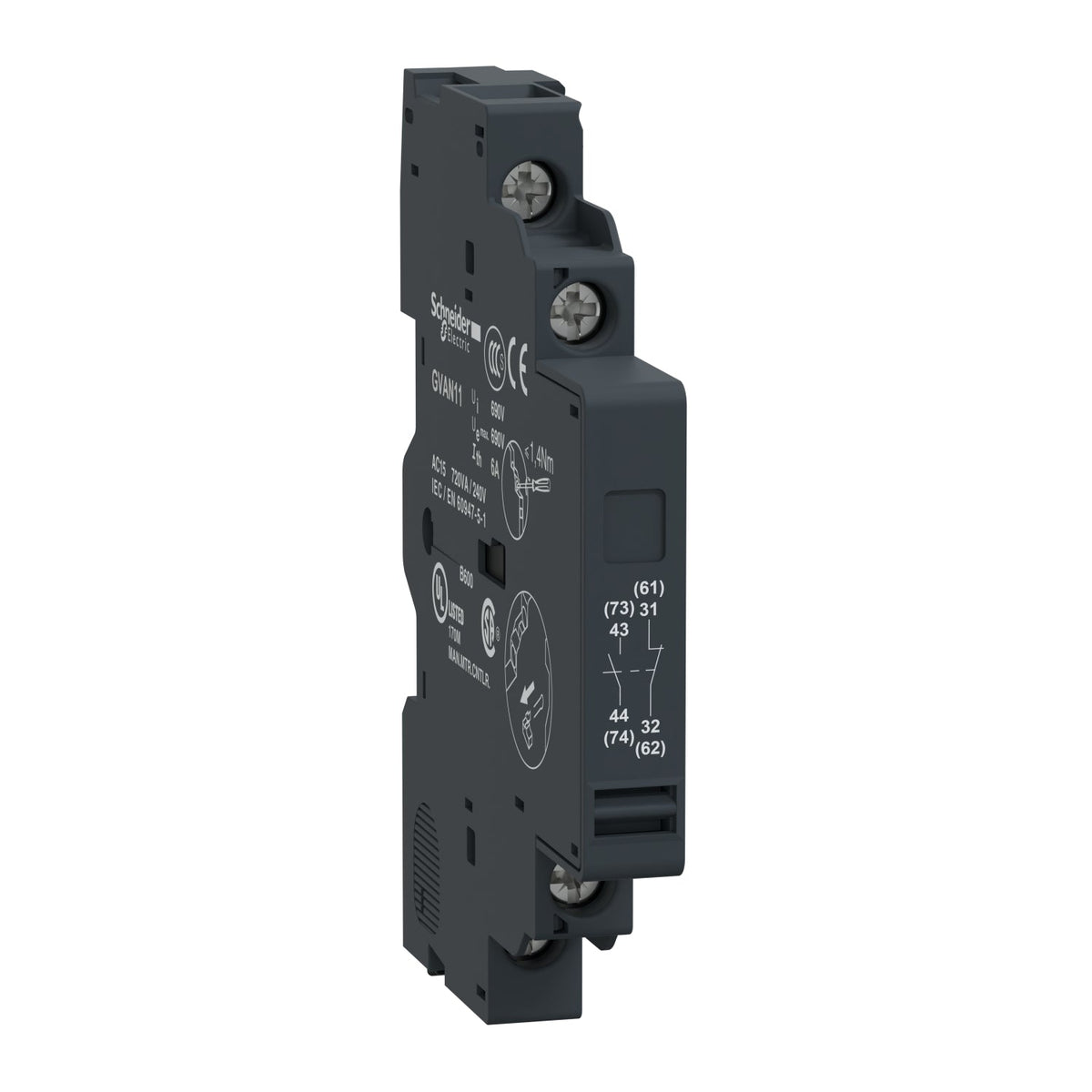

Schneider Electric GVAN11 TeSys Deca Auxiliary Contact Block 1NO+1NC Side Mount Automation Component

Name: Schneider Electric GVAN11 TeSys Deca Auxiliary Contact Block 1NO+1NC Side Mount Automation Component
Brand: Schneider Electric
SKU: GVAN11
Price: 6.55 USD
Availability: OutOfStock
Rating: 5.0 (10 reviews)

Brand: Schneider Electric

Reference No: GVAN11

Catalog No: GVAN11

Tariff Code (HS): 853890

Stock: 0

Delivery time: 30 business day(s)

Shipping Origin: Türkiye EXW

$6.55

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

Description

The Schneider Electric GVAN11 is a TeSys Deca auxiliary contact block for GV2 and GV3 motor circuit breakers, providing 1 NO plus 1 NC instantaneous contact rated to 6 A at 690 V AC. It mounts on the left side of the breaker, with up to two blocks stackable, and connects by screw-clamp terminals.

Technical Specifications

Reference	GVAN11
Brand	Schneider Electric
Range	TeSys Deca
Device short name	GVAN
Product or component type	Auxiliary contact block
Product compatibility	GV2P, GV2L, GV2ME, GV2LE, GV2RT, GV2LM, GV3P, GV3L
Mounting location	Left side (up to 2 blocks)
Pole contact composition	1 NO + 1 NC
[Ui] rated insulation voltage	600 V (UL 508) \| 690 V (IEC 60947-1) \| 600 V (CSA C22.2 No 14)
[Ue] rated operational voltage	48-690 V AC \| 24-240 V DC
[Ith] conventional free air thermal current	6 A
Minimum switching current/voltage	5 mA / 17 V
Protection type	GB2CB circuit breaker \| GG fuse 10 A
Tightening torque	1.4 N.m, screw-clamp terminals
Dimensions (H x W x D)	89 x 9.3 x 66 mm
Net weight	0.05 kg

Certifications & Standards

CB Scheme
CE
UKCA
CCC
cULus
EAC
EN/IEC 60947-5-1
UL 60947-4-1
CSA C22.2 No 60947-4-1
IEC/EN 60335-1
IEC/EN 60335-2-40

Selection Notes

Choose the GVAN11 where the signalling circuit needs an NO plus NC pair rated at the full 6 A/690 V side-mount level rather than the lighter 2.5 A front-mount GVAE11; up to two GVAN blocks can stack on the same side of a GV2 or GV3 breaker. For a pair of NO-only contacts at the same rating, the GVAN20 is the matching sibling.

Technical Details

Short Description

TeSys Deca side-mount auxiliary contact block for GV2/GV3 breakers, 1 NO + 1 NC, 6 A/690 V.

Mounting Type

Left side

Catalog No

GVAN11

Delivery Date (Days)

30 days

Model Number

GVAN

Tariff Code

853890
