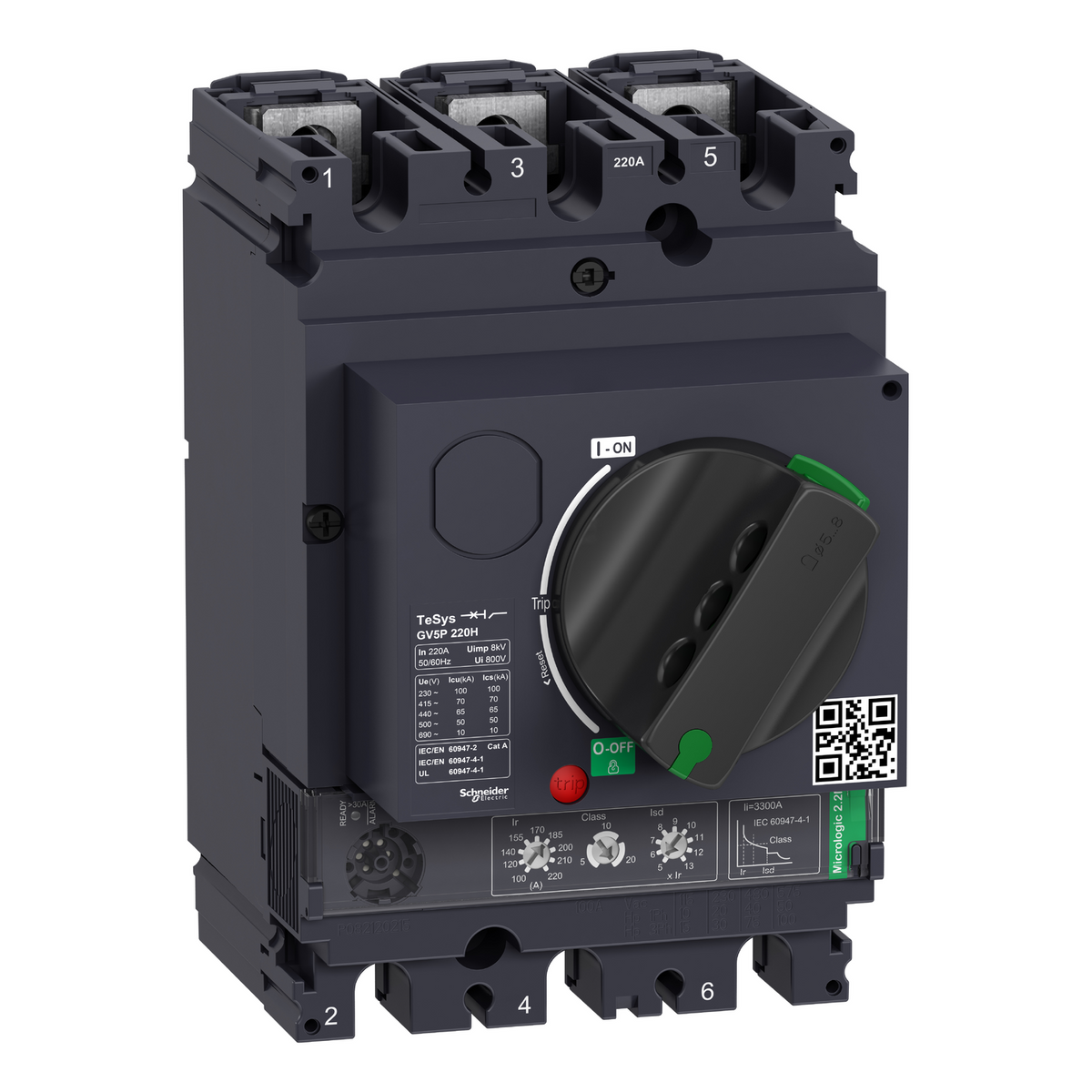

Schneider Electric GV5P220H TeSys GV5 3P 220 A 70 kA Electronic Motor Protection Circuit Breaker (MPCB)

The Schneider Electric GV5P220H is a 3P TeSys GV5 motor circuit breaker rated 220 A, with a breaking capacity of 70 kA at 400/415 V for protecting three-phase motors from 90-110 kW at 400 V. It combines electronic thermal-magnetic protection with fixed short-time delay and phase-unbalance protection. The breaker is operated by a direct rotary handle and terminates on screw connectors.

Technical Specifications

Certifications & Standards

• IECEE CB Scheme
• EAC
• EN/IEC 60947-1
• EN/IEC 60947-2
• EN/IEC 60947-4-1
• UL 60947-4-1
• CSA C22.2 No 60947-4-1

Selection Notes

The H suffix marks the 70 kA Icu breaking-capacity class at 400/415 V; the alternative suffix in the GV5 line steps up to a higher withstand rating for installations with greater prospective short-circuit current, avoiding an upstream current-limiting device. At 60 kA at 440 V rated conditional short-circuit current with an associated fuse, this 220 A frame protects motors in the 90-110 kW band at 400 V.
