Schneider Electric GV2AF3 TeSys GV2 Combination Block 32 A for LC1D09-D38 Automation Component

% $-4.27

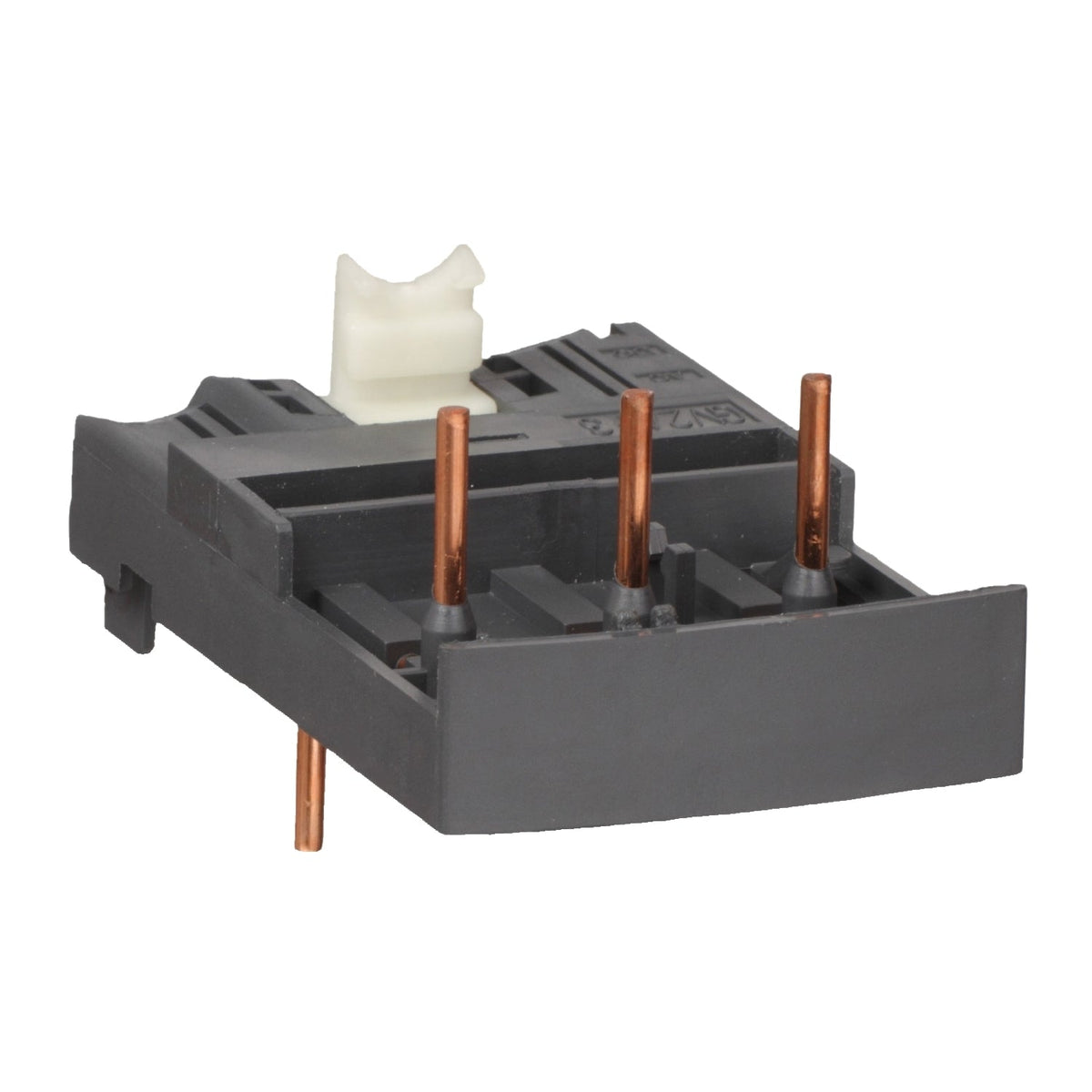

Schneider Electric GV2AF3 TeSys GV2 combination block for LC1D09-D38 contactor
Schneider Electric GV2AF3 TeSys GV2 combination block for LC1D09-D38 contactor

Schneider Electric GV2AF3 TeSys GV2 Combination Block 32 A for LC1D09-D38 Automation Component

Brand: Schneider Electric
Reference No: GV2AF3
Catalog No: GV2AF3
Tariff Code (HS): 853890
Rated Current: 32 A
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$4.27

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric GV2AF3 is a 32 A, 3-pole combination block that connects a TeSys GV2 motor circuit breaker or an LS1D32 fuse carrier directly to an LC1D09-D38 TeSys Deca contactor for a DIN-rail-mounted motor starter assembly. It eliminates separate power wiring between the breaker and the contactor, and is supplied as a connection accessory in sets of 10 units.

Technical Specifications

Reference GV2AF3
GTIN 3389110569063
Brand Schneider Electric
Range Linergy FT
Device Short Name GV2AF
Product Type Combination block
Range Compatibility TeSys GV2, TeSys Deca
Product Compatibility LC1D09...D38
Poles 3P
Rated Operational Current (Ie) 32 A
Net Weight 0.016 kg
Units per Package 10 (inner) / 140 (outer)

Selection Notes

Use the GV2AF3 for the LC1D09-D38 contactor frame when the assembly mounts directly on DIN rails; the equivalent block for LC1K/LP1K contactors uses a different reference (GV2AF01), and the LAD311-bracket-mounted version of this same GV2-to-LC1D09-D38 pairing uses the GV2AF4 instead.

Technical Details

Short Description
Combination block, 32 A, connecting TeSys GV2 to LC1D09-D38 contactor, 3P
Rated Current (Ampere)
32 A
Mounting Type
DIN rail
Catalog No
GV2AF3
Delivery Date (Days)
30 days
Model Number
GV2AF3
Tariff Code
853890
