Schneider Electric G20-25SHT415AC GoPact MCCB 200-250 Shunt Release 380-415 V AC Circuit Breaker Accessory

% $-36.23

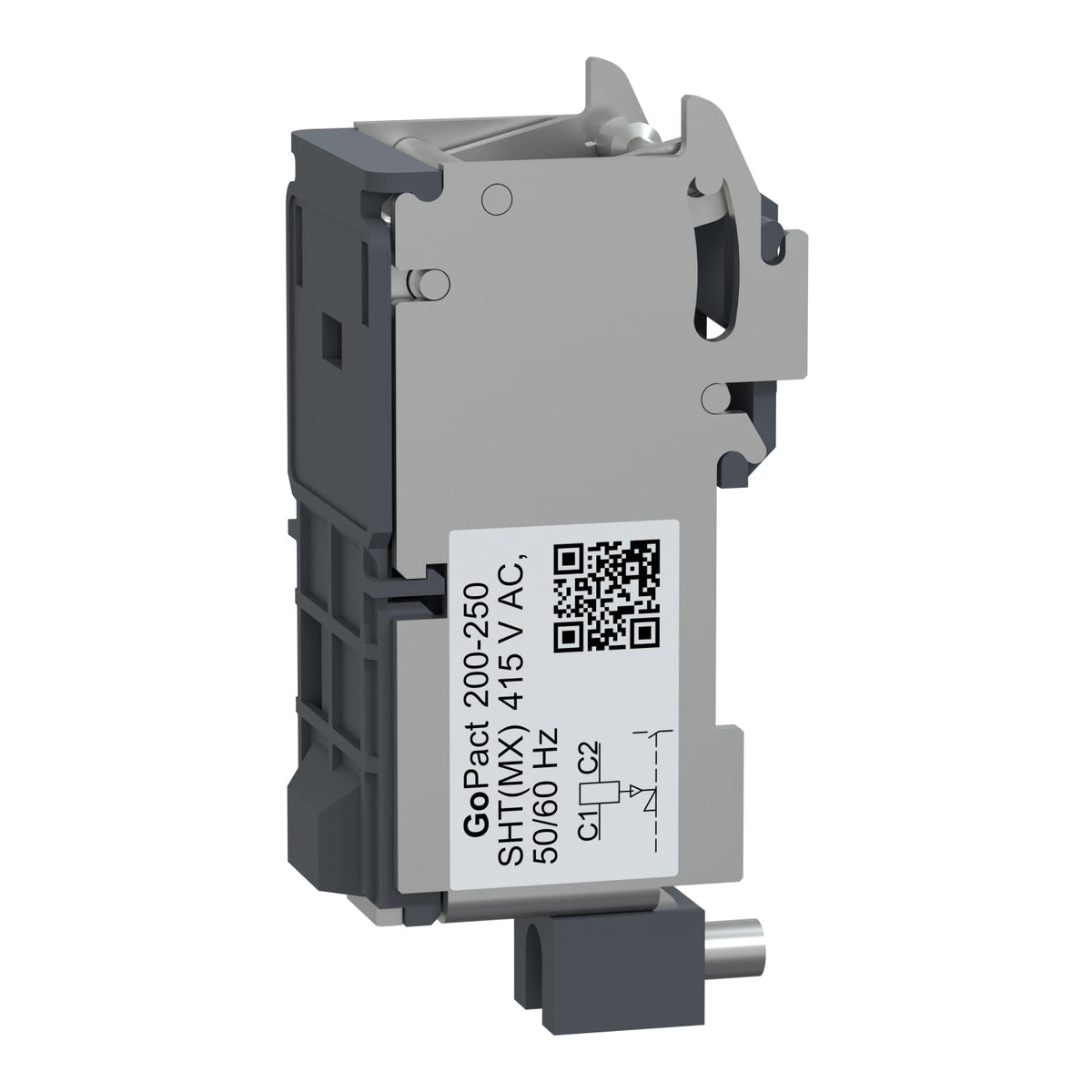

Schneider Electric G20-25SHT415AC GoPact MCCB 200-250 shunt-trip release accessory
Schneider Electric G20-25SHT415AC GoPact MCCB 200-250 shunt-trip release accessory

Schneider Electric G20-25SHT415AC GoPact MCCB 200-250 Shunt Release 380-415 V AC Circuit Breaker Accessory

Brand: Schneider Electric
Reference No: G20-25SHT415AC
Catalog No: G20-25SHT415AC
Series: GoPact MCCB
Tariff Code (HS): 853890
Rated Voltage: 415 V AC
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$36.23

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric G20-25SHT415AC is an MX shunt-trip release sized for a 415 V AC 50/60 Hz control circuit, fitting both the GoPact MCCB 200 and GoPact MCCB 250. Energizing the coil above 0.7 times Un opens the breaker on command, giving a remote-trip path separate from the main power circuit. Maximum response time is 25 ms.

Technical Specifications

Reference G20-25SHT415AC
Brand Schneider Electric
Range GoPact MCCB
Product / Component Type Voltage release
Device Short Name MX
Device Application Control
Compatible Breakers GoPact MCCB 200, GoPact MCCB 250
Release Type Shunt trip
[Uc] Control Circuit Voltage 415 V AC 50/60 Hz
Threshold Tripping Voltage 0.7...1.1 Un opening
Max Pick-up Power Consumption 5 VA
Response Time 25 ms

Selection Notes

Order the 415 V AC coil version instead of the 240 V AC G20-25SHT240AC when the switchboard control circuit is already run at 380/415 V AC, avoiding a separate control transformer for this release. As with any shunt trip, it only fires when energized above 0.7 times Un, so pair it with an undervoltage release on the same breaker if the application must also trip on loss of supply.

Technical Details

Short Description
Schneider Electric G20-25SHT415AC MX shunt-trip release for GoPact MCCB 200/250, 415 V AC, 25 ms response time.
Rated Voltage (VAC)
415 V AC
Catalog No
G20-25SHT415AC
Delivery Date (Days)
30 days
Model Number
MX Shunt Release
Tariff Code
853890
