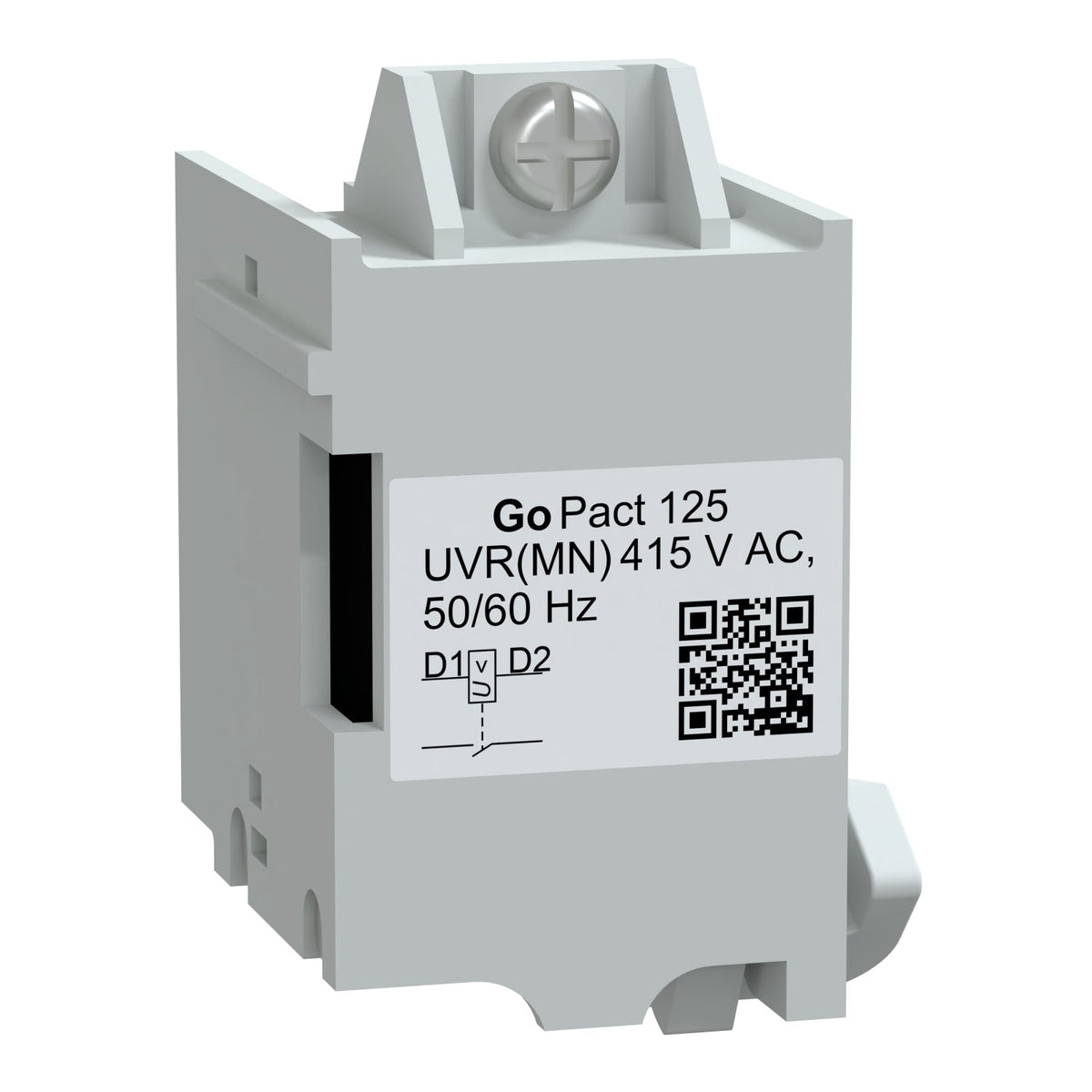

Schneider Electric G12UVR415AC GoPact MCCB 125 undervoltage release accessory

Schneider Electric G12UVR415AC GoPact MCCB 125 Undervoltage Release 380-415 V AC Circuit Breaker Accessory

Name: Schneider Electric G12UVR415AC GoPact MCCB 125 Undervoltage Release 380-415 V AC Circuit Breaker Accessory
Brand: Schneider Electric
SKU: G12UVR415AC
Price: 47.14 USD
Availability: OutOfStock
Rating: 5.0 (10 reviews)

Brand: Schneider Electric

Reference No: G12UVR415AC

Catalog No: G12UVR415AC

Series: GoPact MCCB

Tariff Code (HS): 853890

Rated Voltage: 415 V AC

Stock: 0

Delivery time: 30 business day(s)

Shipping Origin: Türkiye EXW

$47.14

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

Description

The Schneider Electric G12UVR415AC is an MN undervoltage release fitted to the GoPact MCCB 125, wired to a 415 V AC 50/60 Hz control circuit. It opens the breaker once the supply voltage falls below 0.7 times Un, with opening guaranteed below 0.35 times Un, and holds the breaker closed above 0.85 times Un. Maximum response time is 25 ms.

Technical Specifications

Reference	G12UVR415AC
Brand	Schneider Electric
Range	GoPact MCCB
Product / Component Type	Voltage release
Device Short Name	MN
Device Application	Control
Compatible Breaker	GoPact MCCB 125
Release Type	Undervoltage release
[Uc] Control Circuit Voltage	415 V AC 50/60 Hz
Threshold Tripping Voltage	0.35...0.7 Un opening, 0.85...1.1 Un closing
Max Holding Power Consumption	3.5 VA
Max Pick-up Power Consumption	5 VA
Response Time	25 ms

Selection Notes

Specify the G12UVR415AC when the GoPact MCCB 125 must open automatically on loss or sag of its 415 V AC control supply rather than relying on an operator - useful where downstream equipment must not re-energize unexpectedly after a dip. Because opening is only guaranteed below 0.35 times Un and merely possible up to 0.7 times Un, it is not a substitute for a shunt-trip release where a fast, voltage-independent remote-trip signal is required.

Technical Details

Short Description

Schneider Electric G12UVR415AC MN undervoltage release for GoPact MCCB 125, 415 V AC control voltage, 25 ms response time.

Rated Voltage (VAC)

415 V AC

Catalog No

G12UVR415AC

Delivery Date (Days)

30 days

Model Number

MN Undervoltage Release

Tariff Code

853890
