Schneider Electric G12-25AUX240 GoPact MCCB 125-250 Auxiliary Contact OF/SD 240 V AC Circuit Breaker Accessory

% $-24.43

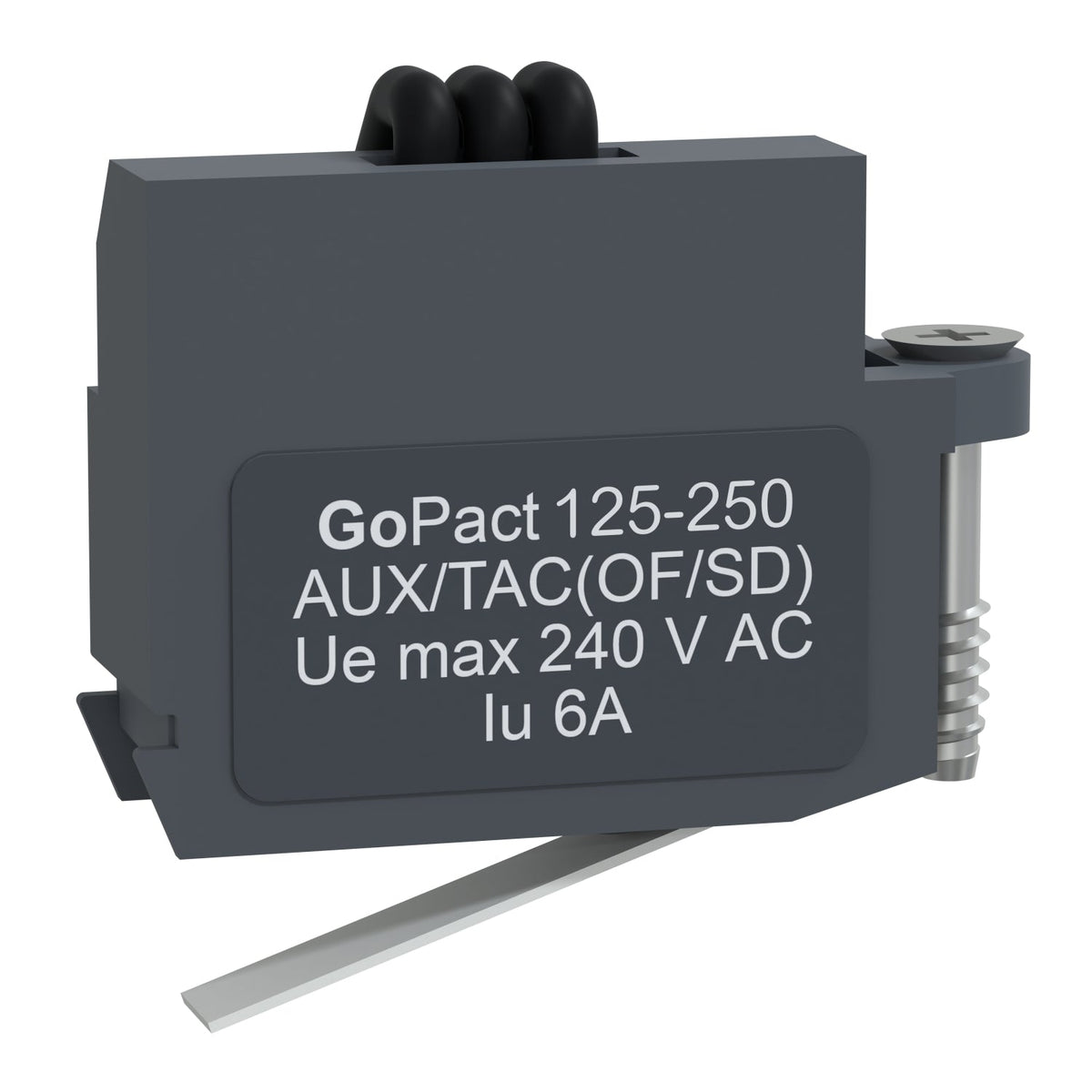

Schneider Electric G12-25AUX240 GoPact MCCB auxiliary contact OF/SD - 240 V AC
Schneider Electric G12-25AUX240 GoPact MCCB auxiliary contact OF/SD - 240 V AC

Schneider Electric G12-25AUX240 GoPact MCCB 125-250 Auxiliary Contact OF/SD 240 V AC Circuit Breaker Accessory

Brand: Schneider Electric
Reference No: G12-25AUX240
Catalog No: G12-25AUX240
Series: GoPact MCCB
Tariff Code (HS): 853890
Rated Voltage: 240 V AC
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$24.43

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric G12-25AUX240 is an auxiliary contact for GoPact MCCB 125, 200 and 250 moulded case circuit breakers, giving remote OF (open/closed) and SD (tripped-on-fault) status indication at 240 V AC. It is a 1 NO/NC common-point changeover contact, pre-wired with a 500 mm, 0.5 mm² cable and mounted inside the breaker by screws.

Technical Specifications

Reference G12-25AUX240
Brand Schneider Electric
Range of Product GoPact MCCB
Device Short Name OF and SD
Product or Component Type Auxiliary contact
Device Application Breaker status monitoring
Range Compatibility GoPact MCCB 125, 200, 250
Signal Contacts Composition 1 NO/NC
Local Signalling ON/OFF (open/close), trip indicator for voltage release, trip indicator for electrical fault
Mounting Mode By screws, inside breaker
[Ith] Conventional Free Air Thermal Current 6 A
[Ue] Rated Operational Voltage 240 V AC
[Ie] Rated Operational Current AC-12/AC-14: 6 A at 12-240 V AC; DC-12: 0.25-6 A at 12-220 V DC
Auxiliary Connection Terminal Pre-wired, 0.5 mm²
Cable Length 500 mm

Selection Notes

G12-25AUX240 gives two status signals on a single contact block: OF reports whether the breaker's main contacts are open or closed, while SD reports that the breaker tripped on an electrical fault, overload or short circuit, or that a shunt/undervoltage release operated. The 6 A, 240 V AC rating covers typical PLC-input or indicator-lamp wiring, and the factory-fitted 500 mm cable avoids field terminal work. It fits the GoPact MCCB 125, 200 and 250 frames on one reference.

Technical Details

Short Description
Auxiliary contact OF/SD for GoPact MCCB 125/200/250, 1 NO/NC, 240 V AC, pre-wired 500 mm.
Rated Voltage (VAC)
240 V AC
Mounting Type
Internal, by screws, pre-wired
Catalog No
G12-25AUX240
Delivery Date (Days)
30 days
Model Number
OF and SD auxiliary contact
Tariff Code
853890
