Part number
C63W35E630
Model no
NSX630HB2
$4,583.73 On request Dispatch — · From TürkiyeGet a Quote

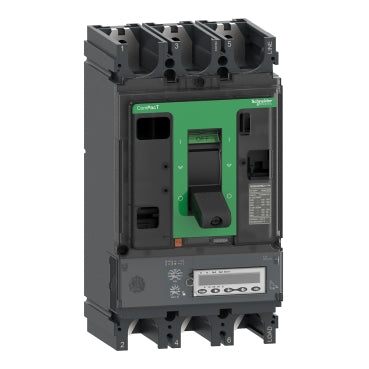

Schneider Electric C63W35E630 ComPacT NSX630HB2 3P 630 A 100 kA MicroLogic 5.3 E Moulded Case Circuit Breaker

NSX630HB2 3P 630 A 100 kA MicroLogic 5.3 E MCCB, fixed backplate mount.

Rated current
630 A
Rated operational voltage
690 V AC
Poles
3P
Display
LCD display
Description

About the NSX630HB2

The Schneider Electric C63W35E630 is a three-pole ComPacT NSX630HB2 moulded case circuit breaker, rated 630 A at 40 °C with a 100 kA breaking capacity at 380/415 V AC and 690 V AC rated operational voltage. It carries a MicroLogic 5.3 E trip unit giving LSI protection, fixed for backplate mounting with front upside and downside connections on a 45 mm pitch.

Certifications & Standards

  • EN/IEC 60947-2

Selection Notes

The HB2 frame keeps a 100 kA breaking capacity even at 690 V AC, making it the choice over the HB1 frame when the 690 V AC circuit demands a higher fault rating. The MicroLogic 5.3 E trip unit adds an adjustable short-time delay and instantaneous pickup from 1.5 to 11 x In, plus zone-selective interlocking and an LCD energy meter, so the breaker can coordinate selectively with downstream devices. Pick the 6.3 E variant instead when ground-fault protection is required, or the 2.3 unit when a simpler, non-communicating trip unit is enough.

Specification

Full specification

95 values · Last verified 30 Oct 2026

Main 20

Range ComPacT
Product name ComPacT NSX
Device short name NSX630HB2
Product or component type Circuit breaker
Device application Distribution
Poles description 3P
Protected poles description 3D
[In] rated current 630 A at 40 °C
[Ue] rated operational voltage 690 V AC 50/60 Hz
Network type AC
Network frequency 50/60 Hz
Suitability for isolation Yes conforming to EN/IEC 60947-2
Utilisation category Category A
Breaking capacity 100 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2, 100 kA Icu at 525 V AC 50/60 Hz conforming to IEC 60947-2, 100 kA Icu at 660/690 V AC 50/60 Hz conforming to IEC 60947-2
Breaking capacity code HB2 100 kA 690 V AC
Trip unit name MicroLogic 5.3 E
Trip unit technology Electronic
Trip unit protection functions LSI
Control type Toggle
Circuit breaker mounting mode Fixed

Complementary 35

[Ui] rated insulation voltage 800 V AC 50/60 Hz
[Uimp] rated impulse withstand voltage 8 kV
[Ics] rated service breaking capacity 100 kA at 500 V AC 50/60 Hz conforming to IEC 60947-2, 100 kA at 525 V AC 50/60 Hz conforming to IEC 60947-2, 100 kA at 660/690 V AC 50/60 Hz conforming to IEC 60947-2
Mechanical durability 15000 cycles
Electrical durability 8000 cycles at 440 V In/2, 4000 cycles at 440 V In, 6000 cycles at 690 V In/2, 2000 cycles at 690 V In
Power dissipation per pole 39.7 W
Mounting support Backplate
Mounting position Horizontal and vertical, Flat on the back
Upside connection Front
Downside connection Front
Connection pitch 45 mm
Protection type L : for overload protection (long time), S : for short time short-circuit protection, I : for instantaneous short-circuit protection
Trip unit rating 630 A at 40 °C
Long-time pick-up adjustment type Ir (thermal protection) Adjustable 9 settings
[Ir] long-time protection pick-up adjustment range 250...630 A
Long-time protection delay adjustment type tr Adjustable
[tr] long-time delay adjustment range 15…400 s at 1.5 x Ir, 0.5…16 s at 6 x Ir, 0.35…11 s at 7.2 x Ir
Thermal memory 20 minutes before and after tripping
Short-time protection pick-up adjustment type Isd Adjustable 9 settings
[Isd] Short-time protection pick-up adjustment range 1.5...10 x Ir
Short-time protection delay adjustment type tsd Adjustable 5 settings
[tsd] short-time delay adjustment range 0…0.4 s I²t=off, 0.1…0.4 s I²t=on
Instantaneous protection pick-up adjustment type Ii Adjustable
[Ii] instantaneous protection pick-up adjustment range 1.5...11 x In
Earth-leakage protection Without
Zone selective interlocking ZSI With
Number of slots 6 slot(s)
Local signalling Flashing LED (green) for ready to operate, LED 105 % Ir (red) for overload, LED 90 % Ir (orange) for overload
Display type LCD display
Type of measurement Energy meter
Communication of data Energy metering, Protection and alarm settings, Time-stamped histories and event tables, Instantaneous and demand values, Power quality, Maintenance indicators, Demand current and power, Maximeters/minimeters
Width (W) 140 mm
Height (H) 255 mm
Depth (D) 110 mm
Net weight 6.2 kg

Environment 10

Standards EN/IEC 60947-2
Overvoltage category III
Electrical shock protection class Class II on front face
Pollution degree 3 conforming to IEC 60664-1
IP degree of protection IP40 conforming to IEC 60529
IK degree of protection IK07 conforming to IEC 62262
Ambient air temperature for operation -25…70 °C
Ambient air temperature for storage -40…85 °C
Relative humidity 0…95 %
Operating altitude 0...2000 m without derating, 2000 m...5000 m with derating
Show all 95 specifications ↓ Show less ↑30 more values in Identification, Contractual warranty, Logistics.

Identification 7

Part number C63W35E630
Type designation NSX630HB2
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production

Contractual warranty 1

Warranty (in months) 18

Logistics 22

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 15.200 cm
Package 1 Width 15.200 cm
Package 1 Length 29.200 cm
Package 1 Weight 5.520 kg
Unit Type of Package 2 S04
Number of Units in Package 2 3
Package 2 Height 30 cm
Package 2 Width 40 cm
Package 2 Length 60 cm
Package 2 Weight 17.210 kg
Unit Type of Package 3 P12
Number of Units in Package 3 12
Package 3 Height 45.000 cm
Package 3 Width 80.000 cm
Package 3 Length 120.000 cm
Package 3 Weight 80.840 kg
Shipping weight 6.2 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for C63W35E630

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • EN/IEC 60947-2
Quick answers

Questions about the NSX630HB2

What is the rated current of NSX630HB2?

The rated current of NSX630HB2 is 630 A.

Which supply voltage is NSX630HB2 rated for?

The rated operational voltage of NSX630HB2 is 690 V AC.

What is the HS code of NSX630HB2 for customs?

The tariff (HS) code on file for NSX630HB2 is 85362090.

Where does NSX630HB2 ship from, and how fast?

NSX630HB2 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
