Part number
C63W32D630
Model no
NSX630HB2
$3,409.81 On request Dispatch — · From TürkiyeGet a Quote

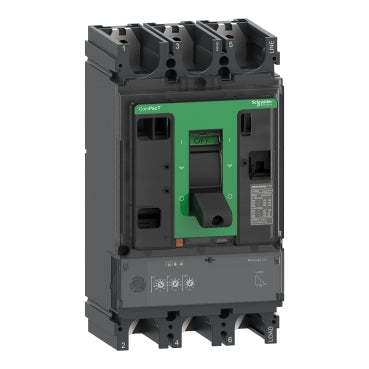

Schneider Electric C63W32D630 ComPacT NSX630HB2 3P 630 A 100 kA MicroLogic 2.3 Moulded Case Circuit Breaker

NSX630HB2 3P 630 A 100 kA MicroLogic 2.3 MCCB, fixed backplate mount.

Rated current
630 A
Rated operational voltage
690 V AC
Poles
3P
Description

About the NSX630HB2

The Schneider Electric C63W32D630 is a three-pole ComPacT NSX630HB2 moulded case circuit breaker, rated 630 A at 40 °C with a 100 kA breaking capacity at 380/415 V AC and 690 V AC rated operational voltage. It carries a MicroLogic 2.3 trip unit giving LSoI protection, fixed for backplate mounting with front upside and downside connections on a 45 mm pitch.

Certifications & Standards

  • EN/IEC 60947-2

Selection Notes

The HB2 frame keeps a 100 kA breaking capacity even at 690 V AC, making it the choice over the HB1 frame when the 690 V AC circuit demands a higher fault rating. The MicroLogic 2.3 trip unit gives fixed long-time and short-time protection plus a non-adjustable instantaneous stage at 6900 A, which suits circuits where settings do not need field tuning. Choose the 5.3 E or 6.3 E variant instead when the installation needs an adjustable short-time delay, zone-selective interlocking, or an integrated energy meter.

Specification

Full specification

79 values · Last verified 30 Oct 2026

Main 20

Range ComPacT
Product name ComPacT NSX
Device short name NSX630HB2
Product or component type Circuit breaker
Device application Distribution
Poles description 3P
Protected poles description 3D
[In] rated current 630 A at 40 °C
[Ue] rated operational voltage 690 V AC 50/60 Hz
Network type AC
Network frequency 50/60 Hz
Suitability for isolation Yes conforming to EN/IEC 60947-2
Utilisation category Category A
Breaking capacity 100 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2, 100 kA Icu at 525 V AC 50/60 Hz conforming to IEC 60947-2, 100 kA Icu at 660/690 V AC 50/60 Hz conforming to IEC 60947-2
Breaking capacity code HB2 100 kA 690 V AC
Trip unit name MicroLogic 2.3
Trip unit technology Electronic
Trip unit protection functions LSoI
Control type Toggle
Circuit breaker mounting mode Fixed

Complementary 31

[Ui] rated insulation voltage 800 V AC 50/60 Hz
[Uimp] rated impulse withstand voltage 8 kV
[Ics] rated service breaking capacity 100 kA at 500 V AC 50/60 Hz conforming to IEC 60947-2, 100 kA at 525 V AC 50/60 Hz conforming to IEC 60947-2, 100 kA at 660/690 V AC 50/60 Hz conforming to IEC 60947-2
Mechanical durability 15000 cycles
Electrical durability 8000 cycles at 440 V In/2, 4000 cycles at 440 V In, 6000 cycles at 690 V In/2, 2000 cycles at 690 V In
Power dissipation per pole 39.7 W
Mounting support Backplate
Mounting position Horizontal and vertical, Flat on the back
Upside connection Front
Downside connection Front
Connection pitch 45 mm
Protection type L : for overload protection (long time), So : for short time short-circuit protection with fixed delay, I : for instantaneous short-circuit protection
Trip unit rating 630 A at 40 °C
Long-time pick-up adjustment type Ir (thermal protection) Adjustable 9 settings
[Ir] long-time protection pick-up adjustment range 250...630 A
Long-time protection delay adjustment type tr Fixed
[tr] long-time delay adjustment range 400 s at 1.5 x Ir, 16 s at 6 x Ir, 11 s at 7.2 x Ir
Thermal memory 20 minutes before and after tripping
Short-time protection pick-up adjustment type Isd Adjustable 9 settings
[Isd] Short-time protection pick-up adjustment range 1.5...10 x Ir
Short-time protection delay adjustment type tsd Fixed
Instantaneous protection pick-up adjustment type Ii Fixed
[Ii] instantaneous protection pick-up adjustment range 6900 A
Earth-leakage protection Without
Zone selective interlocking ZSI Without
Number of slots 6 slot(s)
Local signalling Flashing LED (green) for ready to operate, LED 105 % Ir (red) for overload, LED 90 % Ir (orange) for overload
Width (W) 140 mm
Height (H) 255 mm
Depth (D) 110 mm
Net weight 6.2 kg

Environment 10

Standards EN/IEC 60947-2
Overvoltage category III
Electrical shock protection class Class II on front face
Pollution degree 3 conforming to IEC 60664-1
IP degree of protection IP40 conforming to IEC 60529
IK degree of protection IK07 conforming to IEC 62262
Ambient air temperature for operation -25…70 °C
Ambient air temperature for storage -50…85 °C
Relative humidity 0…95 %
Operating altitude 0...2000 m without derating, 2000 m...5000 m with derating
Show all 79 specifications ↓ Show less ↑18 more values in Identification, Contractual warranty, Logistics.

Identification 7

Part number C63W32D630
Type designation NSX630HB2
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production

Contractual warranty 1

Warranty (in months) 18

Logistics 10

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 15.2 cm
Package 1 Width 15.2 cm
Package 1 Length 29.2 cm
Package 1 Weight 5.751 kg
Shipping weight 6.2 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for C63W32D630

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • EN/IEC 60947-2
Quick answers

Questions about the NSX630HB2

What is the rated current of NSX630HB2?

The rated current of NSX630HB2 is 630 A.

Which supply voltage is NSX630HB2 rated for?

The rated operational voltage of NSX630HB2 is 690 V AC.

What is the HS code of NSX630HB2 for customs?

The tariff (HS) code on file for NSX630HB2 is 85362090.

Where does NSX630HB2 ship from, and how fast?

NSX630HB2 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
