Schneider Electric C63S3TM600D ComPacT NSX600S DC 3P 600 A 100 kA TM-DC Moulded Case Circuit Breaker

% $-1,648.10
Schneider Electric C63S3TM600D ComPacT NSX DC 3P 600 A Moulded Case Circuit Breaker – 750 V DC
Schneider Electric C63S3TM600D ComPacT NSX DC 3P 600 A Moulded Case Circuit Breaker – 750 V DC

Schneider Electric C63S3TM600D ComPacT NSX600S DC 3P 600 A 100 kA TM-DC Moulded Case Circuit Breaker

Brand: Schneider Electric
Reference No: C63S3TM600D
Catalog No: C63S3TM600D
Tariff Code (HS): 853620
Rated Current: 600 A
Breaking Type: TM-DC
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$1,648.10

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

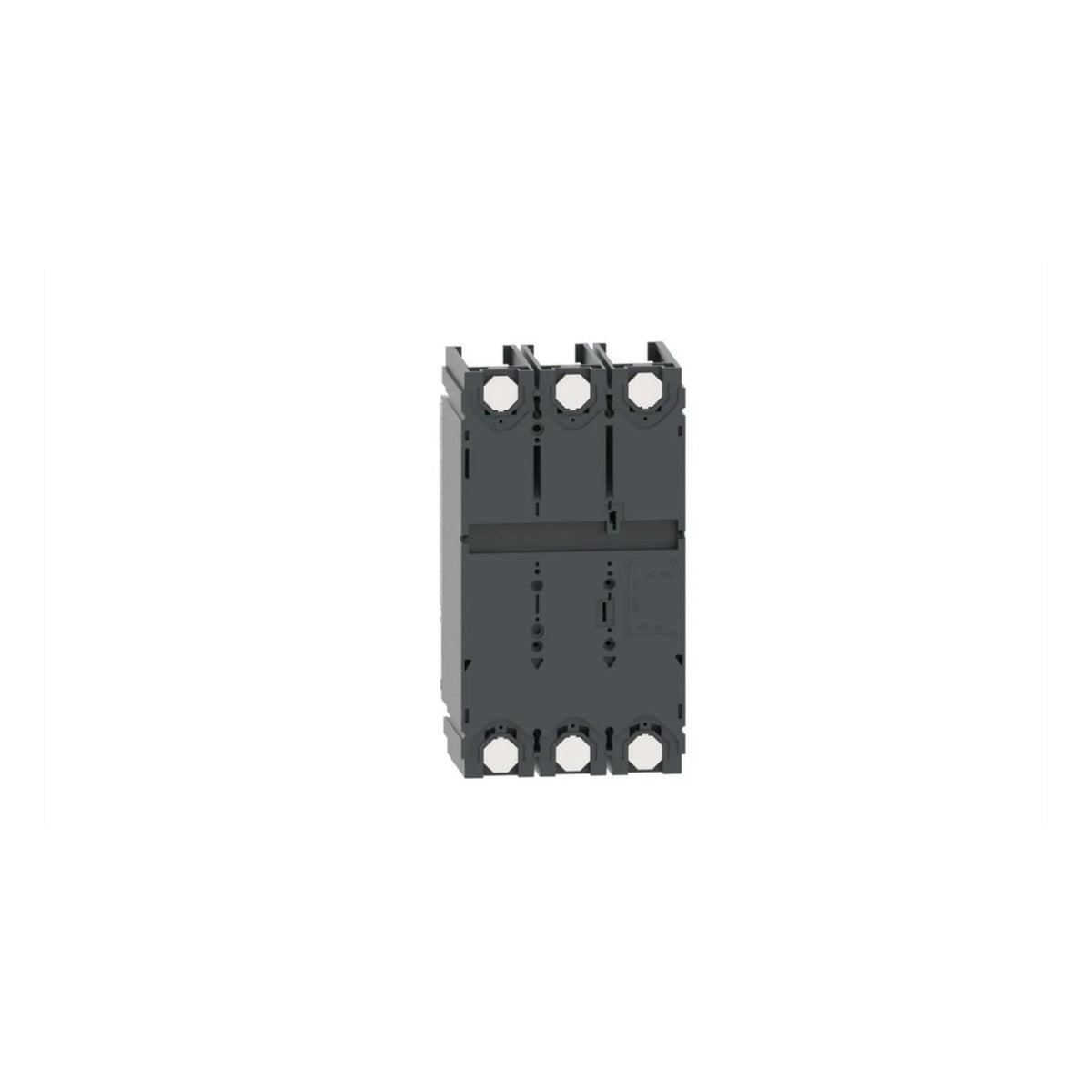

The Schneider Electric C63S3TM600D is a three-pole ComPacT NSX630S DC moulded case circuit breaker rated 600 A at 40 °C and 750 V DC, with a 100 kA breaking capacity across 24 V DC to 750 V DC using one to three poles in series. It carries a TM-DC thermal-magnetic trip unit for adjustable overload and magnetic short-circuit protection, fixed for backplate mounting.

Technical Specifications

Reference C63S3TM600D
GTIN 3606481995087
Brand Schneider Electric
Range ComPacT
Product name ComPacT NSX DC
Device short name NSX630S DC
Product type Molded Case Circuit Breaker (MCCB)
Poles 3P (3D protected poles)
[In] rated current 600 A at 40 °C
[Ue] rated operational voltage 750 V DC
Network type DC
Breaking capacity [Icu] 100 kA at 24…125 V DC (1 pole), 100 kA at 250 V DC (1 pole), 100 kA at 500 V DC (2 poles in series), 100 kA at 750 V DC (3 poles in series), conforming to IEC 60947-2
Service breaking capacity [Ics] Equal to Icu (100%) at every listed voltage tier
[Ui] rated insulation voltage 750 V DC
[Uimp] rated impulse withstand voltage 8 kV
Trip unit TM-DC (Thermal-magnetic, LI)
[Ir] long-time pick-up adjustment 0.7…1 x In
[Ii] instantaneous pick-up adjustment 2.5…5 x In
Control type Toggle
Mounting mode Fixed, backplate
Connections Front upside and downside, 45 mm pitch
Dimensions (W x H x D) 140 mm x 255 mm x 110 mm
Net weight 8.0 kg
IP / IK degree of protection IP40 / IK07
Ambient air temperature (operation / storage) -25…70 °C / -50…85 °C
Country of origin FR
Standard EN/IEC 60947-2

Certifications & Standards

  • EN/IEC 60947-2

Selection Notes

The TM-DC thermal-magnetic trip unit gives an adjustable 0.7…1 x In overload setting and a 2.5…5 x In magnetic trip, sized for DC distribution and DC motor circuits up to 750 V DC using poles in series. Choose the 500 A rating from this frame when the circuit's continuous current falls outside the 600 A adjustment band, and move to the 4-pole version instead when the installation does or does not need a switched neutral conductor.

Technical Details

Short Description
NSX600S DC 3P 600 A 750 V DC TM-DC MCCB, 100 kA breaking capacity.
Rated Current (Ampere)
600 A
Mounting Type
Fixed, backplate
Protection Type
IP40
Catalog No
C63S3TM600D
Delivery Date (Days)
30 days
Model Number
NSX630S DC
Tariff Code
853620
