Schneider Electric C63R46E630 ComPacT NSX630R 4P 630 A 200 kA MicroLogic 6.3 E Moulded Case Circuit Breaker

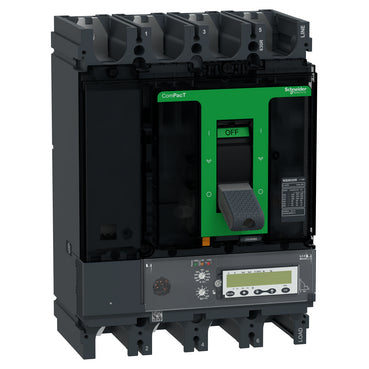

The Schneider Electric C63R46E630 is a four-pole ComPacT NSX630R moulded case circuit breaker, rated 630 A at 40 °C with a 200 kA breaking capacity at 380/415 V AC and 690 V AC rated operational voltage. It carries a MicroLogic 6.3 E trip unit giving LSIG protection, fixed for backplate mounting with front upside and downside connections on a 45 mm pitch.

Technical Specifications

Certifications & Standards

• EN/IEC 60947-2

Selection Notes

On the R frame, the 200 kA breaking capacity at 380/415 V AC covers standard distribution boards without needing a higher-rated frame. The MicroLogic 6.3 E trip unit adds adjustable ground-fault protection, with its own time delay, on top of the long-time, short-time and instantaneous stages, the choice when earth-fault discrimination is required upstream. The 5.3 E variant covers the same long-time, short-time and instantaneous functions without ground-fault protection, and the 2.3 unit is the fixed-settings baseline.
