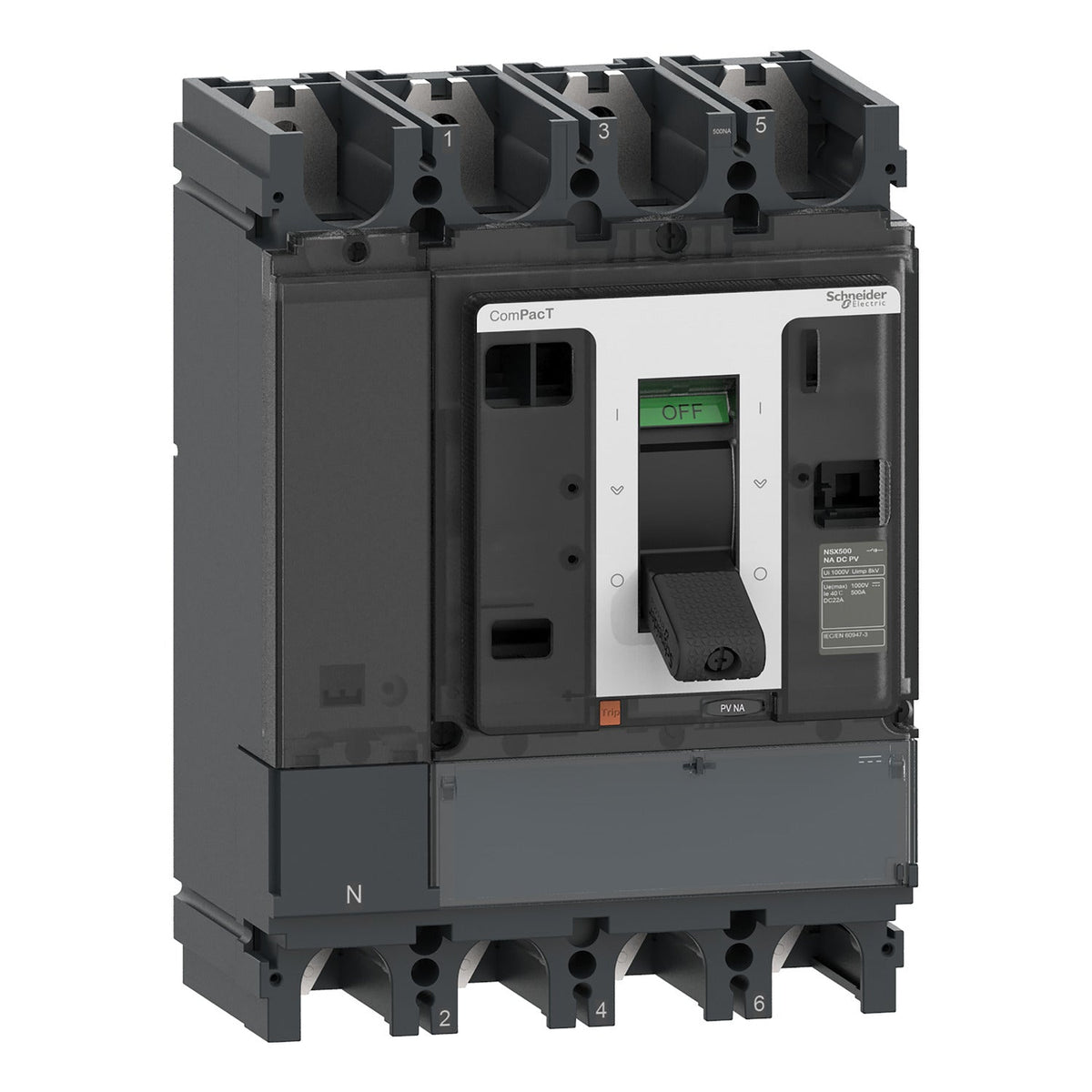

Schneider Electric C634500D1S ComPacT NSX500NA DC PV 4P 500 A 1000 V DC Fixed Switch Disconnector

The C634500D1S is a Schneider Electric ComPacT NSX500NA DC PV 4-pole DC switch-disconnector rated 500 A at 1000 V DC (utilisation category DC-22A), built to isolate and control photovoltaic DC distribution circuits. It carries a 6 kA, 1 s short-time withstand current and is suitable for isolation to EN/IEC 60947-3.

Technical Specifications

Certifications & Standards

• EN/IEC 60947-1
• EN/IEC 60947-3

Selection Notes

C634500D1S has no trip unit — it switches and isolates the DC circuit on command but does not provide overcurrent protection, so it is specified alongside a DC moulded case circuit breaker or DC fuse for fault clearing, not in place of one. The 500 A Ie at 1000 V DC and DC-22A utilisation category make it suited to PV combiner or string-inverter isolation points where frequent on-load switching is expected. Its 6 kA Icw / Icm rating sets the upstream protective device's let-through limit for coordinated protection.
