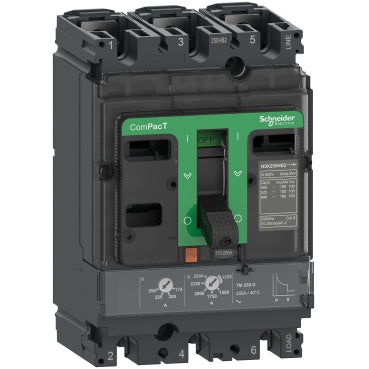

Schneider Electric C25V3TM125 ComPacT NSX250HB1 3P 125 A 75 kA TM-D Fixed Moulded Case Circuit Breaker

% $-725.44
Schneider Electric C25V3TM125 ComPacT NSX250HB1 3P 125 A 75 kA TM-D Fixed Moulded Case Circuit Breaker
Schneider Electric C25V3TM125 ComPacT NSX250HB1 3P 125 A 75 kA TM-D Fixed Moulded Case Circuit Breaker

Schneider Electric C25V3TM125 ComPacT NSX250HB1 3P 125 A 75 kA TM-D Fixed Moulded Case Circuit Breaker

Brand: Schneider Electric
Reference No: C25V3TM125
Catalog No: C25V3TM125
Tariff Code (HS): 85362090
Rated Current: 125 A
Breaking Type: TM-D
Rated Voltage: 690 V AC
Poles: 3P
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$725.44

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric C25V3TM125 is a 3-pole ComPacT NSX250HB1 moulded case circuit breaker rated 125 A on a TM-D thermal-magnetic trip unit, built on the HB1 690 V AC frame. Breaking capacity (Icu) is 75 kA at 660/690 V AC and 85 kA at 500 V AC, against a 690 V AC rated operational voltage, for LV distribution at the top of the 690 V band.

Technical Specifications

Reference C25V3TM125
Brand Schneider Electric
Range ComPacT
Device Short Name NSX250HB1
Product Type Circuit breaker
Poles 3P
Protected Poles 3D
[In] Rated Current 125 A at 40 °C
[Ue] Rated Operational Voltage 690 V AC 50/60 Hz
[Ui] Rated Insulation Voltage 800 V AC
[Uimp] Rated Impulse Withstand Voltage 8 kV
Breaking Capacity [Icu] 85 kA at 500 V AC, 80 kA at 525 V AC, 75 kA at 660/690 V AC (IEC 60947-2)
Service Breaking Capacity [Ics] 85 kA at 500 V AC, 80 kA at 525 V AC, 75 kA at 660/690 V AC
Trip Unit TM-D, thermal-magnetic, LI
[Ir] Long-Time Pick-up Range 0.7...1 x In (adjustable)
[Ii] Instantaneous Pick-up Range 1250 A (fixed)
Suitability For Isolation Yes (EN/IEC 60947-2)
Mounting Mode Fixed
Connection Front (upside and downside)
Dimensions (W x H x D) 105 x 161 x 86 mm
Net Weight 2.4 kg
IP Degree Of Protection IP40 (IEC 60529)
Ambient Air Temperature For Operation -25...70 °C

Certifications & Standards

  • EN/IEC 60947-2

Selection Notes

The HB1 frame is rated specifically for the 500-690 V AC band (85 kA at 500 V, 75 kA at 690 V) rather than the lower 220-440 V band the standard NSX250R covers, so it is the frame to specify on 690 V AC distribution rather than a derated 415 V breaker. Pick a different trip-current sibling in the same HB1 series to match load current, or step up to the HB2 (NSX250HB2) frame where 690 V breaking capacity above 75 kA is required.

Technical Details

Short Description
ComPacT NSX250HB1 MCCB, 3P 125 A, 75 kA at 690 V AC, TM-D trip unit.
Rated Current (Ampere)
125 A
Rated Voltage (VAC)
690 V AC
Mounting Type
Fixed
Protection Type
IP40
Catalog No
C25V3TM125
Number of Poles
3P
Delivery Date (Days)
30 days
Model Number
NSX250HB1
Tariff Code
85362090
