Schneider Electric C25R3TM160 ComPacT NSX250R 3P 160 A 200 kA TM-D Fixed Moulded Case Circuit Breaker

% $-650.73
Schneider Electric C25R3TM160 ComPacT NSX250R 3P 160 A Moulded Case Circuit Breaker - 200 kA
Schneider Electric C25R3TM160 ComPacT NSX250R 3P 160 A Moulded Case Circuit Breaker - 200 kA

Schneider Electric C25R3TM160 ComPacT NSX250R 3P 160 A 200 kA TM-D Fixed Moulded Case Circuit Breaker

Brand: Schneider Electric
Reference No: C25R3TM160
Catalog No: C25R3TM160
Tariff Code (HS): 85362090
Rated Current: 160 A
Breaking Type: TM-D
Rated Voltage: 690 V AC
Poles: 3P
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$650.73

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

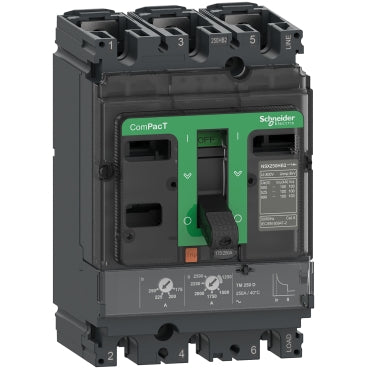

The Schneider Electric C25R3TM160 is a 3-pole ComPacT NSX250R moulded case circuit breaker rated 160 A on a TM-D thermal-magnetic trip unit. Breaking capacity (Icu) reaches 200 kA at 380/415 V AC and 45 kA at 660/690 V AC, with a 690 V AC rated operational voltage, giving the R frame the highest breaking capacity in the NSX250 line for demanding fault-current locations.

Technical Specifications

Reference C25R3TM160
Brand Schneider Electric
Range ComPacT
Device Short Name NSX250R
Product Type Circuit breaker
Poles 3P
Protected Poles 3D
[In] Rated Current 160 A at 40 °C
[Ue] Rated Operational Voltage 690 V AC 50/60 Hz
[Ui] Rated Insulation Voltage 800 V AC
[Uimp] Rated Impulse Withstand Voltage 8 kV
Breaking Capacity [Icu] 200 kA at 220/240 V AC, 200 kA at 380/415 V AC, 200 kA at 440 V AC, 80 kA at 500 V AC, 65 kA at 525 V AC, 45 kA at 660/690 V AC (IEC 60947-2)
Service Breaking Capacity [Ics] 200 kA at 220/240 V AC, 200 kA at 380/415 V AC, 200 kA at 440 V AC, 80 kA at 500 V AC, 65 kA at 525 V AC, 45 kA at 660/690 V AC
Trip Unit TM-D, thermal-magnetic, LI
[Ir] Long-Time Pick-up Range 0.7...1 x In (adjustable)
[Ii] Instantaneous Pick-up Range 1250 A (fixed)
Suitability For Isolation Yes (EN/IEC 60947-2)
Mounting Mode Fixed
Connection Front (upside and downside)
Dimensions (W x H x D) 105 x 161 x 86 mm
Net Weight 2.4 kg
IP Degree Of Protection IP40 (IEC 60529)
Ambient Air Temperature For Operation -25...70 °C

Certifications & Standards

  • EN/IEC 60947-2

Selection Notes

At 200 kA Icu and 45 kA at 660/690 V AC, the NSX250R is the high-breaking-capacity option in the NSX250 TM-D line and suits incomers or feeders close to the transformer where prospective fault current is highest. The 160 A trip unit sits in the lower band of the R-frame range, where the instantaneous trip is factory-fixed at 1250 A; pick a higher or lower trip rating from the same NSX250R series to match the downstream load without changing the breaking capacity.

Technical Details

Short Description
ComPacT NSX250R MCCB, 3P 160 A, 200 kA at 415 V AC, 45 kA at 690 V AC, TM-D trip unit.
Rated Current (Ampere)
160 A
Rated Voltage (VAC)
690 V AC
Mounting Type
Fixed
Protection Type
IP40
Catalog No
C25R3TM160
Number of Poles
3P
Delivery Date (Days)
30 days
Model Number
NSX250R
Tariff Code
85362090
