Schneider Electric C25N3MA220 ComPacT NSX250N 3P 220 A 50 kA MA Fixed Moulded Case Circuit Breaker

% $-266.10

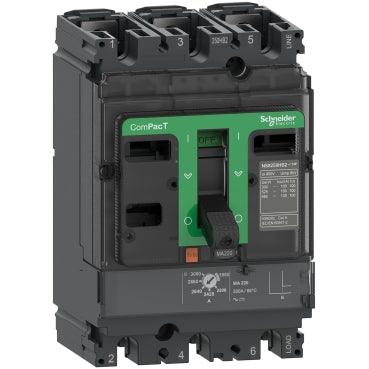

Schneider Electric C25N3MA220 NSX250N moulded case circuit breaker – 3P 220A MA 50kA
Schneider Electric C25N3MA220 NSX250N moulded case circuit breaker – 3P 220A MA 50kA

Schneider Electric C25N3MA220 ComPacT NSX250N 3P 220 A 50 kA MA Fixed Moulded Case Circuit Breaker

Brand: Schneider Electric
Reference No: C25N3MA220
Catalog No: C25N3MA220
Tariff Code (HS): 85362090
Rated Current: 220 A
Breaking Type: MA
Rated Voltage: 690 V
Poles: 3P
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$266.10

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The C25N3MA220 is a 3-pole Schneider Electric ComPacT NSX250N moulded case circuit breaker with a 220 A magnetic-only MA trip unit and 50 kA breaking capacity (Icu) at 380/415 V AC. Rated operational voltage (Ue) is 690 V AC. Built for motor protection, it provides instantaneous short-circuit tripping only, at a net weight of 2.4 kg.

Technical Specifications

SKU / Reference C25N3MA220
Brand Schneider Electric
Range ComPacT NSX
Series NSX250N
Device application Motor protection
Poles 3P (3D protected)
[In] Rated current 220 A at 65 °C
[Ue] Rated operational voltage 690 V AC 50/60 Hz
[Ui] Rated insulation voltage 800 V AC 50/60 Hz
[Uimp] Rated impulse withstand voltage 8 kV
[Icu] Breaking capacity 90 kA at 220/240 V AC, 50 kA at 380/415 V AC, 50 kA at 440 V AC, 36 kA at 500 V AC, 35 kA at 525 V AC, 10 kA at 660/690 V AC
[Ics] Service breaking capacity 90 kA at 220/240 V AC, 50 kA at 380/415 V AC, 50 kA at 440 V AC, 36 kA at 500 V AC, 35 kA at 525 V AC, 10 kA at 660/690 V AC
Trip unit MA (magnetic only)
Protection functions I (instantaneous short-circuit only)
[Isd]/[Ii] Instantaneous pick-up adjustment range 9...14 x In, adjustable (9 settings)
Control type Toggle
Mounting mode Fixed
Connection Front upside, front downside, 35 mm pitch
Dimensions (W x H x D) 105 x 161 x 86 mm
Net weight 2.4 kg
IP / IK degree IP40 / IK07
Pollution degree 3, conforming to IEC 60664-1
Ambient temperature (operation / storage) -25…70 °C / -50…85 °C

Certifications & Standards

  • EN/IEC 60947-2

Selection Notes

Against the H-rated MA220 breaker in the same NSX250 frame, the C25N3MA220's N performance level trades 20 kA of Icu headroom (50 kA versus 70 kA) for a lower-cost option on motor circuits whose fault current does not need the H frame's extra margin. Like every MA trip unit in this range it has no thermal element, so a downstream overload relay or motor controller is required to complete the protection scheme.

Technical Details

Short Description
Schneider Electric C25N3MA220 ComPacT NSX250N 3P 220A MA, 50 kA at 415 V AC.
Rated Current (Ampere)
220 A
Rated Voltage (VAC)
690 V
Mounting Type
Fixed
Protection Type
IP40
Catalog No
C25N3MA220
Number of Poles
3P
Delivery Date (Days)
30 days
Model Number
NSX250N
Tariff Code
85362090
