Schneider Electric C25N32D250 ComPacT NSX250N 3P 250 A 50 kA MicroLogic 2.2 Fixed Moulded Case Circuit Breaker

% $-396.37
Schneider Electric C25N32D250 NSX250N moulded case circuit breaker – 3P 250A MicroLogic 2.2
Schneider Electric C25N32D250 NSX250N moulded case circuit breaker – 3P 250A MicroLogic 2.2

Schneider Electric C25N32D250 ComPacT NSX250N 3P 250 A 50 kA MicroLogic 2.2 Fixed Moulded Case Circuit Breaker

Brand: Schneider Electric
Reference No: C25N32D250
Catalog No: C25N32D250
Tariff Code (HS): 85362090
Rated Current: 250 A
Breaking Type: MicroLogic 2.2
Rated Voltage: 690 V
Poles: 3P
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$396.37

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

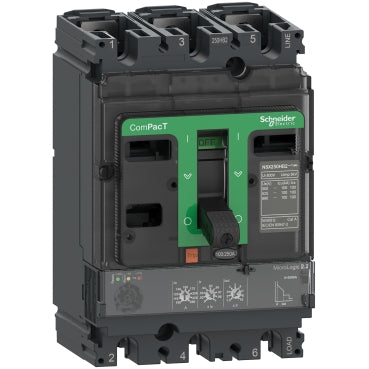

The C25N32D250 is a 3-pole Schneider Electric ComPacT NSX250N moulded case circuit breaker rated 250 A, with an electronic MicroLogic 2.2 trip unit and 50 kA breaking capacity (Icu) at 380/415 V AC. Rated operational voltage (Ue) is 690 V AC. The MicroLogic 2.2 adds adjustable long-time and short-time protection on top of the fixed instantaneous stage.

Technical Specifications

SKU / Reference C25N32D250
Brand Schneider Electric
Range ComPacT NSX
Series NSX250N
Device application Distribution
Poles 3P (3D protected)
[In] Rated current 250 A at 40 °C
[Ue] Rated operational voltage 690 V AC 50/60 Hz
[Ui] Rated insulation voltage 800 V AC 50/60 Hz
[Uimp] Rated impulse withstand voltage 8 kV
[Icu] Breaking capacity 90 kA at 220/240 V AC, 50 kA at 380/415 V AC, 50 kA at 440 V AC, 36 kA at 500 V AC, 35 kA at 525 V AC, 10 kA at 660/690 V AC
[Ics] Service breaking capacity 90 kA at 220/240 V AC, 50 kA at 380/415 V AC, 50 kA at 440 V AC, 36 kA at 500 V AC, 35 kA at 525 V AC, 10 kA at 660/690 V AC
Trip unit MicroLogic 2.2 (electronic)
Protection functions LSoI (long-time, short-time fixed delay, instantaneous)
[Ir] Long-time pick-up adjustment range 100...250 A, adjustable (9 settings)
[Isd] Short-time pick-up adjustment range 1.5...10 x Ir, adjustable (9 settings)
[Ii] Instantaneous pick-up 3000 A, fixed
Control type Toggle
Mounting mode Fixed
Connection Front upside, front downside, 35 mm pitch
Dimensions (W x H x D) 105 x 161 x 86 mm
Net weight 2.4 kg
IP / IK degree IP40 / IK07
Pollution degree 3, conforming to IEC 60664-1
Ambient temperature (operation / storage) -25…70 °C / -50…85 °C

Certifications & Standards

  • EN/IEC 60947-2

Selection Notes

The C25N32D250's 100...250 A long-time adjustment lets the breaker be set below its 250 A frame rating to match the feeder cable, and the 1.5...10 x Ir short-time delay gives it the selective-coordination stage that the TM-D breakers in this NSX250 range lack. Where that short-time stage is not needed, the TM-D 250 A variant in the H-rated 70 kA frame covers the same current with simpler, non-electronic protection and higher Icu.

Technical Details

Short Description
Schneider Electric C25N32D250 ComPacT NSX250N 3P 250A MicroLogic 2.2, 50 kA at 415 V AC.
Rated Current (Ampere)
250 A
Rated Voltage (VAC)
690 V
Mounting Type
Fixed
Protection Type
IP40
Catalog No
C25N32D250
Number of Poles
3P
Delivery Date (Days)
30 days
Model Number
NSX250N
Tariff Code
85362090

Downloads

Customers say

Pairs well with

Related products
