Schneider Electric C25H32M220 ComPacT NSX250H 3P 220 A 70 kA MicroLogic 2.2 M Moulded Case Circuit Breaker

% $-419.58
Schneider Electric C25H32M220 NSX250H moulded case circuit breaker – 3P 220A MicroLogic 2.2 M
Schneider Electric C25H32M220 NSX250H moulded case circuit breaker – 3P 220A MicroLogic 2.2 M

Schneider Electric C25H32M220 ComPacT NSX250H 3P 220 A 70 kA MicroLogic 2.2 M Moulded Case Circuit Breaker

Brand: Schneider Electric
Reference No: C25H32M220
Catalog No: C25H32M220
Tariff Code (HS): 853620
Rated Current: 220 A
Breaking Type: MicroLogic 2.2 M
Rated Voltage: 690 V
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$419.58

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

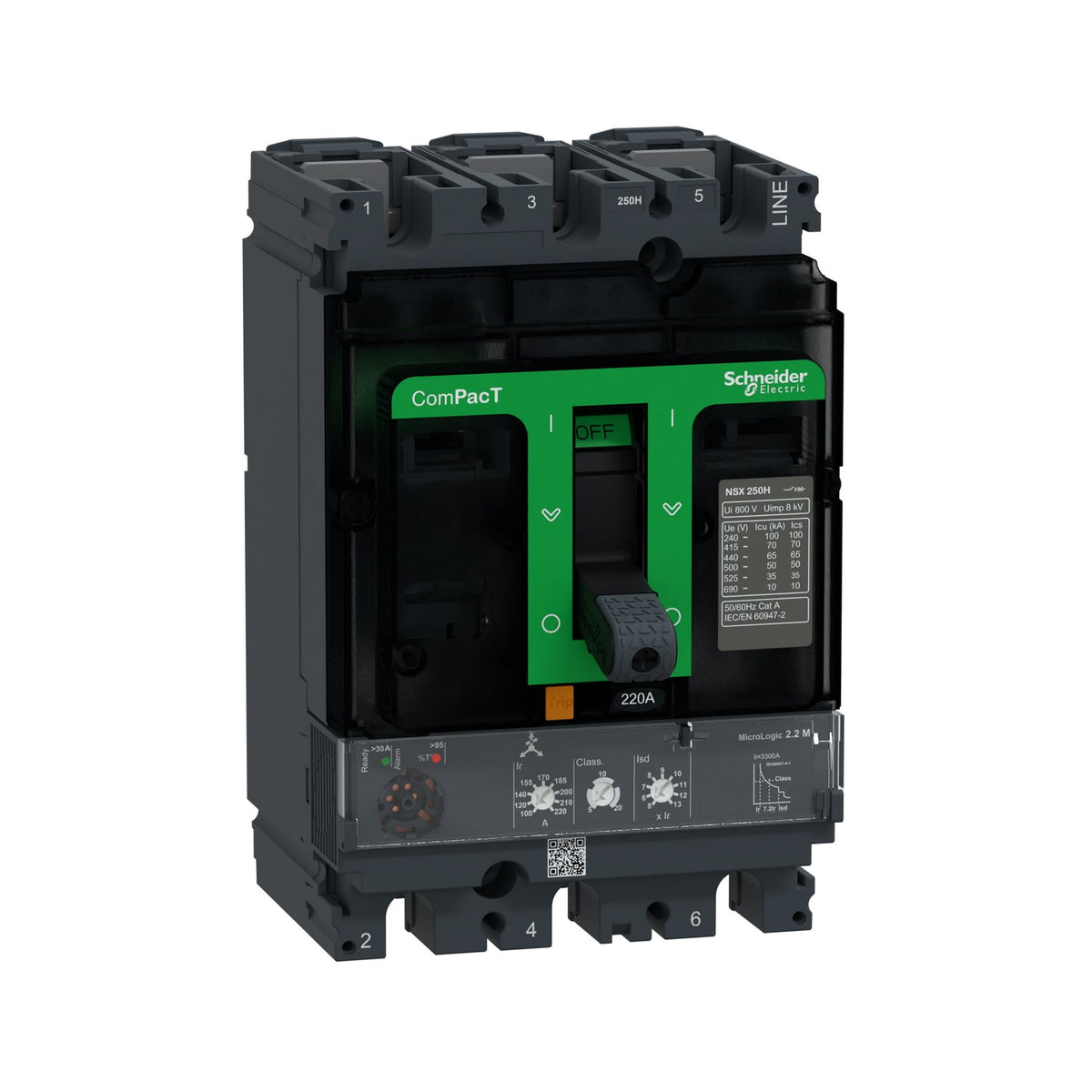

The C25H32M220 is a 3-pole Schneider Electric ComPacT NSX250H moulded case circuit breaker rated 220 A, with an electronic MicroLogic 2.2 M trip unit for motor protection and 70 kA breaking capacity (Icu) at 380/415 V AC. Rated operational voltage (Ue) is 690 V AC. The M trip variant adds motor-specific tripping classes on top of the standard MicroLogic 2.2 curve.

Technical Specifications

SKU / Reference C25H32M220
Brand Schneider Electric
Range ComPacT NSX
Series NSX250H
Device application Motor protection
Poles 3P (3D protected)
[In] Rated current 220 A at 65 °C
[Ue] Rated operational voltage 690 V AC 50/60 Hz
[Ui] Rated insulation voltage 800 V AC 50/60 Hz
[Uimp] Rated impulse withstand voltage 8 kV
[Icu] Breaking capacity 100 kA at 220/240 V AC, 70 kA at 380/415 V AC, 65 kA at 440 V AC, 50 kA at 500 V AC, 35 kA at 525 V AC, 10 kA at 660/690 V AC
[Ics] Service breaking capacity 100 kA at 220/240 V AC, 70 kA at 380/415 V AC, 65 kA at 440 V AC, 50 kA at 500 V AC, 35 kA at 525 V AC, 10 kA at 660/690 V AC
Trip unit MicroLogic 2.2 M (electronic, motor protection)
Protection functions LSoI (long-time, short-time fixed delay, instantaneous)
[Ir] Long-time pick-up adjustment range 100...220 A, adjustable (9 settings)
[Isd] Short-time pick-up adjustment range 5...13 x Ir, adjustable (9 settings)
[Ii] Instantaneous pick-up 3300 A, fixed
Control type Toggle
Mounting mode Fixed
Connection Front upside, front downside, 35 mm pitch
Dimensions (W x H x D) 105 x 161 x 86 mm
Net weight 2.4 kg
IP / IK degree IP40 / IK07
Pollution degree 3, conforming to IEC 60664-1
Ambient temperature (operation / storage) -25…70 °C / -50…85 °C

Certifications & Standards

  • EN/IEC 60947-2

Selection Notes

Against the fixed-setting MA220 motor-protection breaker in the same NSX250H frame, the C25H32M220's MicroLogic 2.2 M trip unit adds an adjustable 100...220 A long-time stage and a short-time delay (Isd), giving selective coordination with downstream devices that the MA unit's instantaneous-only protection cannot provide. Choose the MA220 instead where a simpler, non-electronic magnetic-only trip is preferred for the same motor-protection duty.

Technical Details

Short Description
Schneider Electric C25H32M220 ComPacT NSX250H 3P 220A MicroLogic 2.2 M, 70 kA at 415 V AC.
Rated Current (Ampere)
220 A
Rated Voltage (VAC)
690 V
Mounting Type
Fixed
Protection Type
IP40
Catalog No
C25H32M220
Delivery Date (Days)
30 days
Model Number
NSX250H
Tariff Code
853620
