Schneider Electric C16S2TM125 ComPacT NSX160S 2P 125 A 70 kA TM-D Fixed Moulded Case Circuit Breaker

% $-202.50

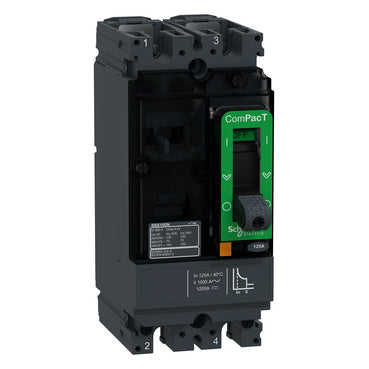

Schneider Electric C16S2TM125 NSX160S AC/DC moulded case circuit breaker – 2P 125A 70kA
Schneider Electric C16S2TM125 NSX160S AC/DC moulded case circuit breaker – 2P 125A 70kA

Schneider Electric C16S2TM125 ComPacT NSX160S 2P 125 A 70 kA TM-D Fixed Moulded Case Circuit Breaker

Brand: Schneider Electric
Reference No: C16S2TM125
Catalog No: C16S2TM125
Tariff Code (HS): 85362090
Rated Current: 125 A
Breaking Type: TM-D
Rated Voltage: 690 V
Poles: 2P
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$202.50

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The C16S2TM125 is a 2-pole Schneider Electric ComPacT NSX160S AC/DC moulded case circuit breaker rated 125 A, with a TM-D thermal-magnetic trip unit and 70 kA breaking capacity (Icu) at 380/415 V AC. It is dual-rated for 690 V AC or 500 V DC with both poles in series, with Ue given as 690 V AC on the AC side.

Technical Specifications

SKU / Reference C16S2TM125
Brand Schneider Electric
Range ComPacT NSX
Series NSX160S AC/DC
Device application Distribution
Poles 2P (2D protected)
[In] Rated current 125 A at 40 °C
[Ue] Rated operational voltage 690 V AC 50/60 Hz | 500 V DC
[Ui] Rated insulation voltage 750 V AC 50/60 Hz
[Uimp] Rated impulse withstand voltage 8 kV
[Icu] Breaking capacity (AC) 100 kA at 220/240 V AC, 70 kA at 380/415 V AC (1P), 65 kA at 440 V AC (1P), 35 kA at 500/525 V AC (2P), 10 kA at 660/690 V AC
[Icu] Breaking capacity (DC) 100 kA at 250 V DC (1 pole), 100 kA at 500 V DC (2 poles in series)
[Ics] Service breaking capacity (AC) 100 kA at 220/240 V AC, 70 kA at 380/415 V AC, 65 kA at 440 V AC, 35 kA at 500/525 V AC, 10 kA at 660/690 V AC
Trip unit TM-D (thermal-magnetic)
Protection functions LI
[Ir] Long-time pick-up 1 x In, fixed
[Ii] Instantaneous pick-up 1000 A, fixed
Control type Toggle
Mounting mode Fixed
Connection Front upside, front downside, 35 mm pitch
Dimensions (W x H x D) 70 x 161 x 86 mm
Net weight 1.2 kg
IP / IK degree IP40 / IK07
Pollution degree 3, conforming to IEC 60664-1
Ambient temperature (operation / storage) -25…70 °C / -50…85 °C

Certifications & Standards

  • EN/IEC 60947-2

Selection Notes

The S frame gives the C16S2TM125 the highest Icu of any 2-pole NSX160 AC/DC breaker in this range — 70 kA at 415 V AC against the M frame's 25 kA, for the same 125 A current and 70 x 161 x 86 mm body. On DC duty its Icu reaches 100 kA at both 250 V (1 pole) and 500 V (2 poles in series), the highest DC figure in the 2-pole NSX160 line. Pick it over the lower-kA 2-pole frames whenever the branch circuit's prospective fault current demands the extra margin.

Technical Details

Short Description
Schneider Electric C16S2TM125 ComPacT NSX160S 2P 125A TM-D AC/DC, 70 kA at 415 V AC.
Rated Current (Ampere)
125 A
Rated Voltage (VAC)
690 V
Mounting Type
Fixed
Protection Type
IP40
Catalog No
C16S2TM125
Number of Poles
2P
Delivery Date (Days)
30 days
Model Number
NSX160S
Tariff Code
85362090
