Schneider Electric C16N6TM125 ComPacT NSX160N 4P 125 A 50 kA TM-D Fixed Moulded Case Circuit Breaker

% $-401.30
Schneider Electric C16N6TM125 NSX160N moulded case circuit breaker – 4P 125A 50kA
Schneider Electric C16N6TM125 NSX160N moulded case circuit breaker – 4P 125A 50kA

Schneider Electric C16N6TM125 ComPacT NSX160N 4P 125 A 50 kA TM-D Fixed Moulded Case Circuit Breaker

Brand: Schneider Electric
Reference No: C16N6TM125
Catalog No: C16N6TM125
Tariff Code (HS): 85362090
Rated Current: 125 A
Breaking Type: TM-D
Rated Voltage: 690 V
Poles: 4P
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$401.30

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

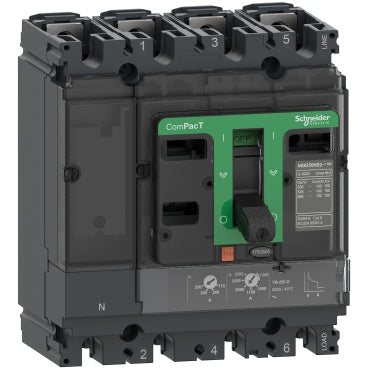

The C16N6TM125 is a 4-pole (3D, neutral unprotected) Schneider Electric ComPacT NSX160N moulded case circuit breaker rated 125 A, with a TM-D thermal-magnetic trip unit and 50 kA breaking capacity (Icu) at 380/415 V AC. Rated operational voltage (Ue) is 690 V AC. It switches the neutral alongside the three protected phases.

Technical Specifications

SKU / Reference C16N6TM125
Brand Schneider Electric
Range ComPacT NSX
Series NSX160N
Device application Distribution
Poles 4P (3D protected, neutral left unprotected)
[In] Rated current 125 A at 40 °C
[Ue] Rated operational voltage 690 V AC 50/60 Hz
[Ui] Rated insulation voltage 800 V AC 50/60 Hz
[Uimp] Rated impulse withstand voltage 8 kV
[Icu] Breaking capacity 90 kA at 220/240 V AC, 50 kA at 380/415 V AC, 50 kA at 440 V AC, 36 kA at 500 V AC, 35 kA at 525 V AC, 10 kA at 660/690 V AC
[Ics] Service breaking capacity 90 kA at 220/240 V AC, 50 kA at 380/415 V AC, 50 kA at 440 V AC, 36 kA at 500 V AC, 35 kA at 525 V AC, 10 kA at 660/690 V AC
Trip unit TM-D (thermal-magnetic)
Protection functions LI
[Ir] Long-time pick-up adjustment 0.7...1 x In, adjustable
[Ii] Instantaneous pick-up 1250 A, fixed
Control type Toggle
Mounting mode Fixed
Connection Front upside, front downside, 35 mm pitch
Dimensions (W x H x D) 140 x 161 x 86 mm
Net weight 2.6 kg
IP / IK degree IP40 / IK07
Pollution degree 3, conforming to IEC 60664-1
Ambient temperature (operation / storage) -25…70 °C / -50…85 °C

Certifications & Standards

  • EN/IEC 60947-2

Selection Notes

The C16N6TM125 brings the N frame's 50 kA Icu to a 4-pole board switching the neutral, roughly midway between the F-rated 36 kA and H-rated 70 kA 4-pole NSX160 breakers at the same 125 A current. As a 3D breaker it switches but does not protect the neutral; a design requiring a thermally protected neutral needs a different 4D configuration. The 0.7...1 x In adjustable thermal setting still allows tuning below the 125 A frame rating.

Technical Details

Short Description
Schneider Electric C16N6TM125 ComPacT NSX160N 4P 125A TM-D, 50 kA at 415 V AC.
Rated Current (Ampere)
125 A
Rated Voltage (VAC)
690 V
Mounting Type
Fixed
Protection Type
IP40
Catalog No
C16N6TM125
Number of Poles
4P
Delivery Date (Days)
30 days
Model Number
NSX160N
Tariff Code
85362090
