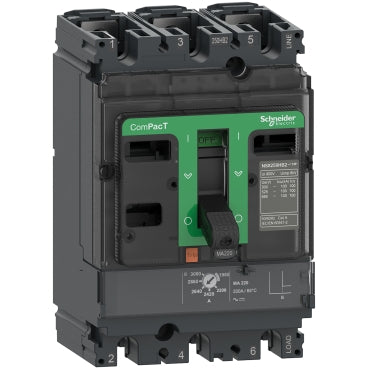

Schneider Electric C16N3MA150 ComPacT NSX160N 3P 150 A 50 kA MA Fixed Moulded Case Circuit Breaker

% $-213.01
Schneider Electric C16N3MA150 NSX160N moulded case circuit breaker – 3P 150A MA 50kA
Schneider Electric C16N3MA150 NSX160N moulded case circuit breaker – 3P 150A MA 50kA

Schneider Electric C16N3MA150 ComPacT NSX160N 3P 150 A 50 kA MA Fixed Moulded Case Circuit Breaker

Brand: Schneider Electric
Reference No: C16N3MA150
Catalog No: C16N3MA150
Tariff Code (HS): 85362090
Rated Current: 150 A
Breaking Type: MA
Rated Voltage: 690 V
Poles: 3P
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$213.01

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The C16N3MA150 is a 3-pole Schneider Electric ComPacT NSX160N moulded case circuit breaker with a 150 A magnetic-only MA trip unit and 50 kA breaking capacity (Icu) at 380/415 V AC. Rated operational voltage (Ue) is 690 V AC. The N performance level sits between the 36 kA F frame and 70 kA H frame in this same NSX160 body.

Technical Specifications

SKU / Reference C16N3MA150
Brand Schneider Electric
Range ComPacT NSX
Series NSX160N
Device application Motor protection
Poles 3P (3D protected)
[In] Rated current 150 A at 65 °C
[Ue] Rated operational voltage 690 V AC 50/60 Hz
[Ui] Rated insulation voltage 800 V AC 50/60 Hz
[Uimp] Rated impulse withstand voltage 8 kV
[Icu] Breaking capacity 90 kA at 220/240 V AC, 50 kA at 380/415 V AC, 50 kA at 440 V AC, 36 kA at 500 V AC, 35 kA at 525 V AC, 10 kA at 660/690 V AC
[Ics] Service breaking capacity 90 kA at 220/240 V AC, 50 kA at 380/415 V AC, 50 kA at 440 V AC, 36 kA at 500 V AC, 35 kA at 525 V AC, 10 kA at 660/690 V AC
Trip unit MA (magnetic only)
Protection functions I (instantaneous short-circuit only)
[Isd]/[Ii] Instantaneous pick-up adjustment range 9...14 x In, adjustable (9 settings)
Control type Toggle
Mounting mode Fixed
Connection Front upside, front downside, 35 mm pitch
Dimensions (W x H x D) 105 x 161 x 86 mm
Net weight 2.2 kg
IP / IK degree IP40 / IK07
Pollution degree 3, conforming to IEC 60664-1
Ambient temperature (operation / storage) -25…70 °C / -50…85 °C

Certifications & Standards

  • EN/IEC 60947-2

Selection Notes

The C16N3MA150's 50 kA Icu covers motor circuits with fault current beyond the F-rated 36 kA frame's range but does not need the H frame's 70 kA headroom — useful where the extra breaking capacity of the H frame adds cost without a corresponding need. As an MA trip unit it protects against short-circuit only; running overload protection has to come from a separate thermal relay or motor controller downstream, same as the F- and H-rated MA variants in this range.

Technical Details

Short Description
Schneider Electric C16N3MA150 ComPacT NSX160N 3P 150A MA, 50 kA at 415 V AC.
Rated Current (Ampere)
150 A
Rated Voltage (VAC)
690 V
Mounting Type
Fixed
Protection Type
IP40
Catalog No
C16N3MA150
Number of Poles
3P
Delivery Date (Days)
30 days
Model Number
NSX160N
Tariff Code
85362090
